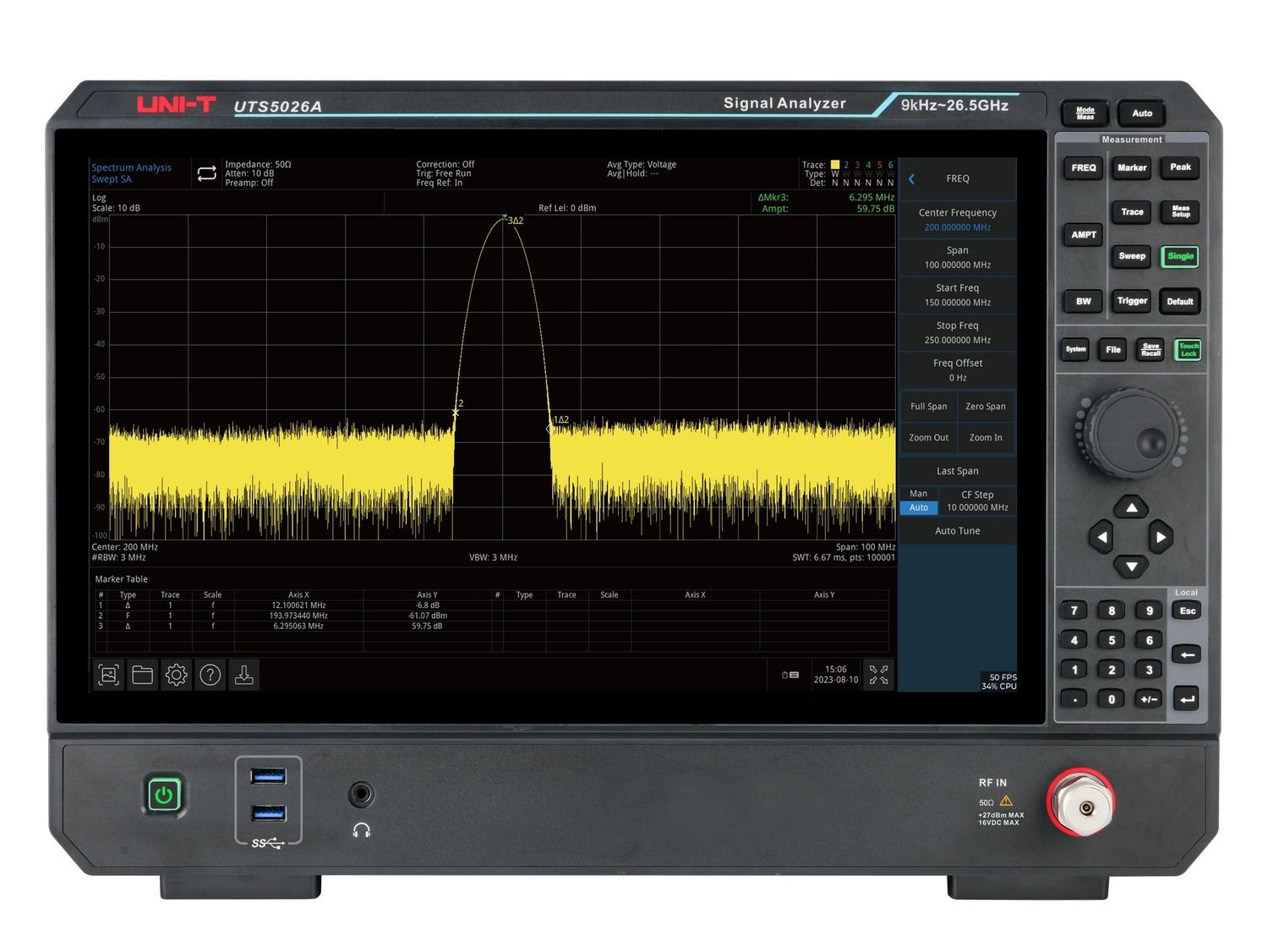

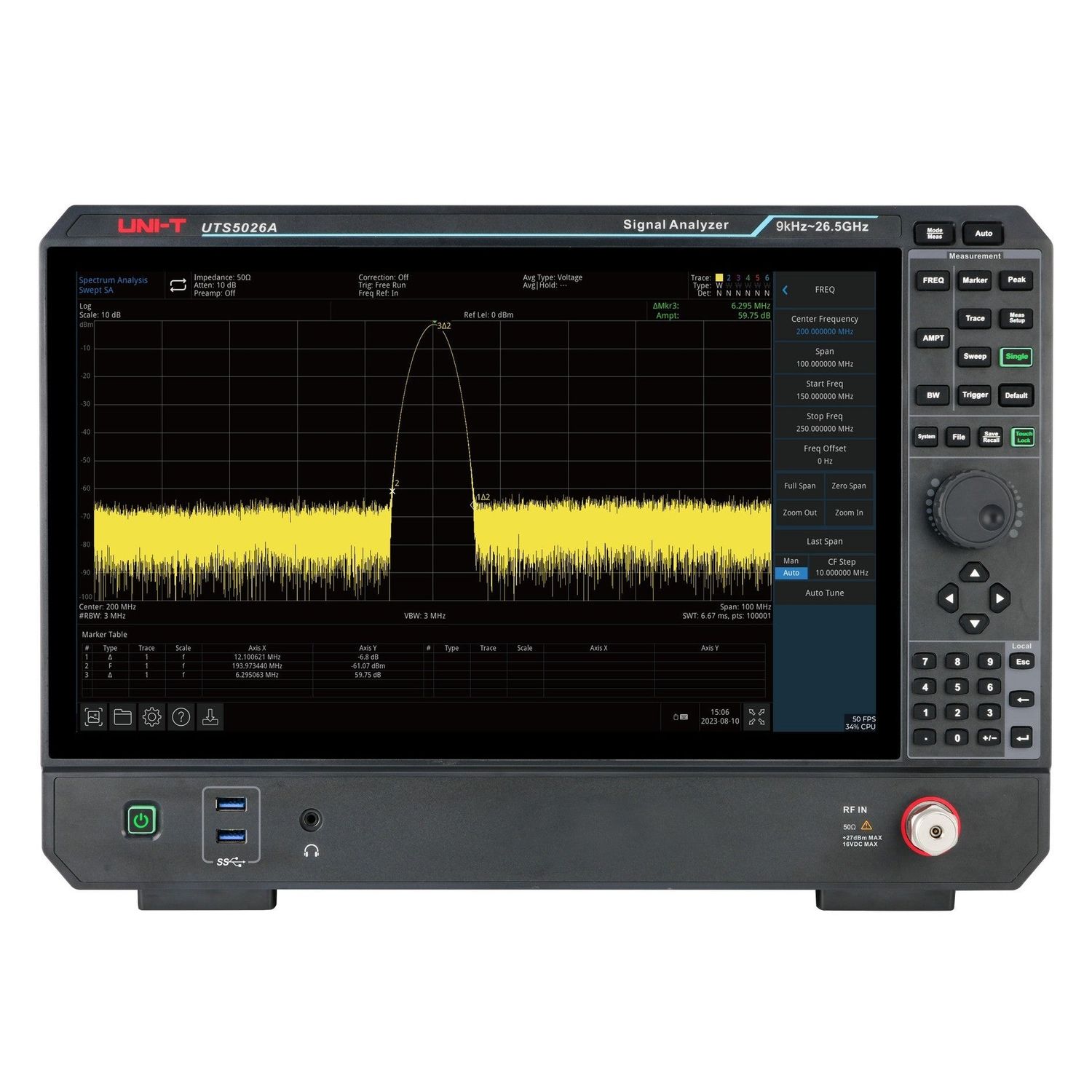

UTS5026A 26.5 GHz Performance-Series Signal Analyzer
$29 999.00
26.5 GHz spectrum analyzer. High-performance platform for microwave, satellite, radar, and advanced wireless system testing.
Add-on Options
In stock
Customer reviews
Reviews only from verified customers
No reviews yet. You can buy this product and be the first to leave a review.
UTS5026A 26.5 GHz Performance-Series Signal Analyzer
Product Details
UPC: 6935750550335
Manufacturer: UNI-T
Warranty: 3 years
Literature: https://instruments.uni-trend.com/download?cate=93
Equipment Type: Spectrum Analyzer
The UTS5026A is a Performance-Series signal analyzer covering 9 kHz to 26.5 GHz in a single instrument, reaching through the K band to cover sub-6 GHz cellular and Wi-Fi bands, SATCOM downlinks, and microwave point-to-point links.
Displayed average noise level reaches −163 dBm/Hz typical with the optional preamplifier engaged (−150 dBm/Hz baseline), phase noise is −107 dBc/Hz typical at 1 GHz, 10 kHz offset, and total absolute amplitude accuracy is ±0.40 dB at the 50 MHz reference. Resolution bandwidth resolves from 1 Hz to 3 MHz in 10% steps plus 4/5/6/8 MHz wide settings, with selectivity below 4.1:1 and up to 100,001 sweep points per trace across seven detector types. Maximum safe input is +27 dBm average / +47 dBm peak (gated). A 15.6-inch 1920 × 1080 capacitive multi-touch display, an NMD 2.92 mm RF input, 10 MHz reference in/out, USB 3.0/2.0, and LAN (VXI-11) complete the platform. Firmware updates are free and licensed options do not expire.
A modular measurement library — vector signal demodulation, I/Q capture, EMI pre-compliance, 5G NR and LTE FDD/TDD decoding, dedicated phase-noise measurement, and analog AM/FM demodulation — is available as licensed unlocks. It suits RF and microwave design teams, EMC pre-compliance benches, and cellular and SATCOM development groups. ECCN 3A992.a.
Key Features
- Frequency Range=9kHz - 26.5GHz
- DANL=-163dBm/Hz
- RBW=1Hz-3MHz (10% Steps), 4, 5, 6, 8MHz
- Phase Noise=<-107dBc/Hz
- RTSA=25MHz
Specifications
| Frequency range | 9 kHz to 26.5 GHz |
| Frequency reference | 10.000000 MHz, ±3×10⁻⁸ stability (20 to 30 °C) |
| RBW range | 1 Hz to 3 MHz (10% steps), 4, 5, 6, 8 MHz |
| RBW selectivity (-60 dB / -3 dB) | <4.1 : 1 (-60 dB / -3 dB, nominal) |
| Sweep points | 100,001 (max) |
| Sweep time | 1 ms to 4,000 s (span ≥ 10 Hz); 1 µs to 6,000 s (zero span) |
| Trigger types | Free Run, External 1, External 2, Video, Periodic Timer |
| DANL (preamp on, with UTS5000A-P26) | -163 dBm/Hz typ. (20 MHz to 1.5 GHz typ.) |
| DANL (preamp off, baseline) | -150 dBm/Hz typ. (20 MHz to 1.5 GHz typ.) |
| Phase noise (1 GHz, 10 kHz / 1 MHz offset) | -107 / -132 dBc/Hz typ. |
| Total absolute amplitude accuracy | ±(0.40 dB + frequency response) |
| Amplitude accuracy at 50 MHz | ±0.40 dB at 50 MHz reference |
| Reference level range | -170 dBm to +30 dBm, 0.01 dB steps |
| Input attenuator | 0 to 50 dB, 2 dB steps |
| Maximum safe input (avg / peak / DC) | +27 dBm avg / +47 dBm peak (gated) / +16 VDC |
| Third-order intercept (TOI, typ.) | +16 dBm typ. (10 MHz to 2 GHz, preamp off) |
| Residual spurious response | -90 dBm (200 kHz to 26.5 GHz, swept) |
| Trace detectors | Normal, Peak, Sample, Negative Peak, Log Power Average, RMS Average, Voltage Average |
| Number of traces | 6 |
| Display | 15.6 inch, 1920 x 1080, Multi-touch capacitive TFT LCD |
| RF input connector | NMD 2.92 mm male |
| Ext reference in / out | 10 MHz BNC: -5 to +10 dBm in / >0 dBm out, 50 Ω |
| USB / LAN / HDMI | USB-A 3.0 (front) + USB-A 2.0 (rear) Host; USB-B 2.0 Device; LAN (VXI11) 10/100/1000; HDMI 1.4 |
| Power supply | 100 to 240 VAC (±10%), 50 / 60 Hz |
| Operating temperature / humidity | 0 °C to +40 °C; ≤90% RH below +35 °C |
| Dimensions / weight | 445 mm × 311 mm × 195 mm (W × H × D) / About 11 kg (24.3 lb) |
| Certifications / ECCN | CE, cETLus / 3A992.a |
