UNI-T UTS3084A Signal Analyzer: Advanced RF Analysis for Modern Applications

Discover the power and precision of the UNI-T UTS3084A Signal Analyzer, a state-of-the-art tool designed to meet the needs of professionals in telecommunications, electronic engineering, and R&D. As part of UNI-T’s UTS3000A series, this spectrum analyzer provides extensive frequency coverage, advanced real-time analysis, and unparalleled accuracy to simplify complex measurements. Alongside the UTS3036A (3.6GHz) and UTS3060A (6GHz) models, the UTS3084A is UNI-T's top-tier model, reaching up to 8.4 GHz for robust signal analysis and measurement.

Key Benefits of the UTS3084A Signal Analyzer

• Comprehensive Frequency Range (9 kHz to 8.4 GHz): Perfectly suited for a broad array of applications, the UTS3084A provides flexibility and utility in RF, audio, and microwave frequency testing.
• High Sensitivity and Precision: Achieve greater sensitivity with a displayed average noise level (DANL) of -165 dBm/Hz, allowing you to detect even the weakest signals with unmatched clarity.
• Real-Time Spectrum Analysis for Superior Detection: With up to 40 MHz of real-time bandwidth, the UTS3084A captures fleeting or intermittent signals effortlessly, ideal for identifying anomalies or sporadic interference.
• Enhanced Trigger Capabilities: The frequency template trigger feature lets you capture specific signal events, making it invaluable for monitoring transient or episodic signals with precision.
• User-Friendly Interface with Multi-Touch Display: The 10.1-inch HD multi-touch screen allows intuitive navigation and real-time visualization, giving users efficient control over complex operations.

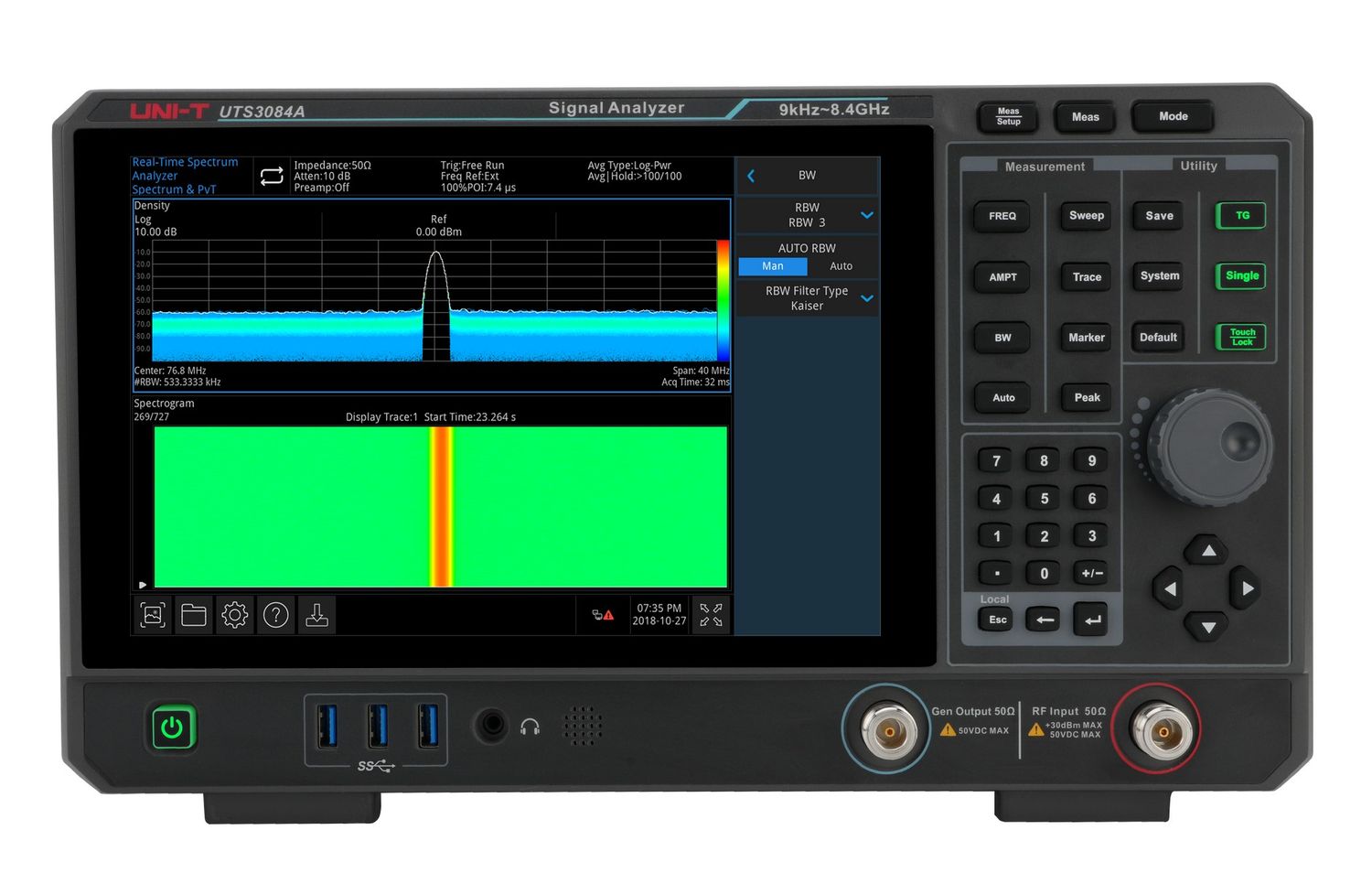

UNI-T UTS3084A Signal Analyzer

Key Specifications of the UNI-T UTS3084A

• Frequency Range: 9 kHz to 8.4 GHz
• Displayed Average Noise Level (DANL): -165 dBm/Hz (typical)
• Phase Noise: < -100 dBc/Hz at 10 kHz offset (typical)
• Resolution Bandwidth (RBW): 1 Hz to 10 MHz
• Sweep Points: Up to 40,001
• Real-Time Bandwidth (Optional): 40 MHz
• Vector Network Analysis: Standard with S11 and S21 parameter measurements
• Analog and Digital Signal Demodulation Support: AM, FM, PM, and various digital modulation formats
• Screen: 10.1-inch 1280 x 800 HD multi-touch display
• Connectivity: LAN, USB, HDMI, and SCPI remote control support

UNI-T UTS3084A Advanced Features

Real-Time Frequency Sweep with Density Spectrogram

The UTS3084A offers a real-time sweep mode that combines traditional spectral display with density spectrograms, visualizing the frequency occurrence of signals over time. This feature captures minor, hidden signals amid stronger ones, ensuring no detail is missed even in high-density signal environments.

UNI-T UTS3084A Real-Time Frequency Sweep Analysis

Frequency Template Trigger for Precise Measurements

The frequency template trigger is a game-changer for engineers working with transient signals. It allows for precise capture of brief signal events, ideal for episodic or unexpected frequency occurrences.

UNI-T UTS3084A Frequency Template Trigger

Exceptional Selectivity and Sensitivity

With its robust capability to separate signals of unequal adjacent amplitudes, the UTS3084A excels in distinguishing weak signals that are often overwhelmed by stronger ones. Combined with a low DANL of -165 dBm/Hz, this signal analyzer ensures accurate analysis of faint signals, making it indispensable for noise-sensitive applications.

UNI-T UTS3084A Excellent Selectivity

Versatile Vector Network Analysis (VNA) Mode

Built with VNA functionality, the UTS3084A facilitates in-depth analysis of network properties using S11 and S21 measurements. Display options include Smith charts, polar coordinates, and more, all within an accessible, touch-responsive interface that speeds up the analysis workflow.

UNI-T UTS3084A Vector Network Analysis (VNA) Mode

EMI Pre-Compliance Testing

Ideal for ensuring that designs meet EMI standards, the UTS3084A includes an EMI pre-compliance testing feature that allows early detection of EMI issues. With customizable frequency ranges, users can perform in-house tests that help streamline final compliance testing, reducing costly delays.

UNI-T UTS3084A EMI Pre-Compliance Testing

Multi-Touch, High-Resolution Display for Enhanced Control

Equipped with a 10.1-inch HD display, the UTS3084A’s multi-touch interface allows intuitive control, supporting drag, expand, and zoom gestures. This makes navigating complex measurements straightforward and efficient, reducing setup time and improving overall workflow.

UNI-T UTS3084A HD Touch Display

Warranty & Support

All UNI-T UTS3000A Series signal analyzers include a 3-year warranty covering parts and labor under normal use. Standard accessories (including probes and cables) are covered by a 1-year warranty. Register your UTS3000A for a free, 2-year warranty extension.

Learn more about the UNI-T UTS3084A Today

Get a demo or talk to an expert. We can help you upgrade your test equipment with the UNI-T UTS3084A Signal Analyzer, engineered for high precision, flexibility, and ease of use. UNI-T’s commitment to quality ensures that each instrument meets rigorous standards, making the UTS3084A a valuable asset in any laboratory or field environment.

Other models in the series:

• UTS3036A: 3.6 GHz frequency range
• UTS3060A: 6 GHz frequency range

Explore the Future of Signal Analysis with UNI-T.
