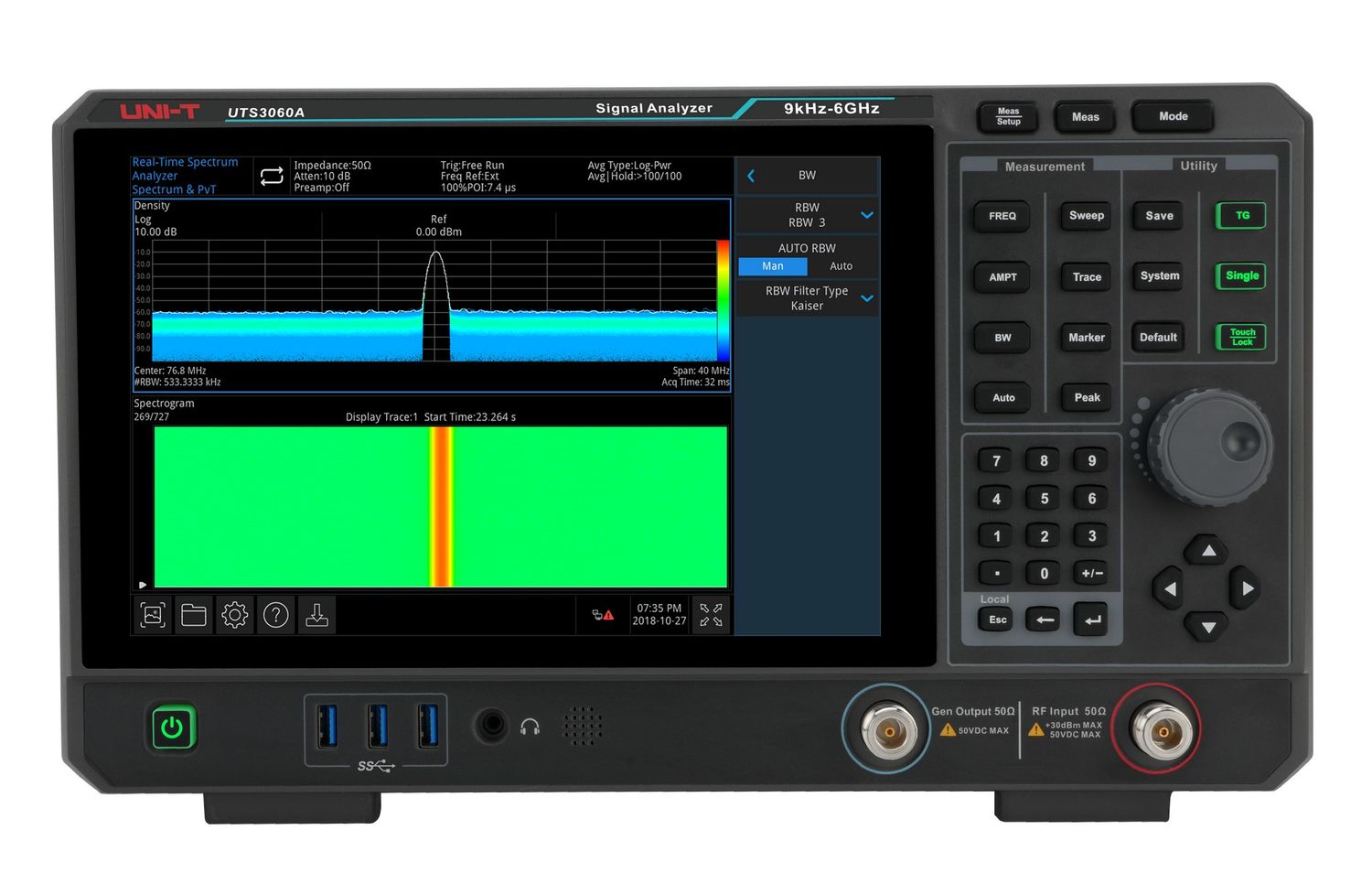

UNI-T UTS3060A Signal Analyzer: High-Performance RF Analysis for Modern Applications

The UNI-T UTS3060A Signal Analyzer is engineered to meet the needs of RF analysis professionals in telecommunications, engineering, and research. As a part of the advanced UTS3000A series, the UTS3060A provides a broad frequency range, sophisticated real-time analysis, and precision measurements. This model reaches up to 6 GHz, with additional options available in the UTS3036A (3.6 GHz) and UTS3084A (8.4 GHz) models, enabling selection based on specific application needs.

Key Advantages of the UTS3060A Signal Analyzer

• Broad Frequency Range (9 kHz to 6 GHz): Ideal for a wide variety of applications, the UTS3060A supports RF, audio, and microwave frequency testing with reliable performance.
• High Sensitivity and Accuracy: With a displayed average noise level (DANL) of -165 dBm/Hz, this analyzer detects even the faintest signals, enabling detailed and accurate analysis.
• Real-Time Spectrum Analysis for Intermittent Signals: The UTS3060A’s real-time bandwidth of up to 40 MHz makes it ideal for capturing fleeting or sporadic signals, ensuring clarity in real-time analysis.
• Advanced Trigger Options: The frequency template trigger captures specific signal events, facilitating high-precision analysis of transient signals.
• Multi-Touch Display Interface for Ease of Use: The 10.1-inch HD multi-touch display allows for easy navigation and control, giving users quick access to complex operations with just a touch.

UNI-T UTS3060A Signal Analyzer

Key Specifications of the UNI-T UTS3060A

• Frequency Range: 9 kHz to 6 GHz
• Displayed Average Noise Level (DANL): -165 dBm/Hz (typical)
• Phase Noise: < -100 dBc/Hz at 10 kHz offset (typical)
• Resolution Bandwidth (RBW): 1 Hz to 10 MHz
• Sweep Points: Up to 40,001
• Real-Time Bandwidth (Optional): 40 MHz
• Vector Network Analysis: Standard with S11 and S21 parameter measurements
• Analog and Digital Signal Demodulation Support: AM, FM, PM, and various digital modulation formats
• Screen: 10.1-inch 1280 x 800 HD multi-touch display
• Connectivity: LAN, USB, HDMI, and SCPI remote control support

Advanced Features of the UNI-T UTS3060A

Real-Time Frequency Sweep with Density Spectrogram

The UTS3060A features a real-time frequency sweep mode, combining standard spectral displays with density spectrograms to reveal hidden, faint signals among stronger ones. This feature is invaluable for thorough analysis in high-density signal settings.

UNI-T UTS3060A Real-Time Frequency Sweep Analysis

Precision Frequency Template Trigger

Engineered for applications that require precise capture of intermittent signals, the UTS3060A’s frequency template trigger ensures accuracy by targeting specific signal events, perfect for monitoring transient occurrences.

UNI-T UTS3060A Frequency Template Trigger

Superior Signal Selectivity and Sensitivity

The UTS3060A excels at differentiating signals with varying adjacent amplitudes, thanks to its high sensitivity and DANL of -165 dBm/Hz, making it highly effective in applications requiring analysis of weak signals.

UNI-T UTS3060A Superior Signal Selectivity

Comprehensive Vector Network Analysis (VNA)

The UTS3060A includes versatile VNA capabilities, enabling detailed S11 and S21 measurements. Various display formats, such as Smith charts and polar plots, make network analysis fast and accessible, optimizing the user workflow.

UNI-T UTS3060A Vector Network Analysis (VNA)

Efficient EMI Pre-Compliance Testing

The EMI pre-compliance feature helps identify potential EMI issues during the development phase, saving time and resources by streamlining final compliance testing with customizable frequency ranges.

UNI-T UTS3060A EMI Pre-Compliance Testing

Multi-Touch, High-Definition Display for Enhanced Control

Equipped with a 10.1-inch HD display, the UTS3060A’s intuitive multi-touch interface simplifies complex analysis, with gesture controls for zoom, expand, and navigation, streamlining the user experience.

UNI-T UTS3060A HD Touch Display

Warranty & Support

All UNI-T UTS3000A Series signal analyzers include a 3-year warranty covering parts and labor under normal use. Standard accessories (including probes and cables) are covered by a 1-year warranty. Register your UTS3000A for a free, 2-year warranty extension.

Learn More about the UNI-T UTS3060A

Contact us for a demonstration or more information about the UNI-T UTS3060A Signal Analyzer. Designed for high accuracy and ease of use, this tool is trusted in laboratories and testing environments worldwide. UNI-T’s rigorous quality standards make the UTS3060A an invaluable asset for RF analysis.

Other models in the series:

• UTS3036A: 3.6 GHz frequency range
• UTS3084A: 8.4 GHz frequency range

Embrace the Future of Signal Analysis with UNI-T.
