UNI-T UTS3036A Signal Analyzer: Superior RF Analysis for Today’s Applications

The UNI-T UTS3036A Signal Analyzer is designed for professionals who need precise RF analysis across various industries, including telecommunications, electronic engineering, and research and development. Part of UNI-T's UTS3000A series, the UTS3036A offers comprehensive frequency capabilities, real-time analysis features, and impressive accuracy to simplify demanding measurement tasks. This model, with a frequency range up to 3.6 GHz, is accompanied by the UTS3060A (6 GHz) and UTS3084A (8.4 GHz) models, each tailored for specific application needs.

Key Benefits of the UTS3036A Signal Analyzer

• Wide Frequency Range (9 kHz to 3.6 GHz): The UTS3036A is versatile for numerous applications, supporting RF, audio, and microwave testing with flexibility and reliability.
• Enhanced Sensitivity and Accuracy: With a displayed average noise level (DANL) of -165 dBm/Hz, the UTS3036A offers excellent sensitivity, ideal for detecting weak signals.
• Real-Time Spectrum Analysis for Capturing Intermittent Signals: The UTS3036A’s 40 MHz real-time bandwidth easily captures fleeting or sporadic signals, which is crucial for pinpointing irregularities or interference.
• Advanced Trigger Options: Its frequency template trigger allows precise capture of transient signals, ensuring reliable measurement of short-lived signal events.
• Intuitive Multi-Touch Display Interface: The 10.1-inch HD multi-touch screen allows quick navigation and visualization, giving users intuitive control over advanced operations.

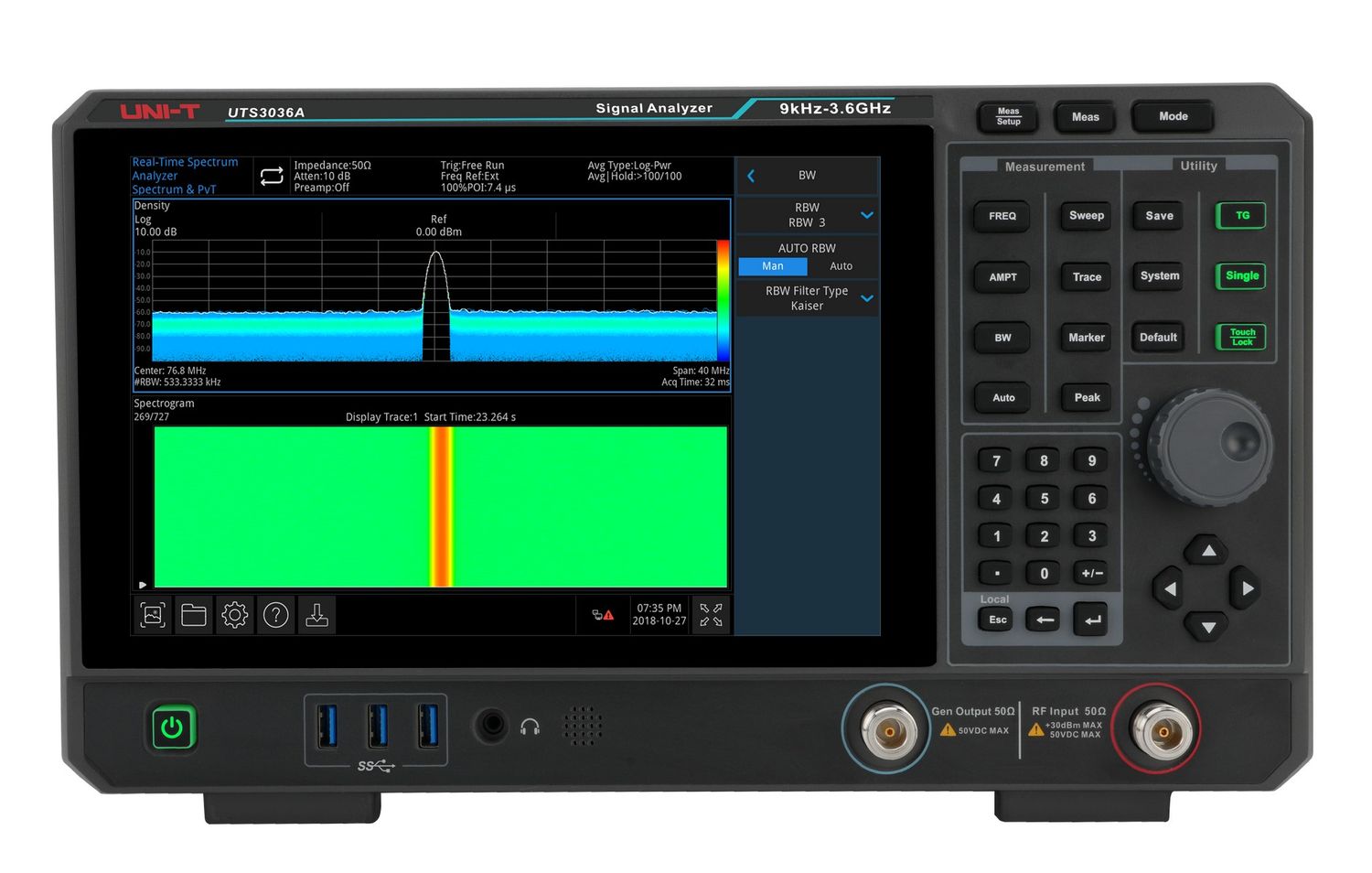

UNI-T UTS3036A Signal Analyzer

Key Specifications of the UNI-T UTS3036A

• Frequency Range: 9 kHz to 3.6 GHz
• Displayed Average Noise Level (DANL): -165 dBm/Hz (typical)
• Phase Noise: < -100 dBc/Hz at 10 kHz offset (typical)
• Resolution Bandwidth (RBW): 1 Hz to 10 MHz
• Sweep Points: Up to 40,001
• Real-Time Bandwidth (Optional): 40 MHz
• Vector Network Analysis: Standard with S11 and S21 parameter measurements
• Analog and Digital Signal Demodulation Support: AM, FM, PM, and various digital modulation formats
• Screen: 10.1-inch 1280 x 800 HD multi-touch display
• Connectivity: LAN, USB, HDMI, and SCPI remote control support

Advanced Features of the UNI-T UTS3036A

Real-Time Frequency Sweep with Density Spectrogram

The UTS3036A provides a real-time frequency sweep that combines traditional spectrum analysis with density spectrograms, capturing subtle signals hidden within stronger ones. This enables highly detailed views in dense signal environments.

UNI-T UTS3036A Real-Time Frequency Sweep Analysis

Frequency Template Trigger for High-Precision Measurements

This frequency template trigger feature enables precise capture of short-lived signals, making it ideal for episodic or irregular signal monitoring and measurement.

UNI-T UTS3036A Frequency Template Trigger

Superior Selectivity and Signal Sensitivity

The UTS3036A excels in differentiating between signals of varying amplitudes, thanks to its high sensitivity with a DANL of -165 dBm/Hz, ensuring clarity in weak-signal analysis, crucial for noise-sensitive applications.

UNI-T UTS3036A Superior Selectivity

Versatile Vector Network Analysis (VNA) Mode

Featuring VNA mode, the UTS3036A enables detailed network analysis, supporting S11 and S21 measurements with multiple display formats like Smith charts and polar plots. This feature simplifies network analysis in real-time.

UNI-T UTS3036A Vector Network Analysis (VNA) Mode

Pre-Compliance EMI Testing

The UTS3036A supports EMI pre-compliance testing, ideal for identifying potential EMI issues early. Its flexible frequency ranges enable in-house testing to simplify and shorten the final compliance process.

UNI-T UTS3036A EMI Pre-Compliance Testing

HD Multi-Touch Display for Enhanced Usability

The UTS3036A’s 10.1-inch HD multi-touch screen interface makes it easy to control and view complex measurements, with gesture support for a streamlined user experience.

UNI-T UTS3036A HD Touch Display

Warranty & Support

All UNI-T UTS3000A Series signal analyzers include a 3-year warranty covering parts and labor under normal use. Standard accessories (including probes and cables) are covered by a 1-year warranty. Register your UTS3000A for a free, 2-year warranty extension.

Learn More about the UNI-T UTS3036A

Contact us for a demonstration or to speak with an expert. The UNI-T UTS3036A Signal Analyzer is built for high accuracy, ease of use, and flexibility. UNI-T ensures that each instrument meets stringent standards, making the UTS3036A a trusted tool in any lab or testing environment.

Other models in the series:

• UTS3060A: 6 GHz frequency range
• UTS3084A: 8.4 GHz frequency range

Embrace the Future of Signal Analysis with UNI-T.
