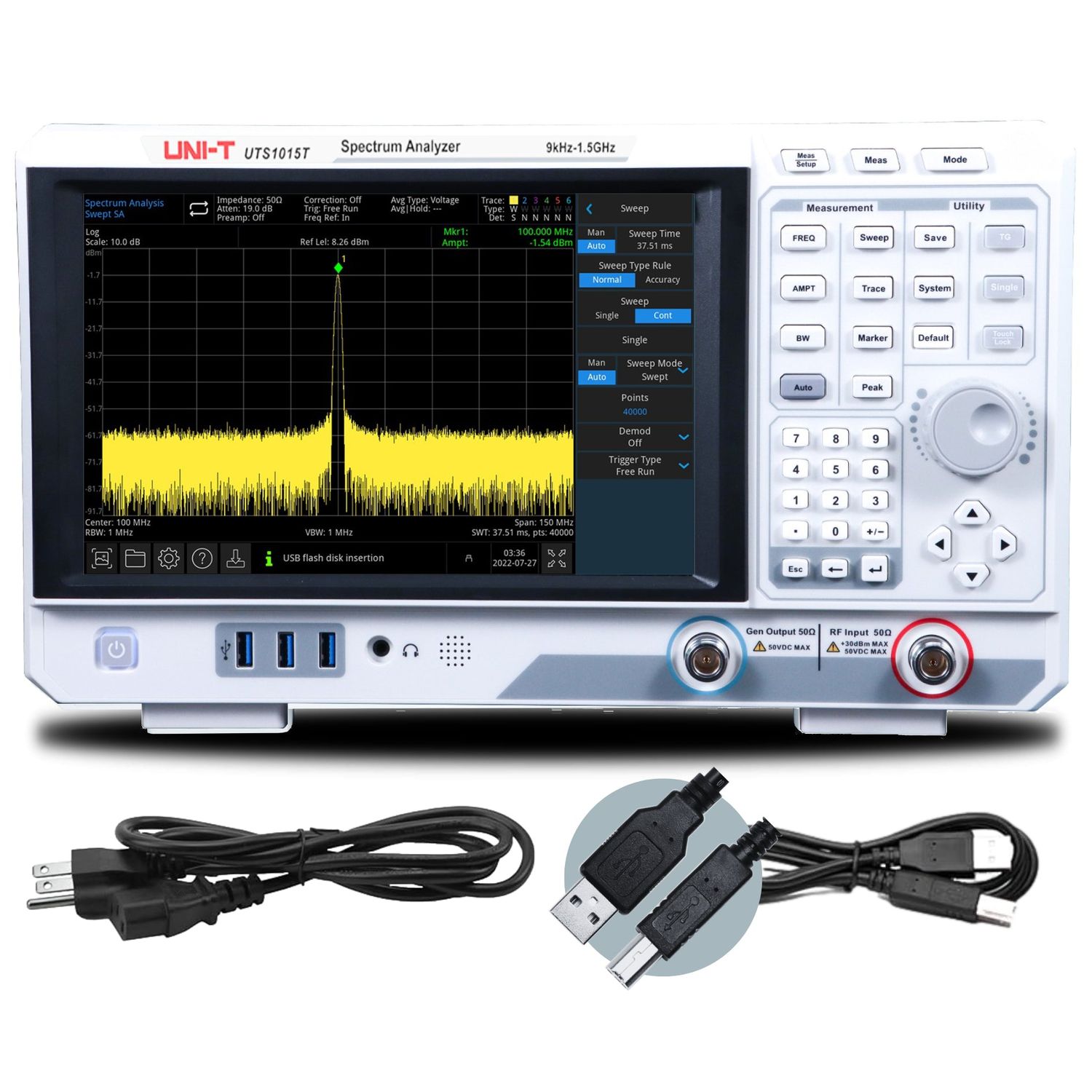

UTS1015T 1.5 GHz Spectrum Analyzer with Tracking Generator
$1 399.00
1.5 GHz spectrum analyzer with tracking generator and -161dBm/Hz DANL. A capable, affordable RF analysis platform for EMC pre-compliance, wireless device testing, and RF education.
Add-on Options
In stock
Customer reviews
Reviews only from verified customers
No reviews yet. You can buy this product and be the first to leave a review.
UTS1015T 1.5 GHz Spectrum Analyzer with Tracking Generator
Product Details
UPC: 6935750510674
Manufacturer: UNI-T
Warranty: 3 years
Literature: https://instruments.uni-trend.com/download?cate=59
Equipment Type: Spectrum Analyzer
The UTS1015T is a 1.5 GHz handheld spectrum analyzer of the UTS1000 line. It covers 9 kHz to 1.5 GHz with a resolution bandwidth of 1 Hz to 1 MHz in 1-3-10 steps, a phase noise of ≤ −98 dBc/Hz at 10 kHz offset, and a displayed average noise level of ≤ −161 dBm/Hz (normalized). A 10.1-inch capacitive touch display delivers the user interface with up to four split-screen measurement windows.
The analyzer includes a vector network analyzer mode covering 1 MHz to 1.5 GHz, a tracking generator, channel power, occupied bandwidth, ACPR, CCDF, and EMI pre-compliance measurement functions. Connectivity includes LAN, USB-Host, USB-Device, HDMI, and SCPI, along with a built-in rechargeable battery for field use.
It suits field RF characterization, EMI pre-compliance screening, antenna and cable testing, and compact-bench spectrum measurement to 1.5 GHz where portability, VNA capability, and a large touch display are required.
Key Features
- Frequency Range=9kHz - 1.5GHz
- DANL=-161dBm/Hz
- RBW=1Hz-1MHz (1-3-10)
- Phase Noise=<-98dBc/Hz
- Tracking Generator=Yes
Specifications
| Frequency Range | 9 kHz – 1.5 GHz |
| Displayed Average Noise Level (DANL) | -161 dBm/Hz (typical, preamp on) |
| Phase Noise | <-98 dBc/Hz @ 10 kHz offset (typical, 1 GHz carrier) |
| Amplitude Accuracy | <0.7 dB |
| Resolution Bandwidth (RBW) | 1 Hz – 1 MHz, 1-3-10 steps |
| Video Bandwidth (VBW) | 1 Hz – 1 MHz, 1-3-10 steps |
| Sweep Points | 10,001 |
| Number of Traces | 4 |
| Detector Types | Sample, Peak, Negative, Normal, Average |
| Sweep Modes | Swept (1 kHz – 1 MHz RBW), FFT (1 Hz – 30 kHz RBW) |
| Preamplifier | 20 dB (nominal), switchable |
| Input Attenuator Range | 0 – 51 dB, 1 dB steps |
| Reference Level | -100 dBm to +30 dBm |
| Maximum Safe Input | +33 dBm CW (3 min, attenuation >20 dB); 50 V DC max |
| Frequency Reference | 10 MHz, <1 ppm (initial calibration), aging ≤±1.0 ppm/year |
| Tracking Generator Frequency Range | 100 kHz – 1.5 GHz |
| TG Output Power | -40 dBm to 0 dBm |
| TG Output Resolution | 0.5 dB |
| TG Flatness | ±3 dB (relative to 50 MHz) |
| RF Input Connector | Type-N female, 50 Ω |
| Display | 10.1-inch Capacitive multi-touch HD, 1280 × 800 |
| Interfaces | HDMI 1.4, USB-A 3.0 (Host), USB-B 2.0 (Device), LAN VXI11 (10/100/1000 Base, RJ-45) |
| Remote Control Protocol | SCPI over USB-Device and LAN |
| Operating Temperature | 0 °C to +40 °C |
| Storage Temperature | -20 °C to +70 °C |
| Humidity | ≤90% RH below +35 °C |
| Altitude | Up to 3000 m |
| Cooling | Forced-air with removable dust filter |
| Dimensions (W × H × D) | 378 mm × 218 mm × 120 mm (W × H × D) |
| Net Weight | 4.55 kg (10.0 lb) |
| Certifications | CE | cETLus |
| Safety Standards | EN 61010-1, EN IEC 61010-2-030, UL 61010-1, CSA C22.2 #61010-1 |
| EMC Standards | IEC 61326-1, IEC 61326-2-1 (CISPR 11 Class B, Group 1) |
| Pollution Degree | 2 |
