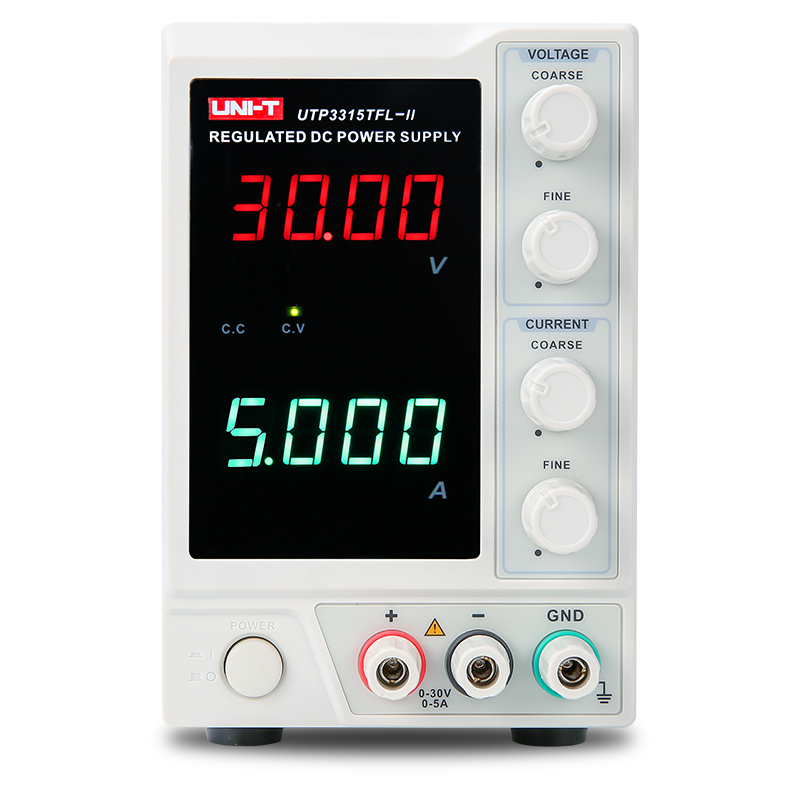

UTP3315TFL-II 1Ch 150W 30V/5A Linear DC Power Supply
$99.00
1-channel W linear DC power supply rated to 30V/5A. Dependable bench supply for engineering labs, service, and production testing.
In stock
Customer reviews
Reviews only from verified customers
No reviews yet. You can buy this product and be the first to leave a review.
UTP3315TFL-II 1Ch 150W 30V/5A Linear DC Power Supply
Product Details
UPC: 6935750533246
Manufacturer: UNI-T
Warranty: 3 years
Literature: https://instruments.uni-trend.com/download?cate=37
Equipment Type: DC Power Supply
The UTP3315TFL-II is a compact, economical single-channel linear bench DC power supply delivering 0–30 V at 0–5 A for 150 W of low-ripple output (≤2 mVrms), suited to hobbyist electronics, prototyping, and manufacturing test. It measures 105 × 165 × 249 mm and weighs 4 kg.
A four-digit LED reads voltage and current at 10 mV / 1 mA resolution, and an automatic CV/CC crossover with current-limit protection handles unknown loads safely. Set-point programming accuracy is
Operation is knob-and-button from the front panel with no remote interface, firmware, or PC software, suiting it to a portable or space-constrained bench.
Key Features
- Voltage Out=30V
- Current Out=5A
- Channels=1Ch
- Power Out=150W
Specifications
| Model | UTP3315TFL-II |
| Channels | 1 |
| Output Voltage | 0–30V |
| Output Current | 0–5A |
| Total Output Power | 150W |
| Voltage Resolution | 10 mV |
| Current Resolution | 1 mA |
| Load Regulation | CV ≤0.01% + 5 mV
CC ≤0.1% + 10 mA |
| Programming Accuracy (25°C ±5°C) | Voltage: <0.5% + 20 mV
Current: <0.5% + 10 mA |
| Output Regulation Resolution | CV: 10 mV (typical)
CC: 1 mA (typical) |
| Ripple & Noise | ≤2 mVrms |
| Display | LED voltage and current dual display |
| Protection | Auto CV/CC crossover with current limit protection |
| Reliability | MTBF ≥ 2,000 hrs |
| AC Input | 110V / 220V ±5% AC, 50/60 Hz |
| Dimensions (W×H×D) | 105 × 165 × 249 mm |
| Weight | 4 kg |
| Certifications | CE |
