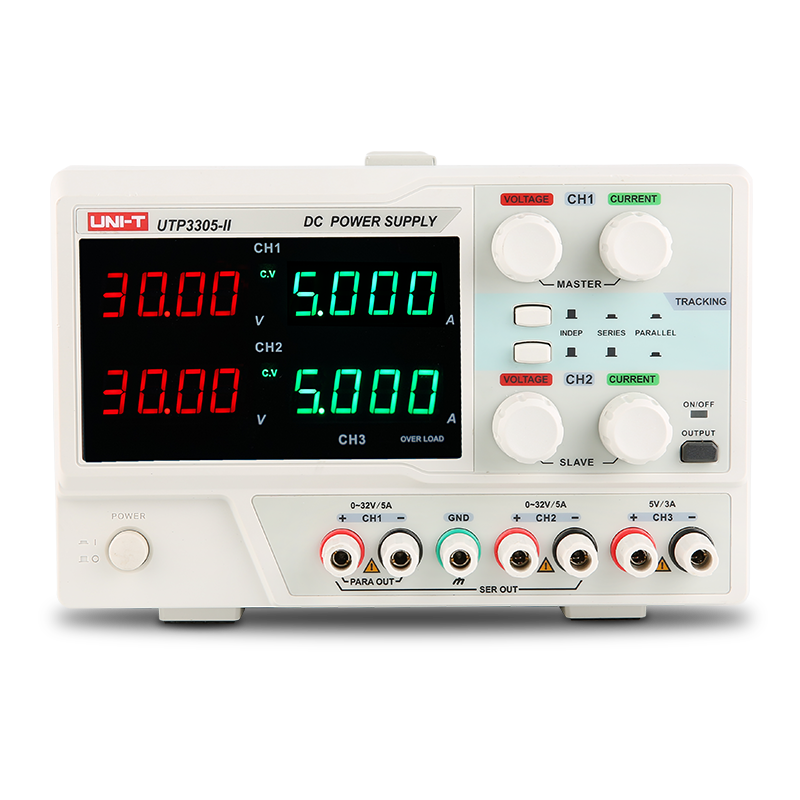

UTP3305-II 3Ch 335W 32V/5A Linear DC Power Supply
$249.00
3-channel W linear DC power supply. Dependable bench supply for engineering labs, service, and production testing.
In stock
Customer reviews
Reviews only from verified customers
No reviews yet. You can buy this product and be the first to leave a review.
UTP3305-II 3Ch 335W 32V/5A Linear DC Power Supply
Product Details
UPC: 6935750513408
Manufacturer: UNI-T
Warranty: 3 years
Literature: https://instruments.uni-trend.com/download?cate=36
Equipment Type: DC Power Supply
The UTP3305-II is a precision refresh of the three-channel UTP3305 linear platform with 335 W total output. CH1 and CH2 are adjustable from 0–32 V at 0–5 A and CH3 provides a fixed 5 V at 3 A; a four-digit LED reads voltage and current per channel at 10 mV / 1 mA resolution. Linear regulation holds output ripple under 1 mVrms, with load regulation of CV
An automatic CV/CC crossover with current-limit protection handles changing loads, and CH1 and CH2 combine in series for up to 64 V or in parallel for up to 10 A. A temperature-controlled cooling fan scales airflow with internal temperature, and a front-panel master output ON/OFF is provided.
Operation is knob-and-button from the front panel with no remote interface, suiting it to bench analog work, service, and education.
Key Features
- Voltage Out=32V
- Current Out=5A
- Channels=3Ch
- Power Out=335W
Specifications
| Model | UTP3305-II |
| Channels | 3 (CH1, CH2 adjustable; CH3 fixed) |
| Output Voltage | CH1, CH2: 0–32V
CH3: 5V (fixed) |
| Output Current | CH1, CH2: 0–5A
CH3: 3A |
| Total Output Power | 335W |
| Voltage Resolution | 10 mV |
| Current Resolution | 1 mA |
| Load Regulation | CV <0.01% + 3 mV
CC <0.2% + 3 mA |
| Ripple & Noise | Voltage: ≤1 mVrms
Current: ≤3 mArms |
| Tracking Accuracy | ±(0.1% of reading + 30 mV)
CC ±(0.3% of reading + 5 mA) |
| Display | 4-digit LED, voltage and current per channel (4 windows) |
| Modes | Independent, Series, Parallel |
| Cooling | Temperature-controlled fan |
| Protection | Current limit protection with auto CV/CC crossover, output ON/OFF |
| Reliability | MTBF ≥ 2,000 hrs |
| AC Input | 115V / 230V AC, 47–63 Hz |
| Dimensions (W×D×H) | 319 × 146 × 226 mm |
| Weight | 10.5 kg |
| Certifications | CE |
