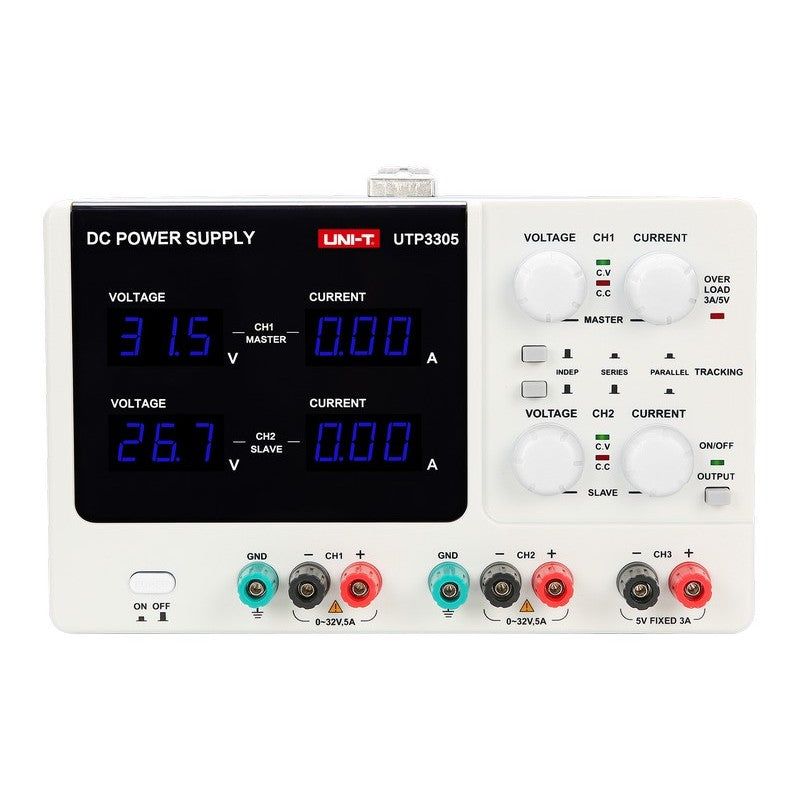

UTP3305 3Ch 335W 32V/5A Linear DC Power Supply
$225.00
3-channel W linear DC power supply. Dependable bench supply for engineering labs, service, and production testing.
In stock
Customer reviews
Reviews only from verified customers
No reviews yet. You can buy this product and be the first to leave a review.
UTP3305 3Ch 335W 32V/5A Linear DC Power Supply
Product Details
UPC: 6935750533079
Manufacturer: UNI-T
Warranty: 3 years
Literature: https://instruments.uni-trend.com/download?cate=43
Equipment Type: DC Power Supply
The UTP3305 is a three-channel linear bench DC power supply with 335 W total output. CH1 and CH2 are adjustable from 0–32 V at 0–5 A, and CH3 provides a fixed 5 V at 3 A for logic-level power. Linear regulation holds output ripple under 1 mVrms.
An automatic CV/CC crossover with current-limit protection transitions between constant-voltage and constant-current operation as the load changes. CH1 and CH2 combine in series for up to 64 V or in parallel for up to 10 A from the front panel, with a master-slave tracking mode for matched dual-rail testing. Independent voltage and current readouts are shown per channel, with a front-panel master output ON/OFF.
Operation is knob-and-button from the front panel with no remote interface, suiting it to higher-current bench work, low-noise analog tasks, and education.
Key Features
- Voltage Out=32V
- Current Out=5A
- Channels=3Ch
- Power Out=335W
Specifications
| Model | UTP3305 |
| Channels | 3 (CH1, CH2 adjustable; CH3 fixed) |
| Output Voltage | CH1, CH2: 0–32V
CH3: 5V (fixed) |
| Output Current | CH1, CH2: 0–5A
CH3: 3A |
| Total Output Power | 335W |
| Load Regulation | CV ≤1×10⁻⁴ + 3 mV
CC ≤2×10⁻⁴ + 3 mA |
| Ripple & Noise | Voltage: ≤1 mVrms
Current: ≤3 mArms |
| Output Regulation Resolution | CV: 100 mV (typical)
CC: 10 mA (typical) |
| Tracking Bias (CH1/CH2) | 5×10⁻³ + 10 mV |
| Display | 3-bit voltage and current dual display |
| Modes | Independent, Series, Parallel, CH1/CH2 Master-Slave Tracking |
| Protection | Current limit protection with auto CV/CC crossover, output ON/OFF |
| Reliability | MTBF ≥ 2,000 hrs |
| AC Input | 115V / 230V AC, 47–63 Hz |
| Dimensions (W×D×H) | 260 × 170 × 315 mm |
| Weight | 10 kg |
| Certifications | CE |
