UTL1040S 400W High-Resolution Programmable DC Electronic Load
$999.00
400W programmable DC electronic load rated to 150V/30A with 0.01 mV/0.01 mA readback resolution. High-resolution measurement for precision power supply characterization, battery testing, and converter development.
In stock
Customer reviews
Reviews only from verified customers
No reviews yet. You can buy this product and be the first to leave a review.
UTL1040S 400W High-Resolution Programmable DC Electronic Load
Product Details
Manufacturer: UNI-T
Warranty: 3 years
Literature: https://cdn.shopify.com/s/files/1/0822/9208/0924/files/UTL1000S_Series_DC_Electronic_Load_-_Data_Sheet.pdf?v=1772202746
Equipment Type: DC Power Supply

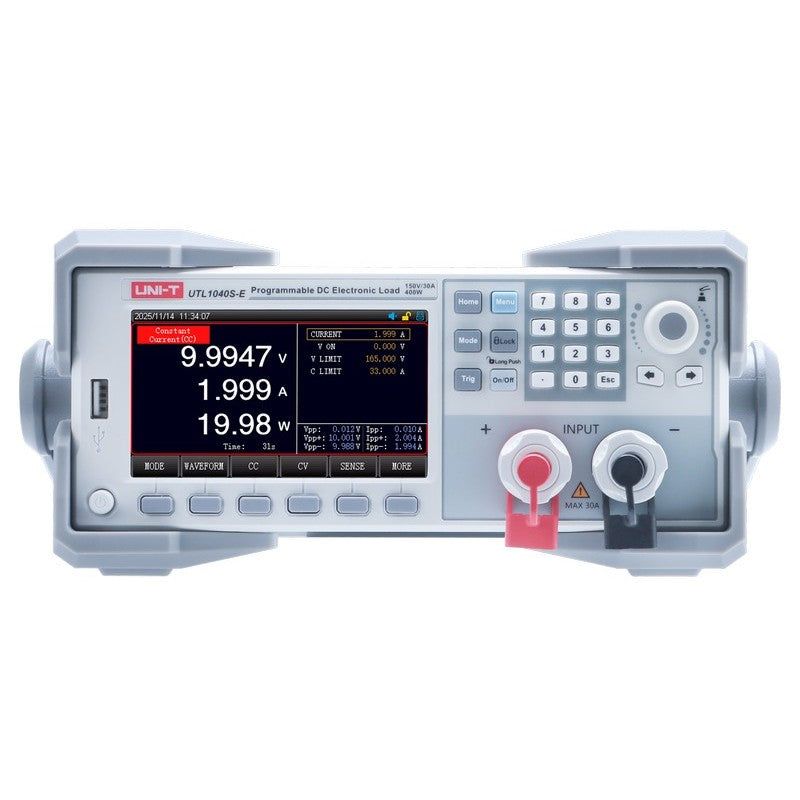

The UTL1040S is a single-channel programmable DC electronic load rated 400 W, 0–150 V, 0–30 A. It runs four constant modes — CC, CV, CR, CP — plus eleven additional test modes (dynamic, OVP, OCP, time, CR-LED, battery, automatic list, short-circuit, load-effect, combination, and list) for 15 modes total. It is positioned as the high-resolution model of the UTL1000 load line.
Synchronous sampling reaches 500 kHz with DSP processing and a self-adaptive voltage/current waveform display on a 4.3-inch TFT LCD, giving high-resolution readback (current to 0.01 mA, voltage to 0.01 mV). Dynamic mode pulls load at up to 50 kHz with a programmable 0.0006–3 A/µs rise/fall slope, so voltage and current peaks (Vpp/Ipp) are observed directly, and on-screen ripple readout plus a live V/I waveform view remove the need for an external oscilloscope. Battery test records charge and discharge curves, and an automatic list test runs up to 200-step multi-mode sequences for repeatable production test. A rear-panel Sense terminal provides remote voltage compensation against lead drop, and OVP/OCP/OPP/OTP and short-circuit protections are built in.
Remote control is provided over RS-232 with a HANDLER interface for ATE integration and a USB Host port for data logging, screenshots, and list import/export, using the SCPI command set. It suits power-supply and converter validation, battery and LED-driver characterization, and automated production test. Backed by a 3-year standard warranty with a 2-year extension.
Key Features
- Voltage In=0-15V/150V
- Current In=0-3A/30A
- Power In=400W
- V / A Resolution=1mV / 0.01mA/0.1mA
- Slew Rate=0.0006A/μS - 3A/μS
- Interface=RS232, USB-Host, HANDLER
Specifications
| Input power (rated) | 400 W |
| Input voltage | 0–15 V (low) / 0–150 V (high) |
| Input current | 0–3 A (low) / 0–30 A (high) |
| Minimum operating voltage | 1.4 V ± 0.1 V at 30 A |
| CV mode | Range 0.1–150 V, resolution 1 mV, accuracy ±(0.03% + 0.05% FS) |
| CC mode | Resolution 0.01 mA / 0.1 mA (low / high), accuracy ±(0.03% + 0.05% FS) |
| CR mode | Range 0.05 Ω – 10 kΩ, resolution 16 bits, accuracy (0.1 + 0.01R)% |
| CP mode | Range 400 W, resolution 10 mW, accuracy ±(0.1% + 0.1% FS) |
| Readback voltage resolution (CC/CP) | 0.01 mV / 0.1 mV (low / high) |
| Readback voltage resolution (CV/CR) | 0.1 mV |
| Readback current resolution | 0.01 mA / 0.1 mA (low / high) |
| Readback accuracy (V / I / P) | ±(0.02% + 0.3% FS) / ±(0.03% + 0.05% FS) / ±(0.1% + 0.1% FS) |
| Dynamic mode T1 & T2 | 10 µs – 50 s, 1 µs resolution; timing accuracy 1 µs / 1 ms ±100 ppm |
| Dynamic rise/fall slope | 0.0006 A/µs – 3 A/µs (min. rise time 10 µs) |
| Dynamic frequency | 50 kHz |
| Synchronous sampling | 500 kHz synchronous |
| Overpower protection | Delay ≥ 404 W, immediate ≥ 440 W |
| Overcurrent protection | Delay ≥ 30.3 A, immediate ≥ 33 A |
| Overvoltage protection | Delay ≥ 152 V, immediate ≥ 165 V |
| Over-temperature protection | ≥ 85 °C |
| Short-circuit (CC / CV / CR) | ≥ 30 A / 0 V / 50 mΩ |
| Test modes | 15: CC, CV, CR, CP, dynamic, OVP, time, OCP, CR-LED, battery, automatic list, short circuit, load effect, combination, list |
| Ripple display / waveform record | Yes / Yes |
| Input terminal impedance | 300 kΩ |
| Fuse | 0.5 A (110 V) / 0.25 A (220 V) |
| Interface | RS232, USB Host, HANDLER |
| Protocol | SCPI |
| Display | 4.3-inch TFT LCD |
| Power requirement | 110 V / 220 V, 50/60 Hz |
| Dimensions (W×H×D) | 215 × 88 × 372 mm |
| Net weight | 4.49 kg |
| Operating temperature | 0 °C – 40 °C |
| Accuracy temperature / calibration | 25 ± 5 °C / 1 / year |
