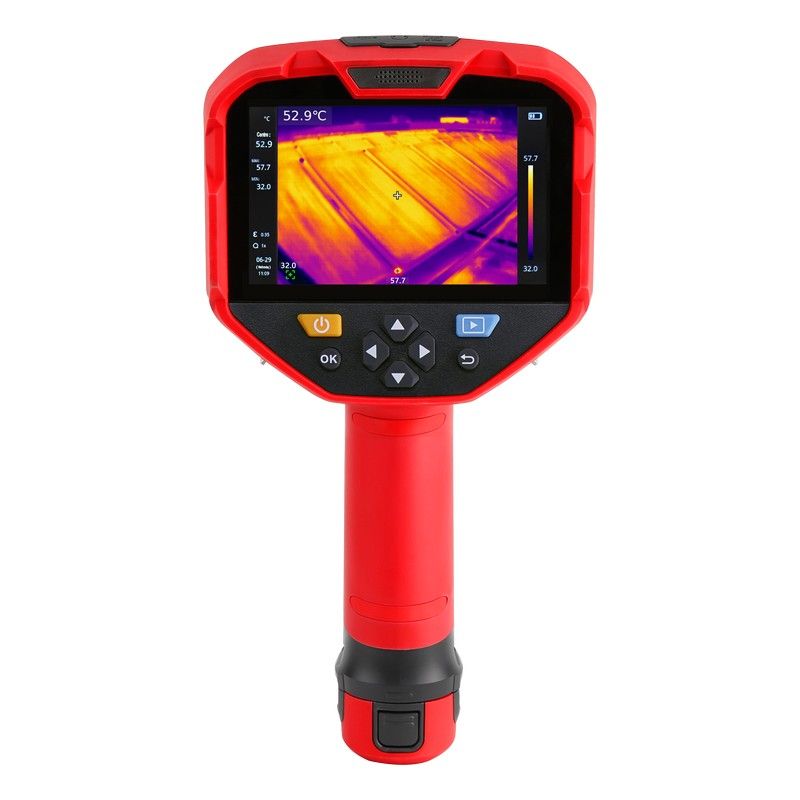

UTi760H 640 Professional Enhanced Thermal Imager
$2 999.00
Professional-grade 640×480 thermal camera with IP54 rating for demanding field conditions. Designed for building inspectors, electricians, and maintenance teams.
In stock
Customer reviews
Reviews only from verified customers
No reviews yet. You can buy this product and be the first to leave a review.
UTi760H 640 Professional Enhanced Thermal Imager
Product Details
UPC: 6935750576014
Manufacturer: UNI-T
Warranty: 3 years
Literature: https://thermal.uni-trend.com/product/uti760h/#Downloadsf2f6-ab52
Equipment Type: Thermal Imager
The 640 Professional Enhanced model is a manual-focus handheld thermal imager with a 640×480 infrared detector and a Super Resolution mode that outputs 1280×960 images, for industrial and building inspection.
Thermal sensitivity is ≤35 mK and the measurement range runs -20 °C to 650 °C (-4 °F to 1202 °F) with ±1.5 °C or ±1.5% accuracy. A 24° × 19.3° field of view pairs with 0.67 mrad spatial resolution and a 30 Hz refresh rate. A manual focus ring sharpens near and distant targets, a 4.3″ capacitive touchscreen (800×480) handles menu navigation and on-screen measurement, and 1× to 6× digital zoom is available. Stills save as radiometric JPEGs and video records to MP4 and UIR with full temperature data.
It suits electrical and panel inspection, mechanical condition monitoring, and building envelope surveys.
Key Features
- IR Resolution=640×480
- Max Temperature=650°C (1202°F)
- Min Temperature=-20°C (-4°F)
- NETD=≤35mK
- Field of View=24° × 19.3°
- Display Size=4.3in
Specifications
| IR Resolution | 640×480 |
| NETD | ≤ 35mK |
| Temperature Range | -20 °C (-4 °F) to 650 °C (1202 °F) |
| Accuracy | ±1.5 °C or ±1.5% (whichever greater) |
| Field of View | 24° × 19.3° |
| Spectral Response | 8 - 14µm |
| Pixel Pitch | 12µm |
| Refresh Rate | 30 Hz |
| Spatial Resolution | 0.67mrad |
| Focus | Manual Focus |
| Digital Zoom | 1x - 6x |
| Super Resolution | Yes |
| Image Blending | Yes |
| Isotherm | Yes |
| Image Modes | Thermal, Visual image, T-Mix fusion, PIP |
| Image Format | Radiometric JPEG |
| Video Recording | Yes |
| Video Format | MP4 & UIR |
| On Screen Analyzer | 16 Points/16 Lines/16 Rectangles/16 Circles |
| Digital Camera | 5MP |
| WiFi | Yes |
| Interface | USB-Type-C |
| Data Storage | Built-in 32GB & 32GB SD card |
| Display Type | LCD |
| Display Size | 4.3in |
| Display Resolution | 800×480 |
| Languages | English, French, German, Italian, Spanish, Swedish, Polish, Czech |
| Touch Screen | Yes |
| Battery | 5200 mAh detachable Li-ion battery pack (UT-M17) |
| Battery Life | Approx. 4h (with Wi-Fi off) |
| Weight | 750 g |
| Dimensions | 270 × 130 × 110 mm |
| IP Rating | IP54 |
| Drop Rating | 2m |
