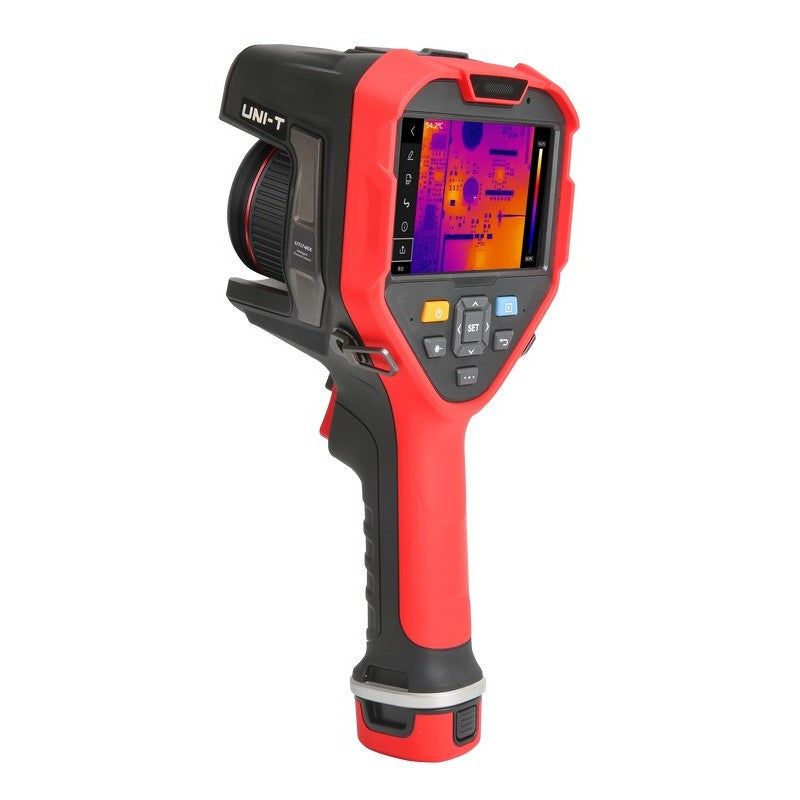

UTi740XH 400 Inspector Series High Temperature Thermal Imager

The 400 Inspector Series High-Temperature model is a 5-inch handheld thermal imager built around a 400×300 radiometric detector and configured for high-temperature measurement.

It measures 1000 °C to 2200 °C (1832 °F to 3992 °F) with ±1.5% accuracy and ≤35 mK thermal sensitivity. A 14.6° × 10.9° field of view pairs with 1.28 mrad spatial resolution and a 30 Hz refresh rate, and a Super Resolution mode outputs 800×600 images. A five-mode focus system (continuous, contrast/semi-auto, laser-assisted, touch, and manual) and a 5″ IPS touch display (1280×720) with HDMI output support detailed work; a 16-point analyzer with region temperature recall and per-region (ROI) emissivity correction handles mixed-material targets. The camera accepts interchangeable lenses (sold separately). Stills save as radiometric JPEGs and video records to MP4 and UIR.

It suits high-temperature processes such as metals, glass, and ceramics production and furnace, kiln, and foundry monitoring.

Key Features

• IR Resolution=400×300
• Max Temperature=2200°C (3992°F)
• Min Temperature=1000°C (1832°F)
• NETD=≤35mK
• Field of View=14.6° × 10.9°
• Display Size=5in

Specifications
