UTi740M Android-only High-Resolution Smartphone Thermal Camera
$799.00
Pocket-sized 400×300 thermal camera that fits in your palm. An always-ready tool for building inspectors, electricians, and maintenance teams.
In stock
Customer reviews
Reviews only from verified customers
No reviews yet. You can buy this product and be the first to leave a review.
UTi740M Android-only High-Resolution Smartphone Thermal Camera
Product Details
UPC: 6935750574003
Manufacturer: UNI-T
Warranty: 3 years
Literature: https://storage.googleapis.com/uni-tdocuments/Thermal%20Camera%20Datasheets/UTi740M%20Data%20Sheet.pdf
Equipment Type: Thermal Imager

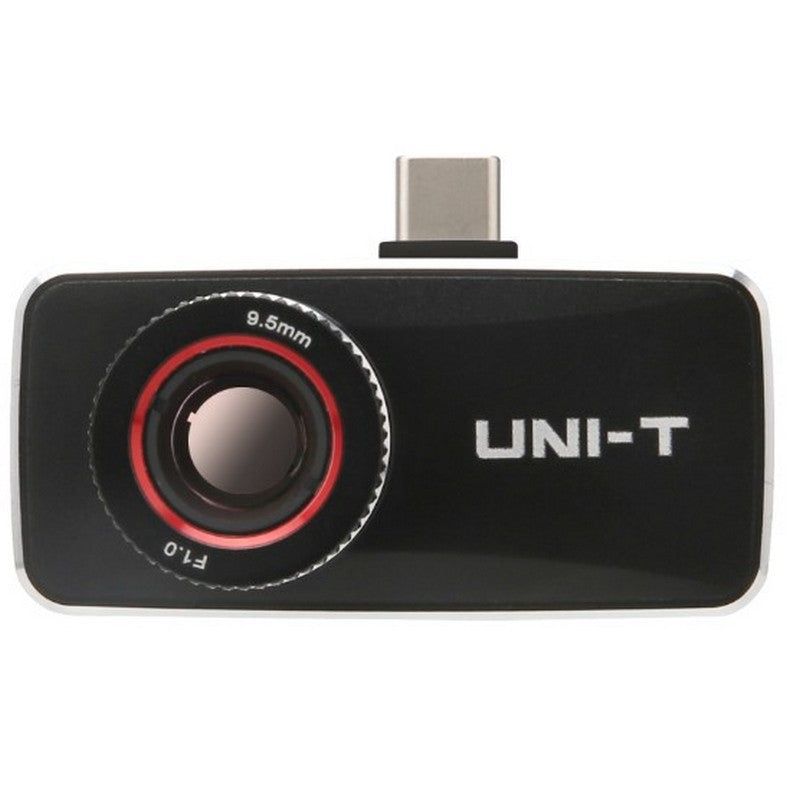

The 400 Smartphone Thermal Camera (Android) is a compact module that connects to an Android device through a USB Type-C port, turning the phone into a thermal camera with a 400×300 infrared detector and a Super Resolution mode that outputs 800×600 images.
Thermal sensitivity is ≤45 mK and the measurement range runs -20 °C to 550 °C (-4 °F to 1022 °F) with ±2 °C or ±2% accuracy. A 29° × 21.5° field of view pairs with 1.26 mrad spatial resolution and a 25 Hz refresh rate. Manual focus, thermal, fusion, and picture-in-picture modes, and an on-screen analyzer (5 points, 1 line, 3 rectangles, 3 circles) run in a companion mobile app, which saves radiometric JPEGs and MP4 video.
It suits field technicians who need a pocket-sized, phone-tethered camera for electrical, HVAC, and building spot checks.
Key Features
- IR Resolution=400×300
- Max Temperature=550°C (1022°F)
- NETD=≤45mK
- Field of View=29° × 21.5°
- OS=Android
- Interface=USB-Type-C
Specifications
| IR Resolution | 400×300 |
| NETD | ≤ 45mK |
| Temperature Range | -20 °C (-4 °F) to 550 °C (1022 °F) |
| Accuracy | ±2 °C or ±2% (whichever greater) |
| Field of View | 29° × 21.5° |
| Spectral Response | 8 - 14µm |
| Pixel Pitch | 12µm |
| Refresh Rate | 25 Hz |
| Spatial Resolution | 1.26mrad |
| Focus | Manual Focus |
| Super Resolution | Yes |
| Image Blending | Yes |
| Isotherm | Yes |
| Image Modes | Thermal, T-Mix fusion, PIP |
| Image Format | Radiometric JPEG |
| Video Recording | Yes |
| Video Format | MP4 |
| On Screen Analyzer | 5 Points/1 Lines/3 Rectangles/3 Circles |
| OS | Android |
| Interface | USB-Type-C |
| Languages | English, Simplified Chinese, French, German, Italian, Spanish, Swedish, Polish, Czech |
| Weight | 46 g |
| Dimensions | 58 × 27 × 28.6 mm |
