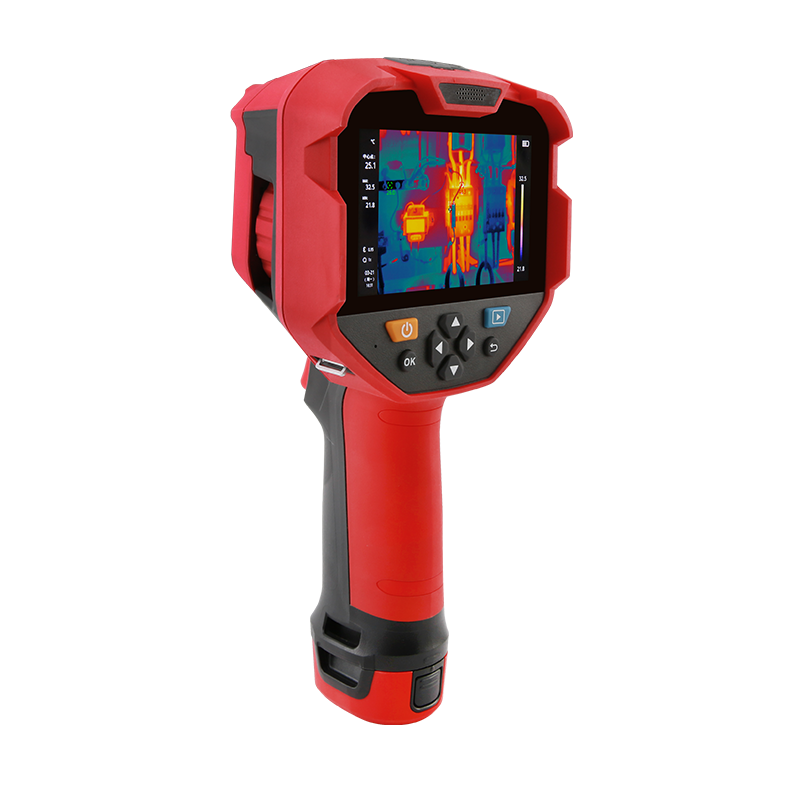

UNI-T UTi740H Professional Enhanced Thermal Camera | Advanced Imaging Solution

The UNI-T UTi740H is a cutting-edge thermal imager designed for professionals requiring high-definition infrared imaging and comprehensive temperature measurement capabilities. With its advanced features and robust design, this thermal camera delivers exceptional performance across a wide range of industrial, research, and diagnostic applications.

Professional-Grade Thermal Imaging Technology

Engineered to meet the most demanding thermal analysis requirements, the UTi740H combines high-resolution imaging, manual focusing, and a comprehensive suite of diagnostic tools. Its expanded temperature measurement range and advanced features make it an indispensable tool for professionals across various industries.

Key Features

• High-Definition 384x288 Pixel Infrared Resolution
• 5MP Digital Camera
• 4.3" IPS Display with 800x480 Resolution
• Manual Focus Technology
• Wide Temperature Measurement Range: -22°F to 1202°F
• Detachable 5200mAh Battery
• Multiple Image Modes: Thermal, Visual, Fusion, PIP
• Advanced On-Screen Analyzer
• Digital Zoom (1x, 2x, 4x)
• QR Code Scanning Capability
• PC and Mobile App Analysis Software

Advanced Thermal Imaging Technology

The UTi740H features a sophisticated infrared detector with 384x288 pixel resolution, providing exceptional thermal visualization for professional diagnostics. Its manual focus technology ensures precise imaging for both near and distant targets, addressing the diverse requirements of different inspection scenarios.

The advanced imaging modes, including Picture-in-Picture (PIP) and visual fusion, allow professionals to overlay thermal and visual images, providing comprehensive context for temperature anomalies. The camera's unique features like digital zoom and isotherm functionality enhance its diagnostic capabilities.

Professional Applications

Electrical Systems Diagnostics

For electrical maintenance professionals, the UTi740H offers comprehensive thermal imaging capabilities. Its high resolution and wide temperature range enable detection of subtle electrical system anomalies, from loose connections to potential overheating issues.

Mechanical Equipment Monitoring

Mechanical engineers can leverage the UTi740H's advanced imaging to perform detailed equipment health assessments. The manual focus and high-resolution imaging reveal intricate heat distribution patterns that can indicate potential mechanical issues before they become critical.

HVAC and Building Diagnostics

Building inspectors and HVAC professionals benefit from the camera's ability to provide precise non-invasive thermal performance assessment. The UTi740H can identify insulation gaps, detect moisture intrusion, and visualize heat transfer anomalies with exceptional accuracy.

Research and Industrial Applications

Researchers and industrial professionals will appreciate the UTi740H's versatility. Its wide temperature measurement range from -22°F to 1202°F, combined with advanced features like QR code scanning and comprehensive analysis software, makes it an invaluable tool for detailed thermal analysis.

Technical Specifications

Parameter	Specification
Infrared Resolution	384 x 288 pixels
Digital Camera Resolution	5MP
Display	4.3" IPS (800 × 480)
Field of View	28°x21°
Thermal Sensitivity (NETD)	<60mK
Spatial Resolution (IFOV)	1.3mrad
Frame Rate	<25Hz
Temperature Range	-22°F to 1202°F (-30°C to 650°C)
Accuracy	±2°C or ±2% whichever is greater
Image Modes	Thermal, Visual Image, Fusion, PIP
Focus	Manual
Battery	Detachable 5200mAh Li-ion battery
Battery Operating Time	Up to 5 hours
Storage	32GB SD card
Protection Rating	IP54, 2m drop proof

Frequently Asked Questions

What makes the UTi740H unique among thermal cameras?

The UTi740H distinguishes itself with a combination of high-resolution 384x288 pixel imaging, manual focus technology, and an extremely wide temperature measurement range from -22°F to 1202°F. Its advanced features like QR code scanning and comprehensive analysis software set it apart from standard thermal imagers.

How versatile is the UTi740H for different professional applications?

With its wide temperature range, multiple imaging modes, and advanced diagnostic tools, the UTi740H is ideal for professionals in electrical, mechanical, HVAC, research, and industrial fields who require precise and comprehensive thermal analysis.

What are the advantages of the manual focus feature?

The manual focus technology allows professionals to precisely adjust the imaging for both near and distant targets, ensuring optimal image clarity and detail across various inspection scenarios. This feature provides greater flexibility compared to fixed-focus thermal cameras.

Professional Insights

"The UTi740H has revolutionized our predictive maintenance approach. Its wide temperature range and high-resolution imaging provide insights we couldn't get with previous thermal cameras."

— Dr. Elena Rodriguez, Senior Research Engineer

"As an industrial inspector, the manual focus and comprehensive features of the UTi740H make it an indispensable tool for our diverse diagnostic needs."

— Michael Chang, Industrial Maintenance Manager

What's in the Box

• UTi740H Thermal Imaging Camera
• Detachable Li-ion Battery Pack
• Battery Charger
• USB Type-C Cable
• 32GB SD Card
• Protective Carrying Case
• Quick Start Guide
• Calibration Certificate

Warranty and Support

The UNI-T UTi740H comes with a comprehensive 1-year warranty covering manufacturing defects and component failures under normal use conditions. Certified with CE, UKCA, FCC, and RoHS standards, the camera is backed by UNI-T's dedicated technical support team.
