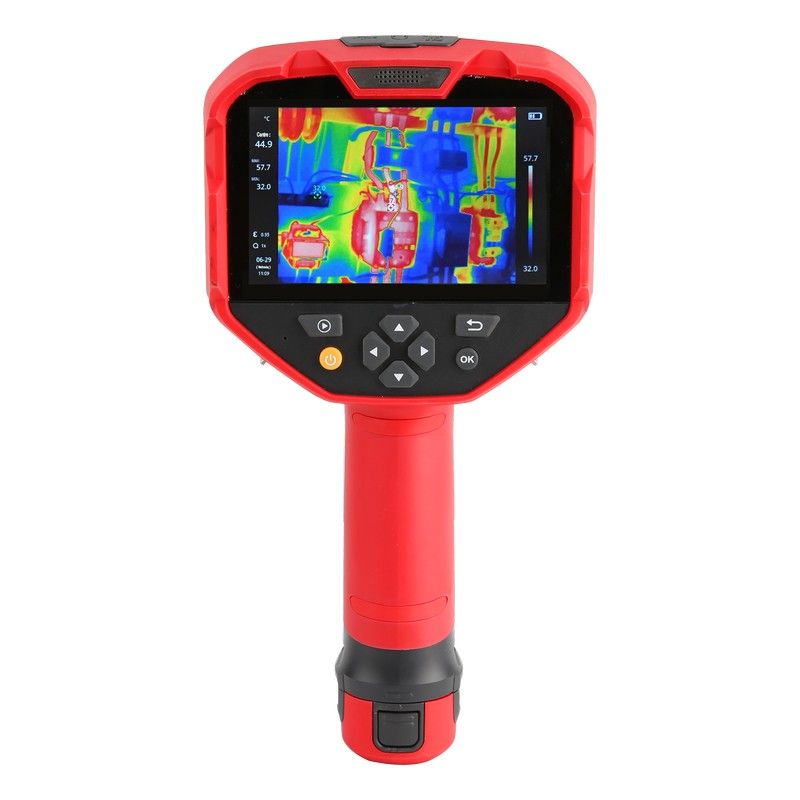

UTi740H 384 H-Series Professional Thermal Imager
$2 099.00
Professional-grade 384×288 thermal camera with IP54 rating for demanding field conditions. Designed for industrial maintenance and reliability professionals.
In stock
Customer reviews
Reviews only from verified customers
No reviews yet. You can buy this product and be the first to leave a review.
UTi740H 384 H-Series Professional Thermal Imager
Product Details
UPC: 6935750570234
Manufacturer: UNI-T
Warranty: 3 years
Literature: https://storage.googleapis.com/uni-tdocuments/Thermal%20Camera%20Datasheets/UTi740H%20Data%20Sheet.pdf
Equipment Type: Thermal Imager
The 384 H-Series is a manual-focus handheld thermal imager with a 384×288 infrared detector, for industrial, electrical, and building inspection.
Thermal sensitivity is ≤60 mK and the measurement range runs -30 °C to 650 °C (-22 °F to 1202 °F) with ±2 °C or ±2% accuracy. A 28° × 21° field of view pairs with 1.3 mrad spatial resolution and a 25 Hz refresh rate. A manual focus ring, 4.3″ IPS display (800×480), and 5 MP visual camera support fusion and picture-in-picture views. An on-screen analyzer (5 points, 1 line, 5 rectangles, 5 circles), Wi-Fi image transfer, radiometric JPEG storage, and a detachable 5200 mAh battery support extended field work.
It suits electrical and panel inspection, mechanical condition monitoring, and building diagnostics.
Key Features
- IR Resolution=384×288
- Max Temperature=650°C (1202°F)
- Min Temperature=-30°C (-22°F)
- NETD=≤60mK
- Field of View=28° × 21°
- Display Size=4.3in
Specifications
| IR Resolution | 384×288 |
| NETD | ≤ 60mK |
| Temperature Range | -30 °C (-22 °F) to 650 °C (1202 °F) |
| Accuracy | ±2 °C or ±2% (whichever greater) |
| Field of View | 28° × 21° |
| Spectral Response | 8 - 14µm |
| Pixel Pitch | 17µm |
| Refresh Rate | 25 Hz |
| Spatial Resolution | 1.3mrad |
| Focus | Manual Focus |
| Digital Zoom | 2x, 4x |
| Image Blending | Yes |
| Isotherm | Yes |
| Image Modes | Thermal, Visual image, T-Mix fusion, PIP |
| Image Format | Radiometric JPEG |
| On Screen Analyzer | 5 Points/1 Line/5 Rectangles/5 Circles |
| Digital Camera | 5MP |
| WiFi | Yes |
| Interface | USB-Type-C |
| Data Storage | 32GB SD card |
| Display Type | IPS LCD |
| Display Size | 4.3in |
| Display Resolution | 800×480 |
| Languages | English, French, German, Italian, Spanish, Swedish |
| Battery | 5200 mAh detachable Li-ion battery pack (UT-M17) |
| Battery Life | Approx. 5h (with Wi-Fi off) |
| Weight | 806 g |
| Dimensions | 266.02 × 126.66 × 136 mm |
| IP Rating | IP54 |
| Drop Rating | 2m |
