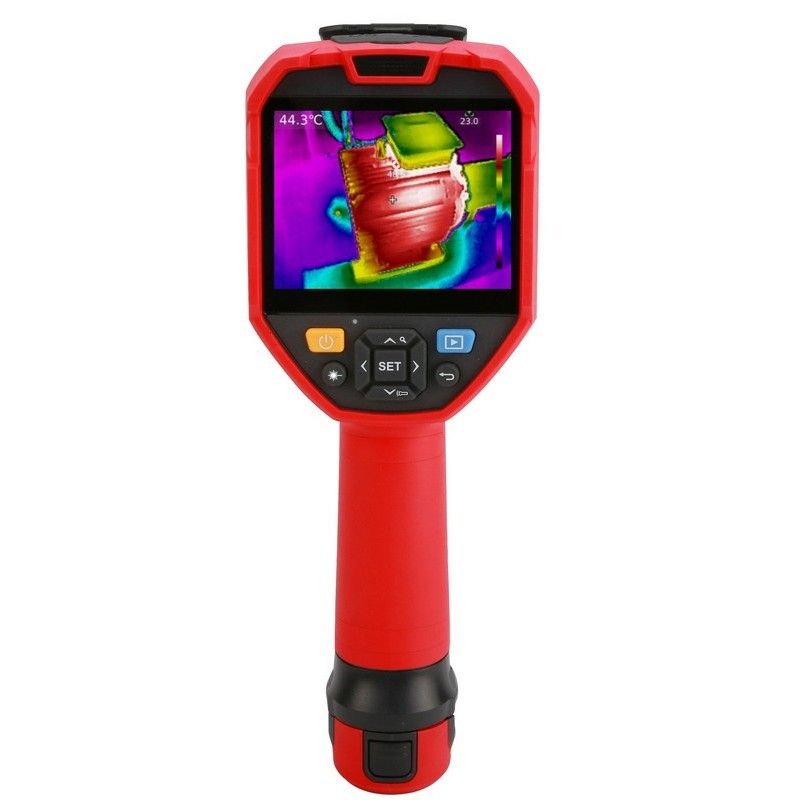

UTi730V 320 Enhanced Series Video Thermal Imager
$1 299.00
320×240 enhanced-series thermal camera with advanced analysis features, IP54. Designed for building inspectors, electricians, and maintenance teams.
In stock
Customer reviews
Reviews only from verified customers
No reviews yet. You can buy this product and be the first to leave a review.
UTi730V 320 Enhanced Series Video Thermal Imager
Product Details
UPC: 6935750573037
Manufacturer: UNI-T
Warranty: 3 years
Literature: https://storage.googleapis.com/uni-tdocuments/Thermal%20Camera%20Datasheets/UTi720V%26UTi730V%20Data%20Sheet.pdf
Equipment Type: Thermal Imager
The 320 Enhanced Series Video model is a focus-free 320×240 thermal imager with on-board video recording, for industrial, electrical, mechanical, and building inspection. Its 76,800-pixel detector is aimed and captured without a focus ring.
Thermal sensitivity is ≤65 mK and the measurement range runs -40 °C to 400 °C (-40 °F to 752 °F) with ±2 °C or ±2% accuracy. A 56° × 42° field of view pairs with 3 mrad spatial resolution and a 9 Hz refresh rate. A 3.5″ IPS touch display (640×480) shows live thermal, visual, T-Mix fusion, and picture-in-picture views, and a 5 MP visual camera documents the scene. Stills save as radiometric JPEGs and video records to AVI; isotherms and an on-screen analyzer support live measurement.
It suits condition monitoring and inspection of panels, motors, pipework, and building envelopes where video documentation is needed.
Key Features
- IR Resolution=320×240
- Max Temperature=400°C (752°F)
- Min Temperature=-40°C (-40°F)
- NETD=≤65mK
- Field of View=56° × 42°
- Display Size=3.5in
Specifications
| IR Resolution | 320×240 |
| NETD | ≤ 65mK |
| Temperature Range | -40 °C (-40 °F) to 400 °C (752 °F) |
| Accuracy | ±2 °C or ±2% (whichever greater) |
| Field of View | 56° × 42° |
| Spectral Response | 8 - 14µm |
| Pixel Pitch | 12µm |
| Refresh Rate | 9 Hz |
| Spatial Resolution | 3mrad |
| Focus | Focus Free |
| Digital Zoom | 2x, 4x |
| Image Blending | Yes |
| Isotherm | Yes |
| Image Modes | Thermal, Visual image, T-Mix fusion, PIP |
| Image Format | Radiometric JPEG |
| Video Recording | Yes |
| Video Format | AVI |
| Laser Type | Single Laser |
| Laser LRF | Yes |
| Laser Pointer | Yes |
| Flashlight | Yes |
| On Screen Analyzer | 5 Points/1 Line/3 Rectangles/3 Circles |
| Digital Camera | 5MP |
| WiFi | Yes |
| Interface | USB-Type-C |
| Data Storage | 32GB SD card |
| Display Type | IPS LCD |
| Display Size | 3.5in |
| Display Resolution | 640×480 |
| Languages | English, French, German, Italian, Spanish, Swedish, Polish, Czech |
| Touch Screen | Yes |
| Battery | 5200 mAh detachable Li-ion battery pack (UT-M17) |
| Battery Life | ≥ 4h (with Wi-Fi off) |
| Weight | 654 g |
| Dimensions | 260 × 97 × 99 mm |
| IP Rating | IP54 |
| Drop Rating | 2m |
