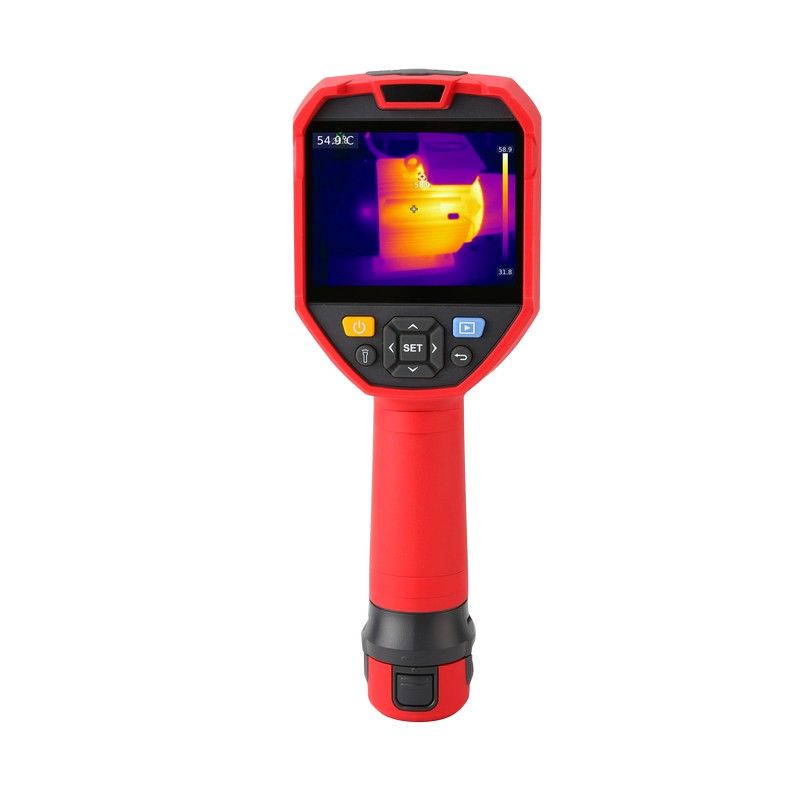

UTi730E 320 Enhanced Series Thermal Imager
$799.00
320×240 enhanced-series thermal camera with advanced analysis features, IP54. Designed for industrial professionals performing predictive maintenance, electrical inspection, and process monitoring.
In stock
Customer reviews
Reviews only from verified customers
No reviews yet. You can buy this product and be the first to leave a review.
UTi730E 320 Enhanced Series Thermal Imager
Product Details
UPC: 6935750573020
Manufacturer: UNI-T
Warranty: 3 years
Literature: https://storage.googleapis.com/uni-tdocuments/Thermal%20Camera%20Datasheets/UTi730E%20Data%20Sheet.pdf
Equipment Type: Thermal Imager
The 320 Enhanced Series is a focus-free 320×240 thermal imager for everyday industrial and building diagnostics. Its 76,800-pixel detector is aimed and captured without a focus ring, so a usable radiometric image is recorded the moment the camera is pointed.
Thermal sensitivity is ≤65 mK and the measurement range runs -40 °C to 400 °C (-40 °F to 752 °F) with ±2 °C or ±2% accuracy. A 56° × 42° field of view pairs with 3 mrad spatial resolution and a 9 Hz refresh rate. A 3.5″ IPS display (640×480) shows live thermal, visual, fusion, and picture-in-picture views, and a 2 MP visual camera documents the scene. An on-screen analyzer (5 points, 1 line, 3 rectangles, 3 circles), isotherms, and Wi-Fi transfer of radiometric JPEGs support reporting.
It suits inspection of panels, motors, pipework, and building envelopes.
Key Features
- IR Resolution=320×240
- Max Temperature=400°C (752°F)
- Min Temperature=-40°C (-40°F)
- NETD=≤65mK
- Field of View=56° × 42°
- Display Size=3.5in
Specifications
| IR Resolution | 320×240 |
| NETD | ≤ 65mK |
| Temperature Range | -40 °C (-40 °F) to 400 °C (752 °F) |
| Accuracy | ±2 °C or ±2% (whichever greater) |
| Field of View | 56° × 42° |
| Spectral Response | 8 - 14µm |
| Pixel Pitch | 12µm |
| Refresh Rate | 9 Hz |
| Spatial Resolution | 3mrad |
| Focus | Focus Free |
| Digital Zoom | 2x, 4x |
| Image Blending | Yes |
| Isotherm | Yes |
| Image Modes | Thermal, Visual image, Fusion, PIP |
| Image Format | Radiometric JPEG |
| Flashlight | Yes |
| On Screen Analyzer | 5 Points/1 Line/3 Rectangles/3 Circles |
| Digital Camera | 2MP |
| WiFi | Yes |
| Interface | USB-Type-C |
| Data Storage | 16GB Micro SD card |
| Display Type | IPS LCD |
| Display Size | 3.5in |
| Display Resolution | 640×480 |
| Languages | English, French, German, Spanish, Russian |
| Battery | 5200 mAh detachable Li-ion battery pack (UT-M17) |
| Battery Life | ≥ 4h (with Wi-Fi off) |
| Weight | 630 g |
| Dimensions | 260 × 97 × 99 mm |
| IP Rating | IP54 |
| Drop Rating | 2m |
| Storage Temperature | -10 °C ~ 60 °C (14 °F ~ 140 °F) |
