Overview

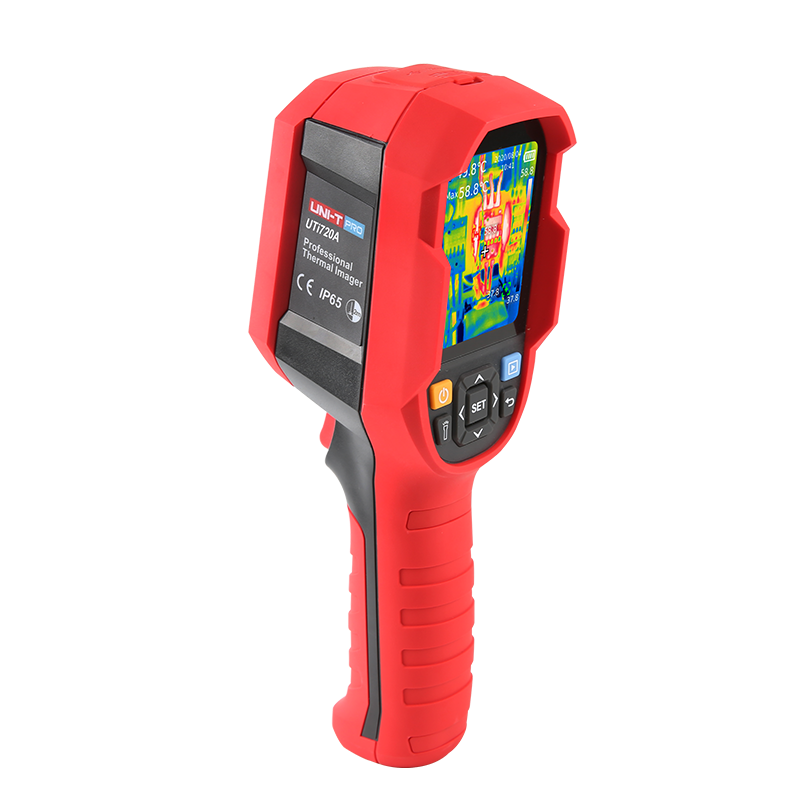

The UNI-T UTi720A Professional Thermal Imager delivers exceptional thermal visualization capabilities for demanding industrial applications. With its high-resolution 256×192 infrared detector and superior 50mK thermal sensitivity, this rugged diagnostic tool provides precise temperature mapping for critical diagnostic and preventative maintenance applications.

Designed for professionals who require comprehensive thermal analysis, the UTi720A provides reliable thermal imaging across electrical systems, mechanical equipment, HVAC installations, and industrial processes. Its IP65 rating and 2-meter drop-proof construction ensure dependable performance even in challenging environments.

Key Features

• High-resolution 256×192 pixel infrared detector for detailed thermal imagery
• Superior 50mK thermal sensitivity detects subtle temperature variations
• Thermal imaging mode with high clarity visualization
• Comprehensive temperature measurement range: -4°F to 752°F (-20°C to 400°C)
• IP65 rated for protection against dust and water
• Rugged construction withstands drops from up to 2 meters
• Extended battery life up to 8 hours on a single charge
• JPEG image storage with SD card functionality
• Wide 56°×42° field of view for capturing larger areas
• PC analysis software with real-time image projection capability
• Bright LED flashlight for working in low-light conditions
• 2.8" TFT LCD display with 320×240 resolution

UNI-T UTi720A Details

Advanced Thermal Imaging Technology

The UTi720A's high-performance 256×192 infrared detector provides exceptional thermal detail for professional diagnostics. With 49,152 temperature measurement points, this thermal imager captures significantly more information than entry-level models, allowing you to identify potential issues with greater precision.

The impressive 50mK thermal sensitivity enables detection of minimal temperature differences, making it possible to spot developing problems before they cause critical failures. This level of sensitivity transforms the UTi720A from a simple measurement tool into a sophisticated diagnostic instrument that helps prevent costly downtime.

Comprehensive Measurement Capabilities

The UTi720A offers multiple temperature measurement options, including center-point temperature, high/low temperature tracking, and region of interest (ROI) analysis. The device lets users add up to three additional measurement points for simultaneous monitoring of multiple areas of interest.

With its wide temperature range from -4°F to 752°F (-20°C to 400°C), the UTi720A can handle diverse applications from building inspections to industrial equipment monitoring. The ±2°C or ±2% accuracy ensures reliable temperature readings for professional reporting and analysis.

Rugged Reliability for Field Operations

Built for professionals working in demanding environments, the UTi720A features an IP65 rating that protects against dust and water jets. The robust construction can withstand drops from heights up to 2 meters, ensuring reliability in industrial settings.

The extended battery life provides approximately 8 hours of continuous operation on a single charge, supporting full-day inspection routes without interruption. This combination of durability and longevity makes the UTi720A an ideal companion for field technicians and maintenance professionals.

Enhanced Functionality and Convenience

The UTi720A stores thermal images in JPEG format on a microSD card, allowing for easy transfer to computers for analysis and reporting. The included PC software provides real-time image projection, thermal image downloading, and advanced analysis capabilities.

Additional features include a high-brightness LED flashlight for working in poorly lit environments, auto power-off options, adjustable emissivity settings, and customizable high/low temperature alarms. These practical features enhance usability in real-world professional applications.

Professional Applications

Electrical Systems Diagnostics

For electrical maintenance professionals, the UTi720A excels at identifying potential failures before they occur. The high-resolution imaging captures subtle temperature variations in electrical panels, connections, and complex electrical infrastructure. Technicians can visualize heat signatures indicating loose connections, overloading, or developing electrical issues with unprecedented clarity, preventing unexpected outages and reducing fire risks.

Mechanical Equipment Monitoring

Mechanical engineers and maintenance teams leverage the UTi720A to perform comprehensive equipment health assessments. The thermal imager reveals complex heat distribution patterns in motors, bearings, and rotating equipment, enabling effective predictive maintenance strategies. By identifying abnormal heating patterns early, you can schedule maintenance before catastrophic failures occur, minimizing unexpected downtime and extending equipment lifecycle.

HVAC and Building Diagnostics

Building inspectors and HVAC professionals benefit from the UTi720A's ability to non-invasively assess thermal performance. The camera identifies insulation gaps, detects moisture intrusion, and visualizes heat transfer anomalies with remarkable precision. Its detailed thermal mapping facilitates more accurate diagnostic reporting and targeted repair recommendations.

Industrial Process Control

Manufacturing and industrial process engineers use the UTi720A to monitor equipment performance, identify potential bottlenecks, and ensure consistent thermal conditions. The detailed thermal mapping helps optimize production processes, maintain quality control, and prevent equipment failures through early detection of temperature-related issues, ultimately improving operational efficiency and product quality.

Technical Specifications

Parameter	Specification
Infrared Resolution	256 × 192 pixels
Thermal Sensitivity (NETD)	<50mK
Temperature Range	-4°F to 752°F (-20°C to 400°C)
Field of View	56°×42°
Frame Rate	25Hz
Image Modes	Thermal
Protection Rating	IP65
Battery Life	Approximately 8 hours
Image Format	JPEG
Display	2.8" TFT LCD (320×240)
On-screen Analyzer	Center point + 3 additional points
Pixel Size	12μm
Lens Focal Length	3.2mm
Focus	Fixed focus (focus-free)
Accuracy	±2°C or ±2% (whichever is greater)
Color Palettes	Iron, Rainbow, White Hot, Red Hot, Black Hot, Lava, Rainbow HC
Storage	Micro SD card
Interface	USB Type-C
Drop Proof	2m
Operating Temperature	-10°C to 50°C (14°F to 122°F)
Operating Humidity	10%~95%RH (non-condensing)
Battery	Fixed Li-ion battery (3.6V 5000mAh)
Charging Time	<5 hours
Auto Power Off	5 minutes/10 minutes/30 minutes/Off (selectable)

Package Contents

• UNI-T UTi720A Thermal Imaging Camera
• USB Type-C Charging Cable
• Micro SD Card
• User Manual
• Calibration Certificate

UNI-T Thermal Camera Comparison

Feature	UTi120B	UTi712S	UTi720A	UTi260B
Resolution	120×90	120×90	256×192	256×192
Thermal Sensitivity (NETD)	60mK	60mK	50mK	60mK
Frame Rate	25Hz	25Hz	25Hz	25Hz
Field of View	50°×38°	50°×38°	56°×42°	56°×42°
Temperature Range	-4°F to 752°F	-4°F to 752°F	-4°F to 752°F	-4°F to 1022°F
Image Modes	Thermal, Visual, Fusion	Thermal	Thermal	Thermal, Visual, Fusion, PIP
Image Format	BMP	BMP	JPEG	BMP
IP Rating	IP65	IP54	IP65	IP65
Battery Life	~6 hours	~8 hours	~8 hours	~6 hours

Frequently Asked Questions

How does the UNI-T UTi720A differ from entry-level thermal cameras?

The UTi720A offers significantly higher resolution (256×192 pixels), superior thermal sensitivity (50mK), and advanced detection capabilities. These features provide more detailed thermal information compared to basic thermal imagers, allowing professionals to detect subtle temperature variations and diagnose problems with greater accuracy.

What makes the UNI-T UTi720A suitable for professional use?

Its combination of high-resolution imaging, superior thermal sensitivity, rugged IP65 construction, and extended battery life make the UTi720A ideal for professionals who require comprehensive thermal diagnostic capabilities. The ability to withstand challenging industrial environments while delivering precise thermal data makes it a reliable tool for preventive maintenance programs and thorough equipment inspections.

Can the UNI-T UTi720A withstand harsh industrial environments?

Yes, the IP65 rating ensures protection against dust and water jets, while the robust design supports reliable operation after drops of up to 2 meters. This rugged construction makes the UTi720A suitable for use in manufacturing facilities, outdoor installations, and other demanding environments.

How accurate are the temperature measurements from the UNI-T UTi720A?

The UTi720A provides temperature measurements with an accuracy of ±2°C or ±2% (whichever is greater) across its entire measurement range. This professional-grade accuracy supports confident decision-making when evaluating equipment condition and potential failure points.

What software is available for deeper analysis of thermal images?

The UTi720A comes with PC analysis software that supports real-time image projection, thermal image downloading, and advanced analysis capabilities. This software extends the functionality of the thermal imager, allowing for more detailed reporting and trend analysis.

How long does the battery last during typical inspection routes?

The 5000mAh Li-ion battery provides approximately 8 hours of continuous operation, supporting full-day inspection routes without requiring recharging. This extended battery life enhances productivity for maintenance teams and field technicians.

Customer Testimonials

"The UNI-T UTi720A has transformed our predictive maintenance program. The detailed thermal imaging allows us to detect potential equipment failures weeks before they would have been visible through traditional inspection methods. This has directly translated to less downtime and significant cost savings." — Elena R., Senior Maintenance Engineer

"As an electrical inspector, I appreciate the UTi720A's high resolution and sensitivity. It provides clear thermal information that makes my reports more comprehensive and actionable. The rugged construction has also proven itself valuable on multiple construction sites." — Michael C., Electrical Systems Inspector

"We've implemented the UTi720A in our HVAC service department with impressive results. The high sensitivity lets us
