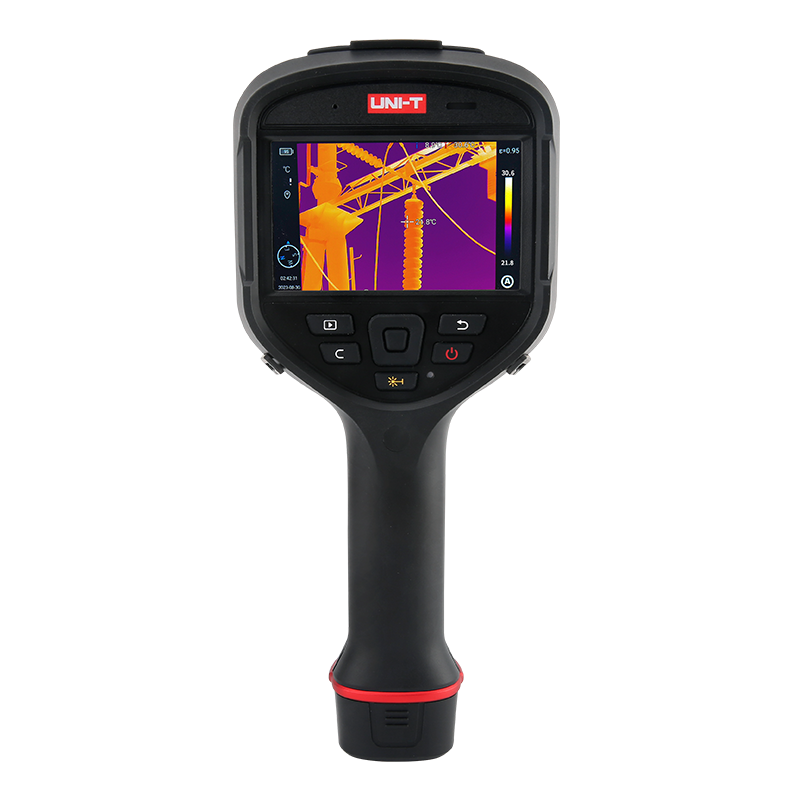

The UNI-T UTi384J is a high-precision thermal imaging solution designed specifically for professional industrial applications. Featuring a sophisticated 384×288 pixel infrared detector, 8MP digital camera, and advanced multiple focusing modes, this thermal imager provides unparalleled thermal visualization and diagnostic capabilities with its classic "hammer" design.
Engineered with cutting-edge thermal imaging technology, the UTi384J delivers exceptional performance across diverse industrial and diagnostic fields. Its 30Hz infrared frame rate enables fast and accurate temperature data collection, making it an indispensable tool for professionals who demand the highest level of thermal analysis.
The UTi384J represents the pinnacle of thermal imaging technology, featuring a sophisticated infrared detector with exceptional capabilities. Its 30Hz frame rate and ≤40mK thermal sensitivity enable precise temperature detection across a wide range of applications. The super resolution feature enhances image clarity, upgrading the base 384×288 pixel resolution to an impressive 768×576 pixels.
Multiple focusing modes provide unprecedented flexibility, allowing users to capture perfect thermal images in various scenarios. From manual adjustments to touch autofocus and continuous tracking, the UTi384J adapts to the most challenging diagnostic environments.
| Feature | UTi384J | UTi640J |
|---|---|---|
| Infrared Resolution | 384 × 288 pixels | 640 × 480 pixels |
| Super Resolution | 768 × 576 pixels | 1280 × 960 pixels |
| Digital Camera Resolution | 8MP | 13MP |
| Digital Zoom | 1.1x to 10x | 1.1x to 20x |
| On-Screen Analyzer | 10 Points/10 Lines/10 Rectangles/10 Circles | 16 Points/16 Lines/16 Rectangles/16 Circles |
| Operating Time | ≥5 hours (with Wi-Fi off) | ≥4 hours (with Wi-Fi off) |
The UTi640J represents a significant upgrade from the UTi384J, offering higher resolution, more advanced imaging capabilities, and enhanced analytical tools. While both cameras share similar core technologies, the UTi640J provides professionals with more detailed thermal and visual imaging.
Maintenance professionals can leverage the UTi384J's advanced thermal imaging to detect potential equipment failures before they occur. The high-resolution imaging and multiple lens options enable comprehensive analysis of machinery performance across various industrial settings.
Electrical engineers can use the thermal imager to identify hotspots, loose connections, and potential electrical hazards. The wide temperature measurement range and high sensitivity make it ideal for detecting subtle temperature variations in electrical systems.
Manufacturing quality control teams can utilize the UTi384J's advanced features like panoramic stitching and detailed temperature tracking to ensure consistent production processes and identify potential manufacturing defects.
Researchers benefit from the camera's comprehensive annotation capabilities, multiple image modes, and extensive color palettes. The ability to capture thermal data with 8MP visual images provides unparalleled insights for scientific and technical investigations.
IMPORTANT NOTE: Lenses must be factory calibrated. If purchasing additional lenses after the initial camera purchase, the device will need to be sent back to the factory for calibration.
| Lens Model | Focal Length | Field of View | Purchase Link |
|---|---|---|---|
| Standard Lens | 10.5mm | 25°×19° | Included with Camera |
| UT-Z018 Wide-angle Lens | 6.0mm | 44°×34° | Purchase Wide-angle Lens |
| UT-Z019 Medium Tele Lens | 17.5mm | 15°×11° | Purchase Medium Tele Lens |
| UT-Z020 Tele Lens | 37.5mm | 7°×5° | Purchase Tele Lens |
| UT-Z021 High-Temp Lens | - | 25°×19° | Purchase High-Temp Lens |
Lens Calibration Warning: Each additional lens requires factory calibration. If you purchase a lens after acquiring the camera, the device must be sent back to the factory to ensure proper calibration and optimal performance.
| Parameter | Specification |
|---|---|
| Display | 4.3" LCD Touch (800×480) |
| Infrared Resolution | 384 × 288 pixels |
| Super Resolution | 768 × 576 pixels |
| Spectral Range | 7.5—14μm |
| Pixel Size | 12μm |
| Frame Rate | 30Hz |
| Thermal Sensitivity (NETD) | ≤40mK |
| Focus Modes | Manual / Automatic / Touch / Continuous |
| Temperature Measurement Range | -40°C to 150°C (-40°F to 302°F) 0°C to 650°C (32°F to 1202°F) 500°C to 2000°C (932°F to 3632°F) with High-Temp Lens |
| Accuracy | ±2°C or ±2% whichever is greater |
| Digital Camera Resolution | 8MP |
| Digital Zoom | 1.1x to 10x |
| Battery | 3350mAh Detachable Li-ion Battery Pack |
| Operating Time | ≥5 hours (with Wi-Fi off) |
| Storage | 64GB Internal + 64GB Micro SD Card |
| Protection Rating | IP54, 2m Drop Resistance |
"The UTi384J has transformed our predictive maintenance approach. Its ability to switch between different lenses and capture incredibly detailed thermal images has helped us identify potential equipment failures weeks before they would have been visible with our previous tools."
— Michael Rodriguez, Senior Maintenance Engineer, Industrial Solutions Inc."As an electrical systems inspector, I'm impressed by the UTi384J's precision. The super resolution and multiple focusing modes allow me to capture thermal details I never thought possible. The annotation features have significantly improved our diagnostic reporting."
— Elena Chen, Lead Electrical Systems Inspector, National Grid Technologies"We use the UTi384J in our R&D lab for thermal performance analysis. The interchangeable lens system and comprehensive imaging modes provide us with unprecedented insights into material and component thermal characteristics."
— Dr. Alexander Wong, Research Director, Advanced Materials LaboratoryThe UTi384J stands out with its 384×288 pixel infrared resolution, super resolution upgrade to 768×576 pixels, and multiple focusing modes. Its interchangeable lens system and comprehensive feature set make it a versatile tool for professionals across various industries.
The UTi384J features an automatic lens recognition system that allows users to switch between different lens types for various applications. However, it's crucial to note that any additional lenses must be factory calibrated to ensure optimal performance.
The camera offers four focusing modes: Manual, Automatic, Touch autofocus, and Continuous autofocus. This flexibility allows users to quickly adapt to different inspection scenarios, from close-up detailed examinations to capturing thermal data of distant targets.
Yes, the camera is designed for professional use with an IP54 rating and 2-meter drop resistance. Its robust construction, combined with a 5-hour battery life and comprehensive protection features, makes it suitable for industrial and field applications.
The camera supports comprehensive annotation with text, voice, and image options. This feature allows professionals to add detailed context to their thermal images, improving documentation and analysis capabilities.
The UNI-T UTi384J comes with comprehensive support and multiple language options. Certified with international standards, the thermal imager is backed by UNI-T's commitment to quality and professional-grade performance.
