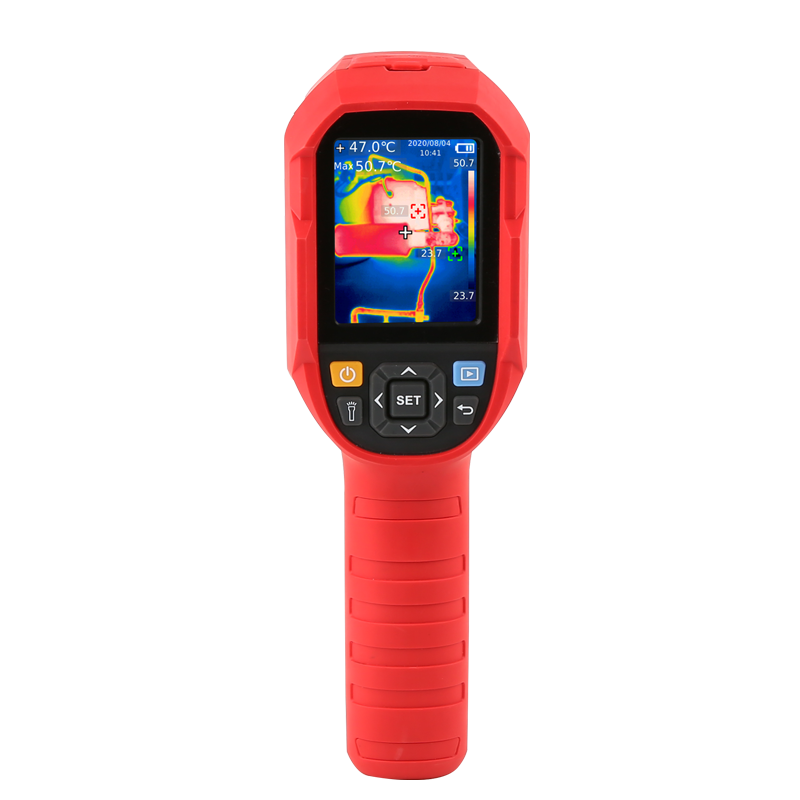

UNI-T UTi260B High-Performance Thermal Imager | Extended Temperature Range

The UNI-T UTi260B is a specialized thermal imaging camera designed for professionals requiring exceptional temperature measurement capabilities across a wide range of challenging applications. With its extended temperature range and advanced imaging features, this thermal imager provides critical insights for high-temperature industrial, research, and diagnostic scenarios.

Advanced Thermal Imaging for Extreme Environments

Engineered to excel in demanding thermal measurement applications, the UTi260B stands out with its ability to measure temperatures up to 1022°F. Its sophisticated design combines high-resolution imaging with robust performance, making it an indispensable tool for professionals who need precise thermal analysis in extreme conditions.

Key Features

• High-Resolution 256x192 Pixel Infrared Detector
• Extended Temperature Range to 1022°F
• Multiple Image Modes: Thermal, Visual, Fusion, PIP
• Wide 56°x42° Field of View
• IP65 Rated for Rugged Industrial Use
• Comprehensive Thermal Diagnostic Capabilities
• Advanced Imaging Fusion Technology
• Robust Construction for Challenging Environments
• BMP Image Storage Format
• Professional-Grade Thermal Analysis

Advanced Thermal Imaging Technology

The UTi260B leverages a sophisticated infrared detector with 256x192 pixel resolution, providing exceptional thermal detail for critical diagnostic applications. Its standout feature is the extended temperature measurement range, capable of accurately capturing temperatures up to 1022°F, which sets it apart from standard thermal imagers.

The multiple imaging modes, including Picture-in-Picture (PIP) and Fusion, allow professionals to overlay thermal and visual images, providing comprehensive context for temperature anomalies. This multi-modal approach transforms thermal imaging from a simple temperature measurement tool to a sophisticated diagnostic instrument.

Professional Applications

High-Temperature Industrial Processes

In industries involving extreme heat processes such as metallurgy, glass manufacturing, and high-temperature chemical processing, the UTi260B provides critical thermal monitoring. Its ability to measure temperatures up to 1022°F makes it uniquely suited for applications where standard thermal cameras fall short.

Electrical Systems in Extreme Conditions

Electrical systems operating in high-temperature environments benefit from the UTi260B's extended range. Power generation facilities, heavy industrial electrical infrastructure, and high-voltage systems can be comprehensively monitored, identifying potential failure points before they become critical issues.

Research and Scientific Applications

Researchers and scientific professionals require precise thermal imaging across a wide temperature spectrum. The UTi260B's exceptional temperature range and high-resolution imaging provide invaluable insights in fields such as materials science, thermal engineering, and advanced industrial research.

Advanced Mechanical Diagnostics

Mechanical systems operating under extreme conditions demand sophisticated thermal monitoring. The UTi260B enables detailed thermal analysis of high-temperature machinery, helping engineers and maintenance professionals identify potential failures, assess thermal performance, and optimize equipment operation.

Technical Specifications

Parameter	Specification
Infrared Resolution	256 x 192 pixels
Thermal Sensitivity (NETD)	<60mK
Temperature Range	-4°F to 1022°F
Field of View	56°x42°
Frame Rate	25Hz
Image Modes	Thermal, Visual, Fusion, PIP
Protection Rating	IP65
Battery Life	Approximately 6 hours
Image Format	BMP

Frequently Asked Questions

What makes the UTi260B unique compared to other thermal cameras?

The UTi260B stands out with its extended temperature range of up to 1022°F, making it ideal for high-temperature industrial applications where standard thermal imagers are insufficient. Its high-resolution 256x192 pixel imaging provides detailed thermal analysis in extreme environments.

How reliable is the UTi260B in challenging industrial environments?

With an IP65 rating, the UTi260B is designed to withstand dust, water jets, and harsh industrial conditions. Its robust construction ensures reliable performance in challenging environments, from metallurgy to high-temperature research facilities.

Can the UTi260B be used for precise scientific research?

Absolutely. The camera's extended temperature range, high-resolution imaging, and multiple image modes make it an excellent tool for scientific research requiring detailed thermal analysis across a wide temperature spectrum.

Professional Insights

"The UTi260B has been a game-changer for our metallurgical research. Its ability to accurately measure temperatures up to 1022°F allows us to capture thermal data in processes where previous thermal cameras were inadequate."

— Dr. Jennifer Chen, Materials Science Researcher

"In our high-voltage electrical testing facility, the UTi260B provides the precise thermal imaging we need. Its extended temperature range and high-resolution imaging have significantly improved our diagnostic capabilities."

— Mark Rodriguez, Senior Electrical Engineer

What's in the Box

• UTi260B Thermal Imaging Camera
• Protective Carrying Case
• USB Charging Cable
• Quick Start Guide
• Calibration Certificate

Warranty and Support

The UNI-T UTi260B comes with a comprehensive 1-year warranty covering manufacturing defects and component failures under normal use conditions. Our dedicated technical support team is available to provide expert assistance and ensure optimal performance.

UNI-T Thermal Camera Comparison

Feature	UTi120B	UTi712S	UTi720A	UTi260B
Resolution	120x90	120x90	256x192	256x192
Thermal Sensitivity (NETD)	60mK	60mK	50mK	60mK
Frame Rate	25Hz	25Hz	25Hz	25Hz
Field of View	50°x38°	50°x38°	56°x42°	56°x42°
Temperature Range	-4°F to 752°F	-4°F to 752°F	-4°F to 752°F	-4°F to 1022°F
Image Modes	Thermal, Visual, Fusion	Thermal	Thermal, Visual, Fusion, PIP	Thermal, Visual, Fusion, PIP
Image Format	BMP	BMP	JPEG	BMP
IP Rating	IP65	IP54	IP65	IP65
Battery Life	~6 hours	~8 hours	~8 hours	~6 hours
