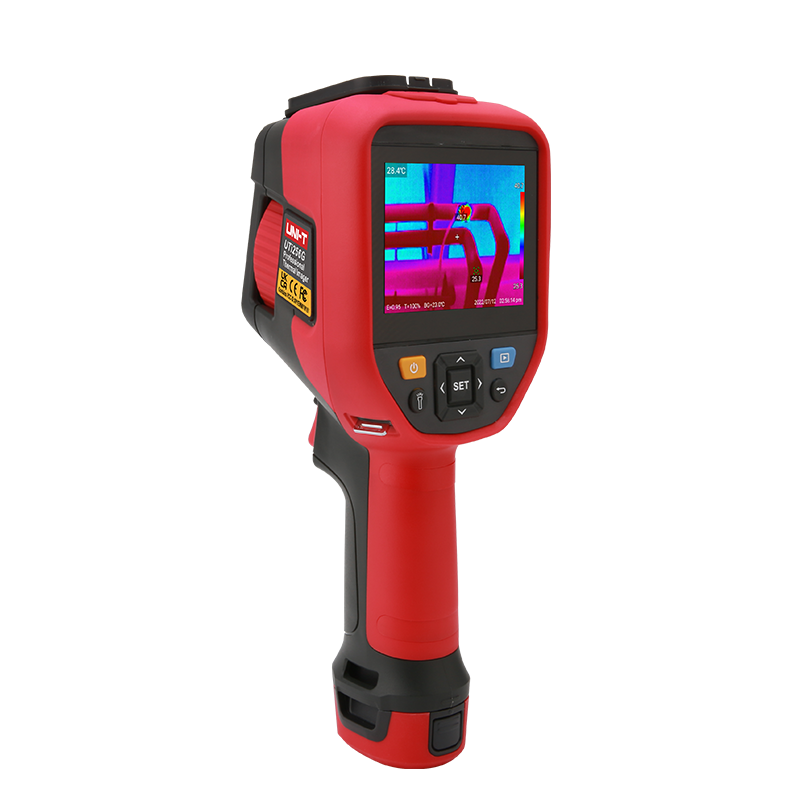

UNI-T UTi256G G-Series Thermal Imager | High-Precision Thermal Diagnostics

The UNI-T UTi256G G-Series Thermal Imager represents a breakthrough in professional thermal imaging technology. Featuring an advanced 256x192 pixel infrared detector and exceptional 40mK thermal sensitivity, this thermal camera delivers unparalleled precision for the most demanding diagnostic applications.

Advanced Thermal Visualization for Professional Diagnostics

Designed for professionals who require the highest level of thermal detail, the UTi256G combines cutting-edge imaging technology with a comprehensive suite of diagnostic features. Its compact design and powerful capabilities make it an indispensable tool for technical professionals across multiple industries.

Key Features

• High-Resolution 256x192 Pixel Infrared Detector
• Exceptional 40mK Thermal Sensitivity
• 3.5" IPS Touch Display with 640x480 Resolution
• Extended Temperature Range to 1022°F
• Advanced Image Modes: Thermal, Visual, Fusion, PIP
• Manual Focus Capability
• Swappable Battery
• JPEG Image Storage Format
• Advanced Image Blending
• Comprehensive Diagnostic Tools

Advanced Thermal Imaging Technology

The UTi256G leverages a sophisticated infrared detector with 256x192 pixel resolution, providing the most detailed thermal visualization in its class. Its exceptional 40mK thermal sensitivity enables the detection of extremely subtle temperature variations, making it ideal for precision diagnostics.

The advanced imaging modes, including Picture-in-Picture (PIP) and visual fusion, allow professionals to overlay thermal and visual images with unprecedented clarity. The manual focus capability provides additional flexibility for capturing the most precise thermal details in various environments.

Professional Applications

Advanced Electrical Systems Diagnostics

For electrical maintenance professionals, the UTi256G offers extraordinary thermal imaging capabilities. Its high-resolution detector and exceptional sensitivity enable detection of the most minute electrical system anomalies, from subtle temperature variations in connections to developing insulation issues.

Precision Mechanical Equipment Monitoring

Mechanical engineers can leverage the UTi256G's advanced imaging to perform the most detailed equipment health assessments. The ultra-high-resolution imaging reveals intricate heat distribution patterns that indicate potential mechanical issues before they become critical.

Comprehensive HVAC and Building Diagnostics

Building inspectors and HVAC professionals benefit from the camera's ability to provide the most precise non-invasive thermal performance assessment. The UTi256G can identify the most subtle insulation gaps, moisture intrusion, and heat transfer anomalies with exceptional accuracy.

Research and Scientific Applications

Researchers and scientific professionals require the most precise thermal imaging available. The UTi256G's combination of high resolution, exceptional sensitivity, and advanced imaging modes makes it an invaluable tool for detailed thermal analysis across various scientific disciplines.

Technical Specifications

Parameter	Specification
Infrared Resolution	256 x 192 pixels
Display	3.5" IPS Touch (640 × 480)
Thermal Sensitivity (NETD)	40mK
Temperature Range	-4°F to 1022°F
Field of View	28°x20°
Frame Rate	30Hz
Image Modes	Thermal, Visual, Fusion, PIP
Focus	Manual
Protection Rating	IP54
Battery Life	Approximately 5 hours
Image Format	JPEG
Additional Features	Swappable Battery, Image Blending

Frequently Asked Questions

What makes the UTi256G unique among thermal cameras?

The UTi256G stands out with its exceptional 40mK thermal sensitivity, 256x192 pixel resolution, and manual focus capability. These features provide unparalleled thermal imaging precision for professional diagnostic applications.

How versatile is the UTi256G across different professional applications?

With its advanced imaging modes, wide temperature range, and exceptional sensitivity, the UTi256G is ideal for professionals in electrical, mechanical, HVAC, research, and industrial diagnostic fields who require the most detailed thermal analysis.

What are the advantages of the swappable battery?

The swappable battery allows for extended field use by enabling quick battery replacements, ensuring uninterrupted thermal imaging during long inspection or research sessions.

Professional Insights

"The UTi256G has transformed our electrical diagnostics. Its ability to detect the most subtle temperature variations has helped us prevent potential failures before they could impact our operations."

— Dr. Rebecca Chen, Senior Research Engineer

"As a building diagnostic specialist, I've never encountered a thermal camera with such precise imaging capabilities. The UTi256G provides insights that are critical for our most demanding thermal performance assessments."

— Marcus Rodriguez, Building Performance Consultant

What's in the Box

• UTi256G Thermal Imaging Camera
• Protective Carrying Case
• USB Charging Cable
• Extra Battery
• Quick Start Guide
• Calibration Certificate

Warranty and Support

The UNI-T UTi256G comes with a comprehensive 1-year warranty covering manufacturing defects and component failures under normal use conditions. Our dedicated technical support team is available to provide expert assistance and ensure optimal performance.

UNI-T Thermal Camera Comparison

Feature	UTi256G	UTi384G
Resolution	256x192	384x288
Thermal Sensitivity (NETD)	40mK	40mK
Frame Rate	30Hz	30Hz
Field of View	28°x20°	42°x30°
Temperature Range	-4°F to 1022°F	-4°F to 1022°F
Image Modes	Thermal, Visual, Fusion, PIP	Thermal, Visual, Fusion, PIP
Image Format	JPEG	JPEG
Display	3.5" IPS Touch (640×480)	3.5" IPS Touch (640×480)
Focus	Manual	Manual
IP Rating	IP54	IP54
Battery Life	~5 hours	~5 hours
