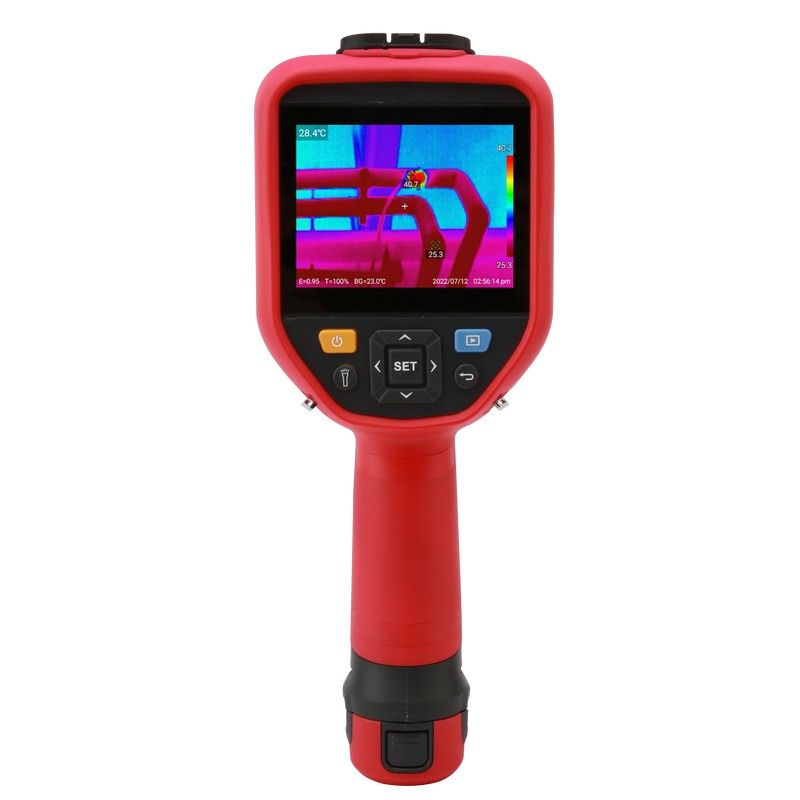

UTi256G 256 G-Series Professional Thermal Imager
$2 899.00
Professional-grade 256×192 thermal camera with IP54 rating for demanding field conditions. Designed for electrical, mechanical, and building diagnostic professionals who need reliable imaging in harsh environments.
In stock
Customer reviews
Reviews only from verified customers
No reviews yet. You can buy this product and be the first to leave a review.
UTi256G 256 G-Series Professional Thermal Imager
Product Details
UPC: 6935750525616
Manufacturer: UNI-T
Warranty: 3 years
Literature: https://storage.googleapis.com/uni-tdocuments/Thermal%20Camera%20Datasheets/UTi256G%26UTi384G%20Data%20Sheet.pdf
Equipment Type: Thermal Imager
The 256 G-Series is a handheld industrial thermal imager built around a 256×192 infrared detector. It performs non-contact temperature inspection across electrical equipment, mechanical condition monitoring, building diagnostics, and solar maintenance.
Thermal sensitivity is rated at ≤40 mK and the measurement range spans -20 °C to 550 °C (-4 °F to 1022 °F) with ±2 °C or ±2% accuracy. The detector combines a 28° × 20° field of view with 1.91 mrad spatial resolution and a 30 Hz refresh rate, and a manual focus ring sharpens the image at any working distance. A 3.5″ IPS touch display (640×480) supports on-screen placement of up to three points, lines, rectangles, and circles, plus isotherms, Hi/Lo auto-tracking, and configurable alarms. Saved images are radiometric JPEGs that retain per-pixel temperature data for later analysis. An IP54 rating and 2 m drop spec suit field use.
Typical applications include switchgear and panel inspection, motor and bearing monitoring, building envelope and insulation surveys, and photovoltaic array checks.
Key Features
- IR Resolution=256×192
- Max Temperature=550°C (1022°F)
- Min Temperature=-20°C (-4°F)
- NETD=≤40mK
- Field of View=28° × 20°
- Display Size=3.5in
Specifications
| IR Resolution | 256×192 |
| NETD | ≤ 40mK |
| Temperature Range | -20 °C (-4 °F) to 550 °C (1022 °F) |
| Accuracy | ±2 °C or ±2% (whichever greater) |
| Field of View | 28° × 20° |
| Spectral Response | 7.5 - 14µm |
| Pixel Pitch | 17µm |
| Refresh Rate | 30 Hz |
| Spatial Resolution | 1.91mrad |
| Focus | Manual Focus |
| Digital Zoom | 2x, 4x |
| Image Blending | Yes |
| Isotherm | Yes |
| Image Modes | Thermal, Visual image, Fusion, PIP |
| Image Format | Radiometric JPEG |
| Laser Type | Single Laser |
| Laser Pointer | Yes |
| Flashlight | Yes |
| On Screen Analyzer | 3 Points/3 Lines/3 Rectangles/3 Circles |
| Digital Camera | 5MP |
| WiFi | Yes |
| Bluetooth App | Yes |
| Interface | USB-Type-C |
| Data Storage | Built-in 8GB & 32GB SD card |
| Display Type | IPS LCD |
| Display Size | 3.5in |
| Display Resolution | 640×480 |
| Languages | English, French, German, Italian, Spanish, Swedish, Polish, Czech, Russian, Portuguese, Arabic, Japanese, Korean |
| Touch Screen | Yes |
| Battery | 5200 mAh detachable Li-ion battery pack (UT-M17) |
| Battery Life | Approx. 5h (with Wi-Fi off) |
| Weight | 880 g |
| Dimensions | 261 × 104 × 97 mm |
| IP Rating | IP54 |
| Drop Rating | 2m |
