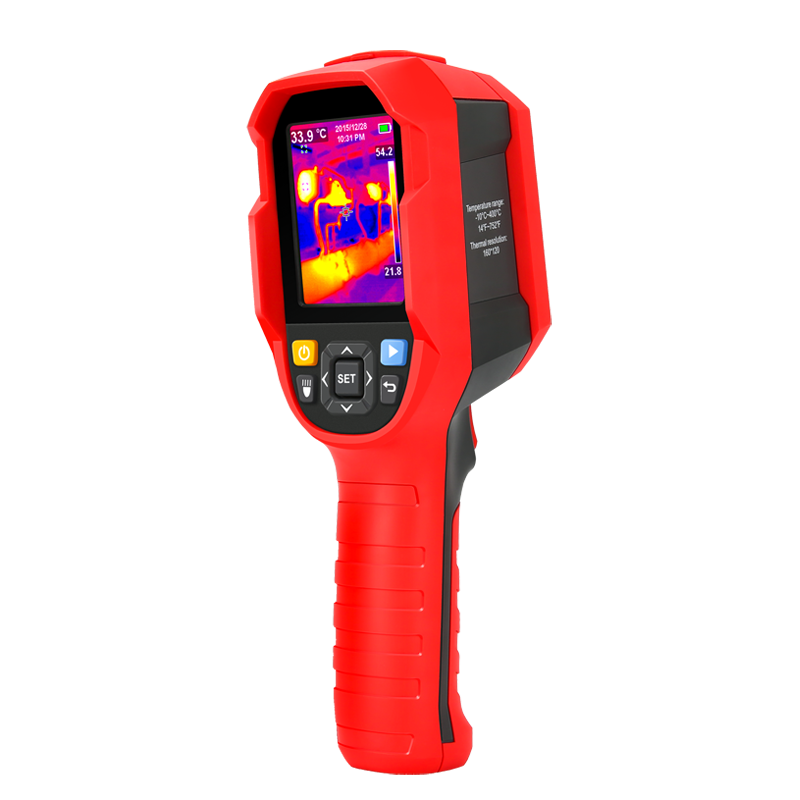

UNI-T UTi165A+ Professional Duty Series Thermal Imager | Advanced Professional Diagnostics

The UNI-T UTi165A+ Professional Duty Series Thermal Imager is a sophisticated diagnostic tool designed for professionals requiring precise thermal imaging across various industrial and maintenance applications. Featuring a high-resolution 160x120 pixel infrared detector and advanced imaging capabilities, this thermal camera delivers exceptional performance and versatility.

Professional Thermal Imaging Reimagined

Bridging the gap between entry-level and high-end thermal cameras, the UTi165A+ offers advanced thermal detection with a focus on professional-grade diagnostics. Its compact design and powerful features make it an indispensable tool for technicians and engineers across multiple industries.

Key Features

• High-Resolution 160x120 Pixel Infrared Detector
• Superior 50mK Thermal Sensitivity
• 2.8" TFT LCD Display
• Extended Temperature Measurement Range
• Multiple Image Modes: Thermal, Visual, Fusion
• IP65 Rated for Rugged Industrial Use
• Compact and Lightweight Design
• Advanced Thermal Imaging Technology
• BMP Image Storage Format
• Focus-Free Operation

Advanced Thermal Imaging Technology

The UTi165A+ leverages a sophisticated infrared detector with 160x120 pixel resolution, providing detailed thermal visualization for professional diagnostics. Its 50mK thermal sensitivity enables the detection of subtle temperature variations, making it an invaluable tool for precise thermal analysis.

The multiple imaging modes, including thermal and visual fusion, allow professionals to overlay thermal and visual images, providing comprehensive context for temperature anomalies. This approach transforms thermal imaging from a simple temperature measurement tool to a sophisticated diagnostic instrument.

Professional Applications

Electrical Systems Diagnostics

In electrical maintenance, the UTi165A+ helps technicians identify potential failures by visualizing heat signatures in electrical systems. Its high sensitivity enables detection of loose connections, overloading, and developing electrical issues with remarkable precision.

Mechanical Equipment Monitoring

Mechanical engineers can leverage the UTi165A+ to perform comprehensive equipment health assessments. The thermal imager reveals heat distribution patterns in motors, bearings, and rotating equipment, enabling predictive maintenance strategies.

HVAC and Building Diagnostics

Building inspectors and HVAC professionals benefit from the camera's ability to non-invasively assess thermal performance. It can identify insulation gaps, detect moisture intrusion, and visualize heat transfer anomalies with notable accuracy.

Industrial Process Control

Manufacturing and industrial process engineers can use the UTi165A+ to monitor equipment performance and identify potential issues. The thermal imaging capabilities help optimize production processes and maintain quality control.

Technical Specifications

Parameter	Specification
Infrared Resolution	160 x 120 pixels
Display	2.8" TFT LCD (320 × 240)
Thermal Sensitivity (NETD)	50mK
Temperature Range	-14°F to 752°F
Field of View	56°x42°
Frame Rate	9Hz
Image Modes	Thermal, Visual, Fusion
Protection Rating	IP65
Battery Life	Approximately 6 hours
Image Format	BMP

Frequently Asked Questions

What distinguishes the UTi165A+ from other thermal cameras?

The UTi165A+ offers a unique balance of performance and affordability, with 160x120 pixel resolution, 50mK thermal sensitivity, and professional-grade imaging modes at a competitive price point.

How reliable is the UTi165A+ in challenging environments?

With an IP65 rating and 2-meter drop resistance, the UTi165A+ is designed to withstand dust, water jets, and typical industrial conditions, ensuring reliable performance in challenging environments.

What type of professionals would benefit most from this thermal imager?

Ideal for electrical technicians, HVAC professionals, maintenance engineers, and industrial inspectors who require a reliable, high-performance thermal imaging solution.

Professional Insights

"The UTi165A+ has become a crucial tool in our preventive maintenance program. Its ability to detect subtle temperature variations has helped us identify potential equipment issues before they become critical."

— Thomas Rodriguez, Maintenance Supervisor

"As an electrical inspector, I appreciate the UTi165A+'s balance of performance and affordability. It provides the thermal imaging capabilities I need without breaking the budget."

— Maria Chen, Electrical Systems Inspector

What's in the Box

• UTi165A+ Thermal Imaging Camera
• Protective Carrying Case
• USB Charging Cable
• Quick Start Guide
• Calibration Certificate

Warranty and Support

The UNI-T UTi165A+ comes with a comprehensive 1-year warranty covering manufacturing defects and component failures under normal use conditions. Our dedicated technical support team is available to provide expert assistance.

UNI-T Thermal Camera Comparison

Feature	UTi120B	UTi165A+	UTi720E	UTi730E
Resolution	120x90	160x120	256x192	320x240
Thermal Sensitivity (NETD)	60mK	50mK	50mK	65mK
Frame Rate	25Hz	9Hz	25Hz	9Hz
Field of View	50°x38°	56°x42°	56°x42°	56°x42°
Temperature Range	-4°F to 752°F	-14°F to 752°F	-4°F to 1022°F	-40°F to 752°F
Image Modes	Thermal, Visual, Fusion	Thermal, Visual, Fusion	Thermal, Visual, Fusion, PIP	Thermal, Visual, Fusion, PIP
Image Format	BMP	BMP	JPEG	JPEG
IP Rating	IP65	IP65	IP54	IP54
Battery Life	~6 hours	~6 hours	~4 hours	~4 hours
