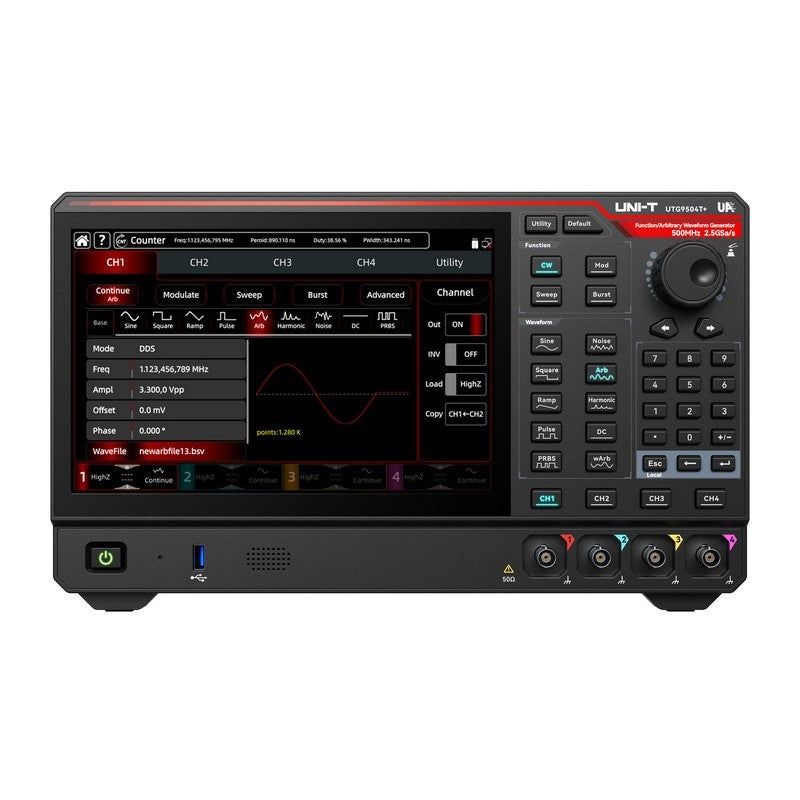

UTG9354T+ 350 MHz 4Ch Elite-Series Arbitrary Waveform Generator
$4 999.00
4-channel 350 MHz arbitrary waveform generator and 2.5 GSa/s sample rate. Designed for demanding R&D, compliance, and production test environments needing complex modulated and multi-tone signals.
In stock
Customer reviews
Reviews only from verified customers
No reviews yet. You can buy this product and be the first to leave a review.
UTG9354T+ 350 MHz 4Ch Elite-Series Arbitrary Waveform Generator
Product Details
UPC: 6935750593561
Manufacturer: UNI-T
Warranty: 3 years
Literature: https://instruments.uni-trend.com/download?cate=124
Equipment Type: Waveform Generator
The UTG9354T+ is a four-channel arbitrary waveform generator of the Elite-Series, built around a 16-bit DAC and a 2.5 GSa/s sample rate (2× interpolation). It produces sine output to 350 MHz and square and pulse to 120 MHz, with four equal-performance channels that each deliver the full 20 Vpp output envelope into high-Z and an 8 pts to 128 Mpts per-channel arbitrary memory (expandable to 256 Mpts per channel via PC software).
Frequency resolution is 1 µHz, total harmonic distortion stays below 0.07 % (DC to 20 kHz), and spurious-free dynamic range reaches −80 dBc. Fifteen analog and digital modulation types are supported, alongside advanced Multi-Pulse, Multi-Tone, Sequence, Pattern, I/Q, and Expression generation, PRBS (PN3 to PN33, up to 300 Mbps), and SPI, I²C, and UART digital-protocol output, with pulse edges adjustable to 100 ps. The instrument carries over 200 built-in arbitrary waveforms, an 800 MHz 8-digit hardware frequency counter, and a 10.1-inch 1280 × 800 capacitive touch display, with USB Host/Device and LAN and 10 MHz reference in/out.
It suits multi-channel high-frequency stimulus, serial-link and jitter-tolerance testing, and automated test work that needs four full-performance outputs with protocol generation. Certified to CE and cETLus.
Key Features
- Max Frequency=350MHz
- Channels=4Ch
- Sample Rate=2.5GSa/s
- Vertical Resolution=16 bits
- Waveforms=Sine, Square, Ramp, Pulse, Harmonic, Noise, PRBS, DC, Arbitrary
- Modulation Types=AM, DSB-AM, FM, PM, ASK, FSK, 3FSK, 4FSK, PSK, BPSK, QPSK, OSK, QAM, PWM, SUM
Specifications
| Max sine frequency | 350 MHz |
| Max square frequency | 120 MHz |
| Max pulse frequency | 120 MHz |
| Frequency resolution | 1 µHz |
| Channels | 4, independent and equal-performance |
| Sample rate | 2.5 GSa/s (2× interpolation) |
| Vertical resolution | 16-bit (including sign) |
| Arbitrary waveform length | 8 pts to 128 Mpts/CH (expandable to 256 Mpts/CH with PC software) |
| Built-in arbitrary waveforms | Over 200, non-volatile |
| Arbitrary file storage | 4 GB internal for arbitrary-waveform files (.bsv/.csv) |
| Standard waveforms | Sine, Square, Ramp, Pulse, Harmonic, Noise, PRBS, DC, Arbitrary |
| Modulation types | 15 — AM, FM, PM, DSB-AM, ASK, FSK, PSK, 3FSK, 4FSK, BPSK, QPSK, OSK, SUM, QAM, PWM |
| FM frequency offset | 0 μHz to 175 MHz |
| Harmonic range | 1 μHz to 175 MHz |
| Harmonic distortion (Typ.) | DC to 10 MHz ≤ −65 dBc; 10–100 MHz ≤ −60 dBc; 100–150 MHz ≤ −50 dBc; 150–200 MHz ≤ −40 dBc; 200–350 MHz ≤ −30 dBc |
| Multi-tone frequency range | 1 kHz to 350 MHz |
| I/Q center frequency | 0 Hz to 350 MHz |
| Noise bandwidth | 1 mHz to 350 MHz |
| Ramp | 1 µHz to 20 MHz, symmetry 0.00% to 100.00% |
| Sweep modes | Linear, Logarithmic, List, Step |
| Burst modes | N-cycle, Gate, Pulse-train |
| Advanced functions | Multi-Pulse, Multi-Tone, Sequence, Pattern, I/Q, Expression |
| Digital-protocol output | SPI, I²C, UART |
| Frequency counter | 100 mHz to 800 MHz hardware frequency counter, AC / DC / HF-reject coupling, 8-digit |
| Output amplitude (50 Ω) | 1 mVpp to 10 Vpp (50 Ω, ≤ 40 MHz band) |
| Output amplitude (high-Z) | 2 mVpp to 20 Vpp (high-Z, ≤ 40 MHz band) |
| Output impedance | 50 Ω (Typ.) |
| Total harmonic distortion | < 0.07% (0 dBm, DC to 20 kHz) |
| Spurious-free dynamic range | −80 dBc spurious-free dynamic range |
| Phase noise | ≤ −130 dBc/Hz @ 10 kHz offset (Typ.) |
| Pulse jitter | 200 ps (1 Vpp, 50 Ω) |
| Arbitrary jitter | 150 ps |
| Square rise/fall time | < 2 ns (Typ., square) |
| Minimum pulse width | 3 ns (Typ.); edge step to 100 ps |
| PRBS | PN3 to PN33, 1 µbps to 300 Mbps; edge 2 ns to 1 ks |
| Amplitude flatness | ≤ 10 MHz ±0.1 dB; ≤ 60 MHz ±0.2 dB; ≤ 80 MHz ±0.4 dB (Typ.) |
| Reference clock | 10 MHz, ±0.5 ppm initial accuracy (25°C); ±1 ppm aging (first year) |
| Display | 10.1-inch capacitive touch, 1280 × 800 |
| Interface | USB Host, USB Device, LAN; 10 MHz reference in/out; external trigger in/out |
| Protection | Short-circuit protection; overload auto-disables waveform output |
| Power supply | 100–240 VACrms (±10%), 50/60 Hz; < 50 W |
| Operating temperature | +10°C to +40°C |
| Storage temperature | −20°C to +60°C |
| Humidity | ≤ 90% RH below +35°C; ≤ 60% RH +35°C to +40°C |
| Dimensions | 361 mm × 209 mm × 106 mm (W × H × D) |
| Weight | 4.5 kg |
| Compliance | CE, cETLus; EN 61010-1, EN 61326-1 EMC |
