UTG4162A 160MHz 2Ch Performance-Series Arbitrary Waveform Generator
$1 289.00
2-channel 160 MHz arbitrary waveform generator. Versatile bench instrument for electronics development, education, and production testing.
In stock
Customer reviews
Reviews only from verified customers
No reviews yet. You can buy this product and be the first to leave a review.
UTG4162A 160MHz 2Ch Performance-Series Arbitrary Waveform Generator
Product Details
UPC: 6935750590782
Manufacturer: UNI-T
Warranty: 3 years
Literature: https://instruments.uni-trend.com/download?cate=20
Equipment Type: Waveform Generator

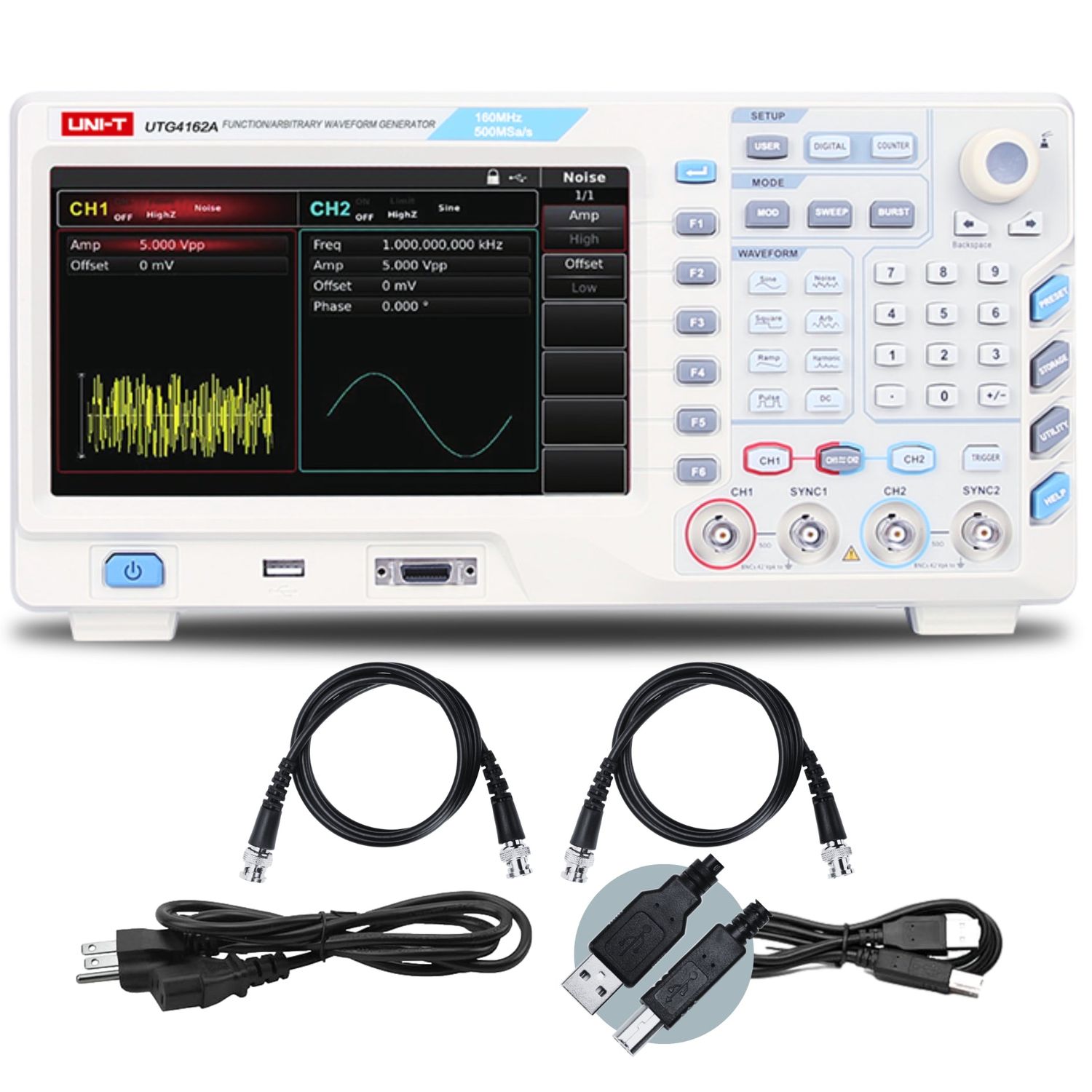

The UTG4162A is a 160 MHz two-channel arbitrary waveform generator of the UTG4000A line. Built on a 16-bit DAC and 500 MSa/s sample rate with 32 Mpts of ARB memory, it outputs sine, square, ramp, harmonic, pulse, noise, DC, and arbitrary waveforms on two independent channels with frequency resolution of 1 µHz.
The instrument includes AM/FM/PM/ASK/FSK/PSK/PWM modulation, linear and logarithmic sweep, burst modes, and channel tracking and coupling. A 4.3-inch color TFT display provides direct operation alongside USB-Device, USB-Host, and LAN with SCPI for remote control.
It suits 160 MHz two-channel waveform generation for RF-adjacent bench test, communications stimulus, and mixed-signal applications requiring 500 MSa/s and 32 Mpts ARB memory.
Key Features
- Max Frequency=160MHz
- Channels=2Ch
- Sample Rate=500MSa/s
- Vertical Resolution=16 bits
- Waveforms=Sine, Square, Ramp, Harmonic, Pulse, Noise, DC, Arbitrary
- Modulation Types=AM, FM, PM, ASK, FSK, PSK, BPSK, QPSK, OSK, PWM, SUM, QAM
Specifications
| Max sine frequency | 160 MHz |
| Max square / pulse frequency | 50 MHz |
| Max ramp frequency | 4 MHz |
| Max harmonic frequency | 80 MHz |
| Arbitrary frequency range | 1 µHz to 40 MHz |
| Frequency resolution | 1 µHz |
| Channels | 2, independent with channel-coupling output mode |
| Sample rate | 500 MSa/s |
| Vertical resolution | 16 bits |
| Arbitrary memory depth | 8 pts to 32 Mpts |
| Arbitrary storage | 7 GB non-volatile arbitrary-waveform storage |
| Built-in arbitrary waveforms | 160 built-in arbitrary waveforms |
| Standard waveforms | Sine, Square, Ramp, Harmonic, Pulse, Noise, DC, Arbitrary |
| Modulation types | 12 — AM, FM, PM, ASK, FSK, PSK, BPSK, QPSK, OSK, PWM, SUM, QAM |
| Sweep modes | Linear, Logarithmic |
| Burst modes | N-cycle, Gate, Infinite |
| Digital-protocol output | SPI, I²C, UART |
| Frequency counter | 100 mHz to 800 MHz hardware frequency counter, 7-bit |
| Output amplitude (50 Ω) | 1 mVpp to 10 Vpp (50 Ω) |
| Output amplitude (high-Z) | 2 mVpp to 20 Vpp (high-Z) |
| Output impedance | 50 Ω |
| Harmonic distortion | < 0.2% |
| Min rise/fall time | < 5 ns (Typ., 1 Vpp) |
| Jitter | 1 ns + 100 ppm |
| Display | 8-inch TFT LCD, WVGA 800 × 480 |
| Touch screen | No (key/knob navigation) |
| Interface | USB Host, USB Device, LAN, 10 MHz input, 10 MHz output, frequency counter input, FSK trigger input, external modulation input |
| Power supply | 100–240 VAC, 50/60 Hz |
| Dimensions | 336 mm × 164 mm × 108 mm (W × H × D) |
| Weight | 3.5 kg |
