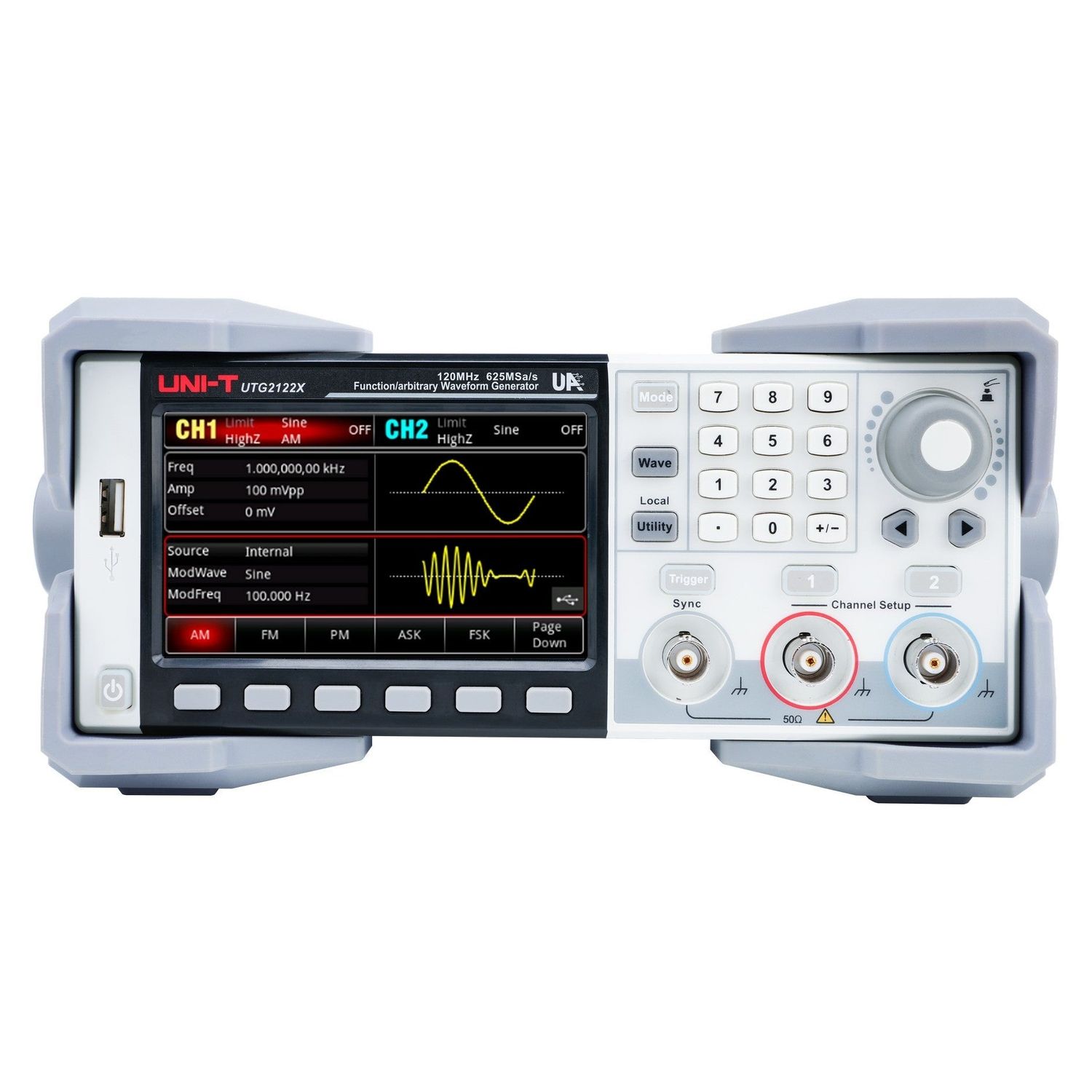

UTG2082X 80 MHz 2Ch Advanced-Series Arbitrary Waveform Generator
$589.00
2-channel 80 MHz arbitrary waveform generator and 1.25 GSa/s sample rate. Compact and cost-effective signal source for education, hobbyist, and general lab use.
In stock
Customer reviews
Reviews only from verified customers
No reviews yet. You can buy this product and be the first to leave a review.
UTG2082X 80 MHz 2Ch Advanced-Series Arbitrary Waveform Generator
Product Details
UPC: 6935750521014
Manufacturer: UNI-T
Warranty: 3 years
Literature: https://instruments.uni-trend.com/download?cate=92
Equipment Type: Waveform Generator
The UTG2082X is a two-channel arbitrary waveform generator of the Advanced-Series, built around a 16-bit DAC and a 625 MSa/s native sample rate (1.25 GSa/s with 2× interpolation). It produces sine output to 80 MHz and square and pulse to 40 MHz, with equal-performance dual channels that deliver full 20 Vpp output simultaneously up to 20 MHz and a 64 Mpts arbitrary-waveform memory for long-form custom stimulus.
Frequency resolution is 1 µHz across the full range, total harmonic distortion stays below 0.07 % (DC to 20 kHz), and spurious-free dynamic range reaches −80 dBc. Fifteen analog and digital modulation types are supported (AM, FM, PM, DSB-AM, ASK, FSK, PSK, 3FSK, 4FSK, BPSK, QPSK, OSK, SUM, QAM, PWM), with linear, logarithmic, and stepwise sweep and three burst modes. Channel Merge, Channel Follow, and Channel Stacking enable dual-tone, multi-frequency, and signal-plus-noise generation from one instrument. A 4.3-inch capacitive touch display, a 7-digit frequency counter (100 mHz to 200 MHz), and LAN, USB-Device, USB-Host, and SCPI provide direct operation and automated test integration.
It suits communications-class stimulus, mixed analog/digital signal simulation, and benches that need touch-driven operation with ATE connectivity.
Key Features
- Max Frequency=80MHz
- Channels=2Ch
- Sample Rate=625MSa/s
- Vertical Resolution=16 bits
- Waveforms=Sine, Square, Ramp, Pulse, Noise, DC, Arbitrary, Harmonic, PRBS, Expression
- Modulation Types=AM, FM, PM, DSB-AM, ASK, FSK, PSK, 3FSK, 4FSK, BPSK, QPSK, OSK, SUM, QAM, PWM
Specifications
| Max sine frequency | 80 MHz |
| Max square / pulse frequency | 40 MHz |
| Frequency resolution | 1 µHz |
| Channels | 2, independent and equal-performance |
| Sample rate | 625 MSa/s native (1.25 GSa/s with 2× interpolation) |
| Vertical resolution | 16 bits (65,536 amplitude levels) |
| Arbitrary waveform length | 64 Mpts (point-by-point output: 8 pts to 32 Mpts; up to 64 Mpts single-channel) |
| Built-in arbitrary waveforms | 200, non-volatile |
| Standard waveforms | Sine, Square, Ramp, Pulse, Harmonic, PRBS, Expression, Noise, DC, Arbitrary |
| Modulation | AM, FM, PM, DSB-AM, ASK, FSK, PSK, 3FSK, 4FSK, BPSK, QPSK, OSK, SUM, QAM, PWM (internal & external source) |
| Sweep modes | Linear, Logarithmic, Stepwise |
| Burst modes | N-cycle, Gated, Infinite |
| Channel coupling | Frequency, amplitude, phase (Channel Follow) |
| Channel combination | Yes — Channel Merge / Stacking |
| Output amplitude (50 Ω) | 1 mVpp to 10 Vpp |
| Output amplitude (high-Z) | 2 mVpp to 20 Vpp |
| Output impedance | 50 Ω / High-Z |
| Rise / fall time (square, 1 Vpp, 50 Ω) | < 6 ns (typical, 1 kHz) |
| Pulse-wave jitter | ≤ 5 MHz: 2 ppm + 200 ps; > 5 MHz: 200 ps |
| Harmonic distortion (THD) | < 0.07% (DC to 20 kHz, 1 Vpp) |
| Spurious-free dynamic range | −80 dBc |
| Frequency counter range | 100 mHz to 200 MHz, 7-bit |
| Display | 4.3-inch TFT LCD, capacitive touch |
| Interface | LAN, USB-Device, USB-Host, 10 MHz In / Out, External Trigger, External Modulation Input |
| Dimensions / Weight | 215 × 103 × 316 mm / 2.2 kg |
