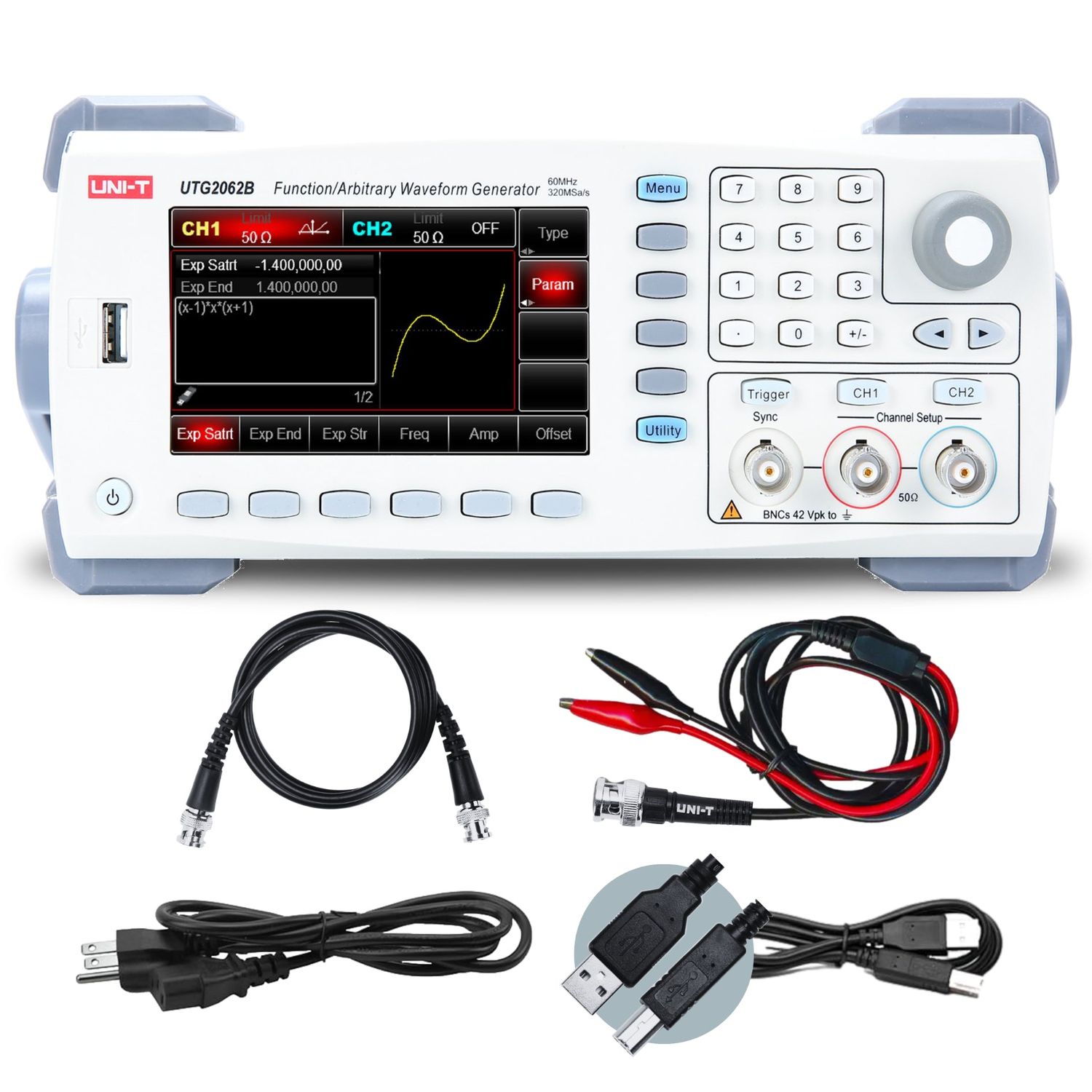

UTG2062B 60MHz 2Ch Advanced-Series Arbitrary Waveform Generator
$519.00
2-channel 60 MHz arbitrary waveform generator. Compact and cost-effective signal source for education, hobbyist, and general lab use.
In stock
Customer reviews
Reviews only from verified customers
No reviews yet. You can buy this product and be the first to leave a review.
UTG2062B 60MHz 2Ch Advanced-Series Arbitrary Waveform Generator
Product Details
UPC: 6935750520628
Manufacturer: UNI-T
Warranty: 3 years
Literature: https://instruments.uni-trend.com/download?cate=21
Equipment Type: Waveform Generator
The UTG2062B is a 60 MHz two-channel arbitrary waveform generator of the UTG2000B line. Built on a 16-bit DAC and 320 MSa/s sample rate with 16 Mpts of ARB memory, it outputs sine, square, ramp, pulse, noise, DC, arbitrary, harmonic, and expression waveforms on two independent channels with frequency resolution of 1 µHz.
Key specifications include ≤ 5 ns rise time, ±1 ppm frequency stability, and AM/FM/PM/ASK/FSK/PWM modulation support. Sweep (linear and logarithmic), burst, and channel-coupling modes are included. A 4.3-inch color TFT display and front-panel encoder provide direct operation; USB-Device, USB-Host, and LAN with SCPI enable automated test integration.
It suits bench stimulus for filter characterization, communications test, and general waveform generation to 60 MHz where dual-channel output and a 16-bit DAC are required.
Key Features
- Max Frequency=60MHz
- Channels=2Ch
- Sample Rate=320MSa/s
- Vertical Resolution=16 bits
- Waveforms=Sine, Square, Ramp, Burst, Noise, DC, Arbitrary, Harmonic, Expression
- Modulation Types=AM, FM, PM, ASK, FSK, PSK, BPSK, QPSK, OSK, SUM, DSB-AM, QAM, PWM
Specifications
| Max sine frequency | 60 MHz |
| Max square / pulse frequency | 25 MHz |
| Frequency resolution | 1 µHz |
| Channels | 2, independent |
| Sample rate | 320 MSa/s |
| Vertical resolution | 16 bits (65,536 amplitude levels) |
| Arbitrary waveform length | 16 Mpts |
| Built-in arbitrary waveforms | 160, non-volatile |
| Standard waveforms | Sine, Square, Ramp, Pulse, Harmonic, Noise, DC, Expression, Arbitrary |
| Modulation | AM, FM, PM, ASK, FSK, PSK, BPSK, QPSK, OSK, SUM, DSB-AM, QAM, PWM (internal & external source) |
| Sweep modes | Linear, Logarithmic |
| Burst modes | N-cycle, Gated, Infinite |
| Channel coupling | Frequency, amplitude, phase |
| Channel combination | Yes (sum output) |
| Harmonic generator | 16th-order with per-order amplitude / phase |
| Output amplitude (50 Ω) | 1 mVpp to 10 Vpp |
| Output amplitude (high-Z) | 2 mVpp to 20 Vpp |
| Output impedance | 50 Ω / High-Z |
| Rise / fall time (square, 1 Vpp, 50 Ω) | < 13 ns (typical, 1 kHz) |
| Pulse-wave jitter | 150 ps typical |
| Harmonic distortion (THD) | < 0.2% (DC to 20 kHz, 1 Vpp) |
| Frequency counter range | 100 mHz to 200 MHz, 6-bit |
| Display | 4.3-inch TFT LCD |
| Interface | LAN, USB-Device, USB-Host, 10 MHz In / Out, External Trigger, External Modulation Input |
| Dimensions / Weight | 215 × 103 × 316 mm / 2.2 kg |
