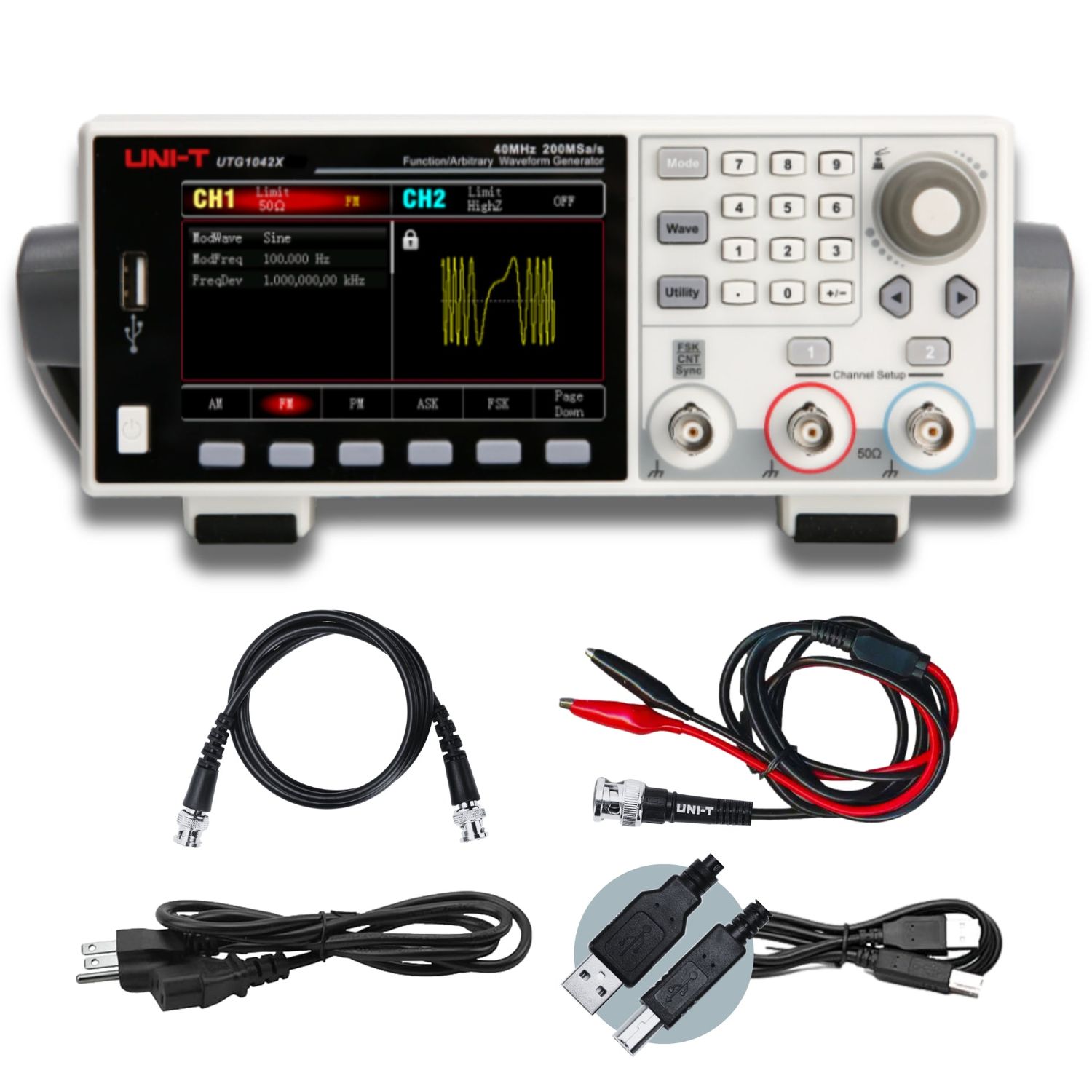

UTG1042X 40 MHz 2Ch Essential-Series Arbitrary Waveform Generator

The UTG1042X is a two-channel arbitrary waveform generator of the Essential-Series, built around a 16-bit DAC and a 200 MSa/s sample rate. It produces sine output to 40 MHz and square and pulse to 20 MHz, with the 16-bit DAC providing 65,536 amplitude levels for low quantization noise and clean low-amplitude output.

Both channels offer 1 µHz frequency resolution and amplitude to 20 Vpp into high-Z. Seven modulation types (AM, FM, PM, ASK, FSK, PSK, PWM) with internal and external sources, linear and logarithmic sweep, three pulse-burst modes (N-cycle, gated, infinite), and 200 built-in arbitrary waveforms (4 kpts custom length) cover the range of bench signal-generation tasks. Total harmonic distortion stays below 0.2 % (DC to 20 kHz), and a built-in 7-digit frequency counter spans 100 mHz to 200 MHz. A 4.3-inch 480 × 272 TFT display, USB-Device, and USB-Host (for direct thumb-drive waveform upload) complete the interface.

It suits entry-bench design, education, and general analog and digital signal simulation where 16-bit output fidelity is wanted at the entry tier of the line.

Key Features

• Max Frequency=40MHz
• Channels=2Ch
• Sample Rate=200MSa/s
• Vertical Resolution=16 bits
• Waveforms=Sine, Square, Ramp, Pulse, Noise, DC, Arbitrary
• Modulation Types=AM, FM, PM, ASK, FSK, PSK, PWM
