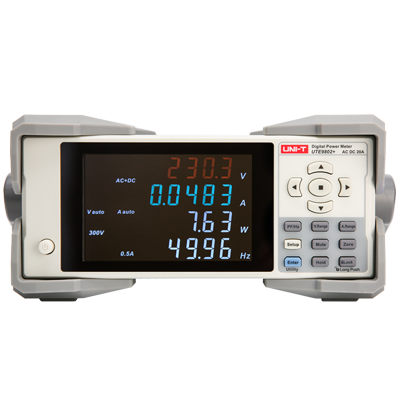

UTE9802+ 600V/20A True RMS AC/DC Digital Power Meter
$349.00
Digital power meter for precision energy and power quality measurement in product development and compliance testing.
In stock
Customer reviews
Reviews only from verified customers
No reviews yet. You can buy this product and be the first to leave a review.
UTE9802+ 600V/20A True RMS AC/DC Digital Power Meter
Product Details
UPC: 6935750598047
Manufacturer: UNI-T
Warranty: 3 years
Literature: https://instruments.uni-trend.com/download?cate=64
Equipment Type: Power Meter
Key Features
- AC V / A=3V - 600V / 0.5mA - 20A
- Bandwidth=DC, 40Hz - 400Hz
- Parameters=V, A, W, PF, Hz
- Wiring Modes=1P2W
Specifications
| Parameter | UTE9802+ |
| Voltage range | 3V – 600V |
| Current range | 0.5mA – 20A |
| Power range | 1W – 12kW |
| Voltage resolution | 0.01V |
| Current resolution | 0.1mA |
| Bandwidth | DC, 40Hz – 400Hz |
| Measurement modes | AC / DC / AC+DC (True RMS) |
| Parameters | V, A, W, PF, Hz |
| Wiring mode | 1P2W |
| Display | 4.3-inch LCD |
| Interface | RS-232 / RS-485 |
