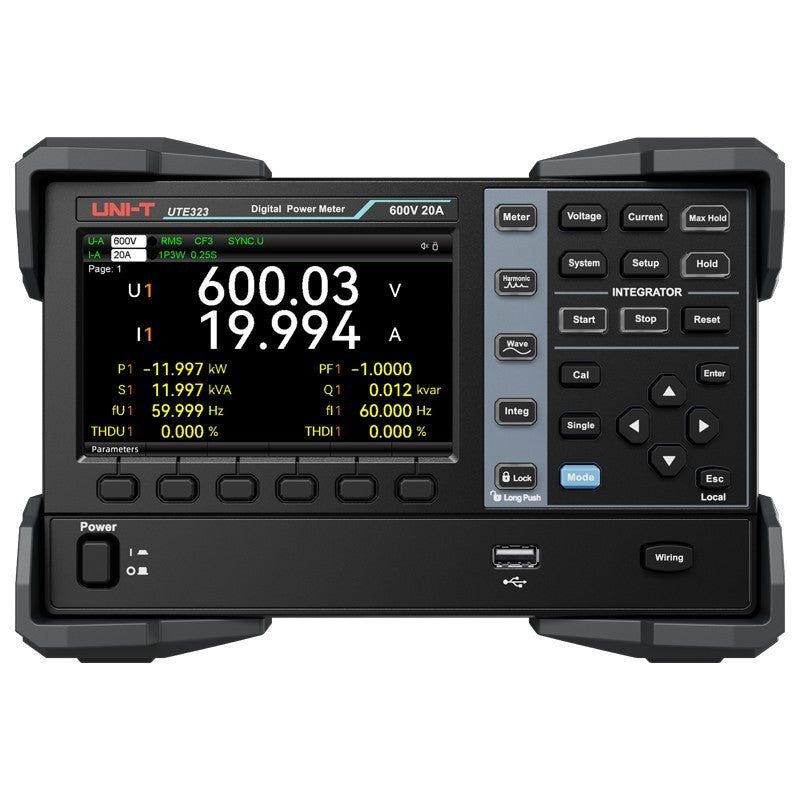

UTE323 3-Ch High-Precision Digital Power Meter
$3 699.00
Digital power meter for precision energy and power quality measurement in product development and compliance testing.
In stock
Customer reviews
Reviews only from verified customers
No reviews yet. You can buy this product and be the first to leave a review.
UTE323 3-Ch High-Precision Digital Power Meter
Product Details
UPC: 6935750532485
Manufacturer: UNI-T
Warranty: 3 years
Literature: https://instruments.uni-trend.com/download?cate=116
Equipment Type: Power Meter
Key Features
- AC V / A=75mV - 600V / 2.5mA - 20A
- Bandwidth=DC, 0.1Hz - 300kHz
- Parameters=DC, TRMS, Vmean
- Wiring Modes=1P2W, 1P3W, 3P3W, 3P4W, 3V3A
Specifications
| Parameter | UTE323 / UTE323G |
| Channels | 3 (synchronous) |
| Voltage range | 75mV – 600V |
| Current range | 2.5mA – 20A |
| Power range | 7.5W – 12kW |
| Voltage resolution | 1mV |
| Current resolution | 10µA |
| Sample rate | 300kSa/s |
| Bandwidth | DC, 0.1Hz – 300kHz |
| Wiring modes | 1P2W / 1P3W / 3P3W / 3P4W / 3V3A |
| Harmonic analysis | 1st – 50th |
| Display | 5-inch TFT-LCD |
| Interface (UTE323) | USB / LAN / RS-232 |
| Interface (UTE323G) | USB / LAN / GPIB |
