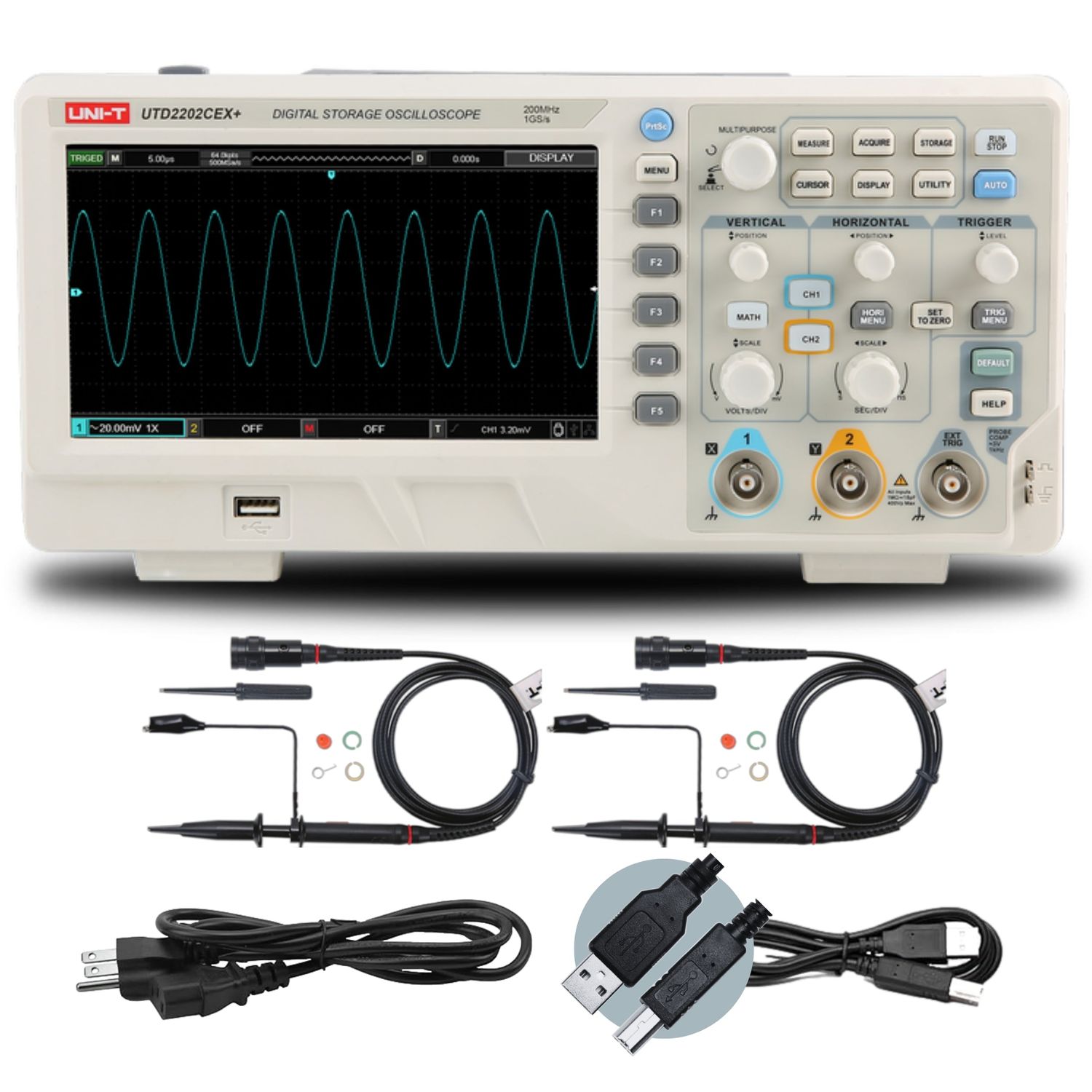

UTD2202CEX+ 200 MHz 2Ch Digital Storage Oscilloscope

The UTD2202CEX+ is a 200 MHz two-channel digital storage oscilloscope and the highest-bandwidth model of the UTD2000 line. It provides a 1 GSa/s real-time sample rate, 64 kpts of acquisition memory, and a 5,000 wfms/s capture rate on a 7-inch TFT LCD. The 8-bit vertical resolution covers 1 mV/div to 20 V/div with a calculated rise time of ≤ 1.75 ns.

Measurement functions include 34 automated parameters, FFT for frequency-domain analysis, pass/fail mask testing, and a 6-bit hardware frequency counter. Waveform data and screenshots transfer via USB-Host and USB-Device. The instrument carries CE and cETLus certifications and a 3+2 year warranty.

It suits 200 MHz two-channel bench and field applications where a compact DSO with standard automated measurement, FFT, and mask testing is required at a utility-class footprint.

Key Features

• Bandwidth=200MHz
• Channels=2Ch
• Sample Rate=1GSa/s
• Memory Depth=64kpts
• Vertical Resolution=8 bits
