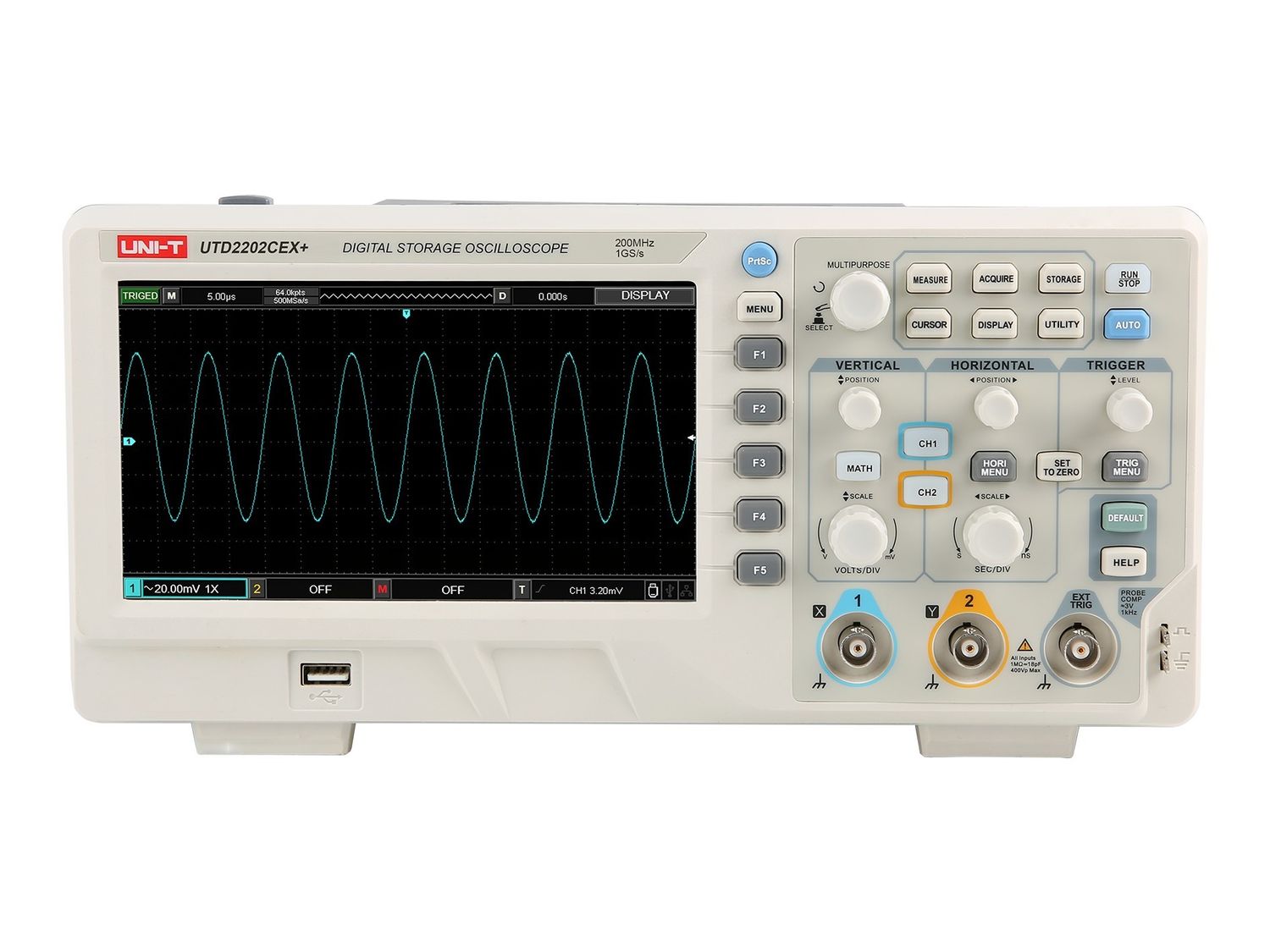

Discover the Power of the UNI-T UTD2202CEX+ Digital Storage Oscilloscope (DSO)

UNI-T UTD2202CEX+ Functions feature

Are you a practicing electrical engineer seeking the ultimate tool to conquer complex electrical challenges and streamline your work? Look no further than the UNI-T UTD2202CEX+ Digital Storage Oscilloscope (DSO). Designed with the needs of experienced engineers in mind, this instrument offers a wealth of features to enhance your daily tasks and help you achieve unparalleled precision in your work.

Key Specifications:

• Bandwidth: 200MHz
• Analog Channels: 2
• Real-Time Sample Rate: 1GSa/s
• Max. Memory Depth: 64kpts
• Waveform Capture Rate: 5,000wfms/s

Unlock a World of Possibilities with these Cutting-Edge Features

• Math Function for Advanced Analysis:
  • Benefit: Simplify intricate signal calculations with ease. The UNI-T UTD2202CEX+ Digital Storage Oscilloscope supports addition, subtraction, multiplication, division, and waveform calculations. Visualize and analyze CH1 & CH2 waveform mathematical operations to ensure precise results in your projects.

UNI-T UTD2202CEX+ Range feature

• Zoom Function for Detailed Inspection:
  • Benefit: Zoom in on waveforms with precision using the 7-inch screen on the UNI-T UTD2202CEX+ Digital Storage Oscilloscope. It features two display areas, the original waveform and a zoomed-in view. Move cursors to pinpoint specific areas of interest, ensuring no detail escapes your attention.
• XY Mode (Lissajous Graphics) for Phase Analysis:
  • Benefit: Use the UNI-T UTD2202CEX+ Digital Storage Oscilloscope to measure the phase difference between two signals of the same frequency effortlessly. CH1 voltage is displayed on the horizontal axis, and CH2 voltage is displayed on the vertical axis, aiding in phase analysis tasks.
• AUTO Mode for Streamlined Setup:
  • Benefit: Activate the AUTO mode with a simple button press. The UNI-T UTD2202CEX+ Digital Storage Oscilloscope automatically adjusts vertical scale, horizontal time base, and trigger mode based on input signals. Customize parameters as needed for efficient testing.
• FFT Spectral Analysis for Comprehensive Insights:
  • Benefit: Convert time domain signals into frequency domain signals with FFT operations with ease using the UNI-T UTD2202CEX+ Digital Storage Oscilloscope. Gain insights into harmonic content, distortion, noise characteristics in DC power supplies, and vibration analysis.

UNI-T UTD2202CEX+ Multi feature

• Automatic Parameter Measurement for Precision Analysis:
  • Benefit: Access 34 automatic parameter measurement options and 5 customizable parameter display groups with the UNI-T UTD2202CEX+ Digital Storage Oscilloscope. Measure parameters such as Min/Max, Peak-to-Peak, Mean, Cycle Mean, RMS, Rise/Fall Time, Frequency, and more based on CH1, CH2, or Math functions.
• Versatile Triggers for Signal Control:
  • Benefit: Choose from the UNI-T UTD2202CEX+ Digital Storage Oscilloscope’s variety of trigger options, including Edge Trigger, Pulse Width Trigger, Video Trigger, Slope Trigger, and Alternating Trigger. Fine-tune trigger settings to capture signals with precision.
• Alternating Trigger for Multi-Signal Observations:
  • Benefit: During alternating trigger mode, the trigger signal originates from two vertical channels, making it ideal for observing and comparing signals with varying frequencies.

The UNI-T UTD2202CEX+ DSO is your trusted partner in the world of electrical engineering. Elevate your projects, tackle intricate tasks, and achieve unparalleled precision in your work. Order your UNI-T UTD2202CEX+ today and witness the difference it can make in your engineering endeavors. Your next breakthrough awaits!
