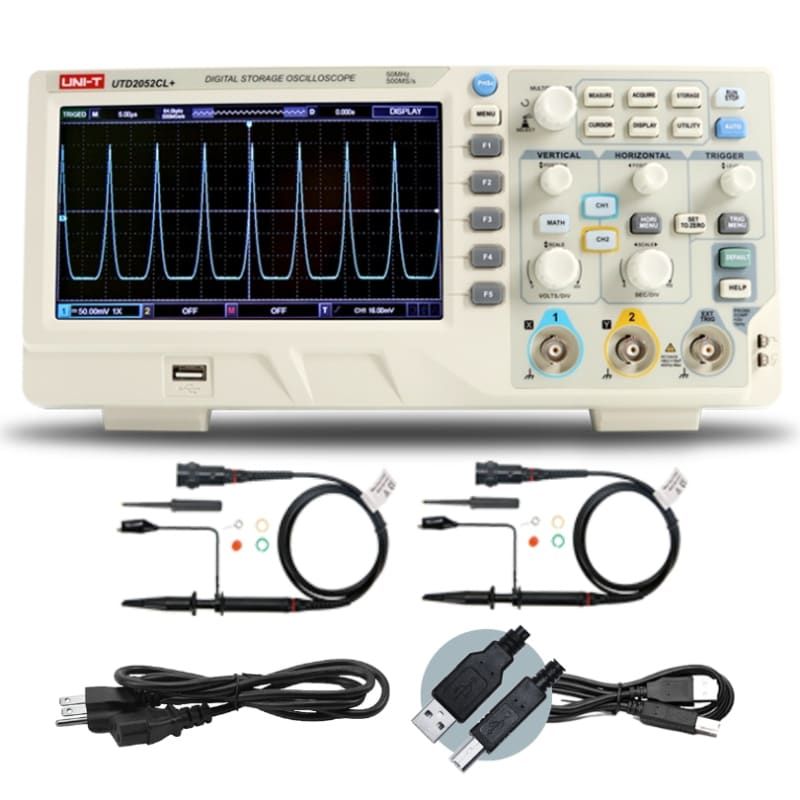

UTD2052CL+ 50 MHz 2Ch Digital Storage Oscilloscope

The UTD2052CL+ is a 50 MHz two-channel digital storage oscilloscope of the UTD2000 line. It provides a 500 MSa/s real-time sample rate, 64 kpts of acquisition memory, and a 5,000 wfms/s capture rate on a 7-inch TFT LCD. The 8-bit vertical resolution covers 1 mV/div to 20 V/div.

Measurement functions include 28 automated parameters, FFT for basic frequency-domain analysis, pass/fail mask testing, an external trigger input, and a 6-bit hardware frequency counter. Waveform data and screenshots transfer via USB-Host and USB-Device. The instrument carries CE and cETLus certifications and a 3+2 year warranty.

It suits education and field-service applications requiring a compact 50 MHz two-channel DSO with standard triggering, external trigger input, and utility-class measurement capabilities.

Key Features

• Bandwidth=50MHz
• Channels=2Ch
• Sample Rate=500MSa/s
• Memory Depth=64kpts
• Vertical Resolution=8 bits
