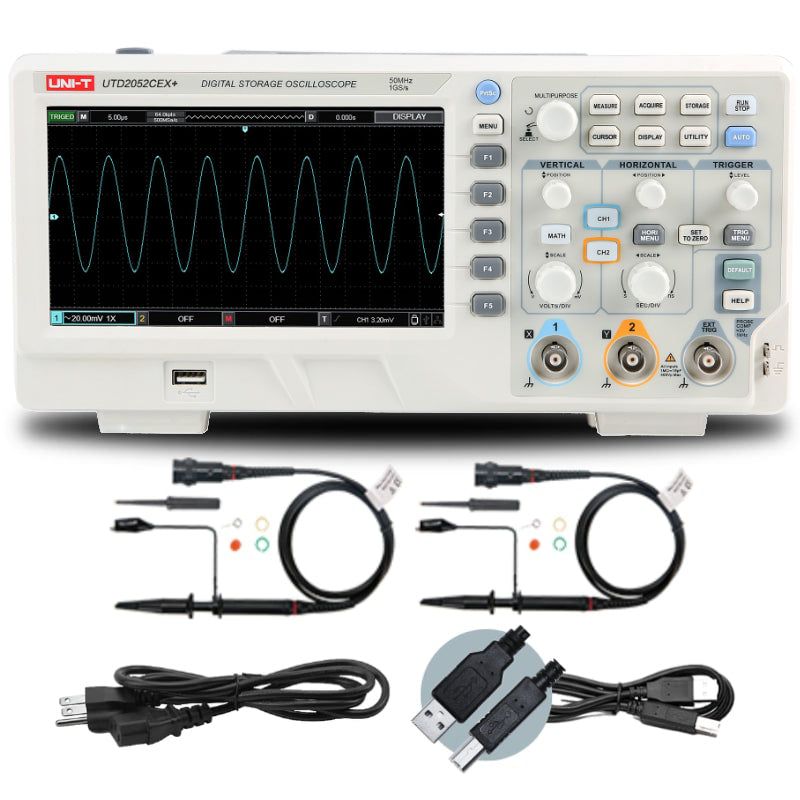

UTD2052CEX+ 50 MHz 2Ch Digital Storage Oscilloscope

The UTD2052CEX+ is a 50 MHz two-channel digital storage oscilloscope of the UTD2000 line. It provides a 1 GSa/s real-time sample rate, 64 kpts of acquisition memory, and a 5,000 wfms/s capture rate on a 7-inch TFT LCD. The 8-bit vertical resolution covers 1 mV/div to 20 V/div with a calculated rise time of ≤ 7.0 ns.

Measurement functions include 34 automated parameters, FFT for frequency-domain analysis, pass/fail mask testing, and a 6-bit hardware frequency counter. Waveform data and screenshots transfer via USB-Host and USB-Device. The instrument carries CE and cETLus certifications and a 3+2 year warranty.

It suits education and entry-level bench applications requiring a compact 50 MHz two-channel DSO with standard automated measurement and basic waveform analysis at a utility-class footprint.

Key Features

• Bandwidth=50MHz
• Channels=2Ch
• Sample Rate=1GSa/s
• Memory Depth=64kpts
• Vertical Resolution=8 bits
