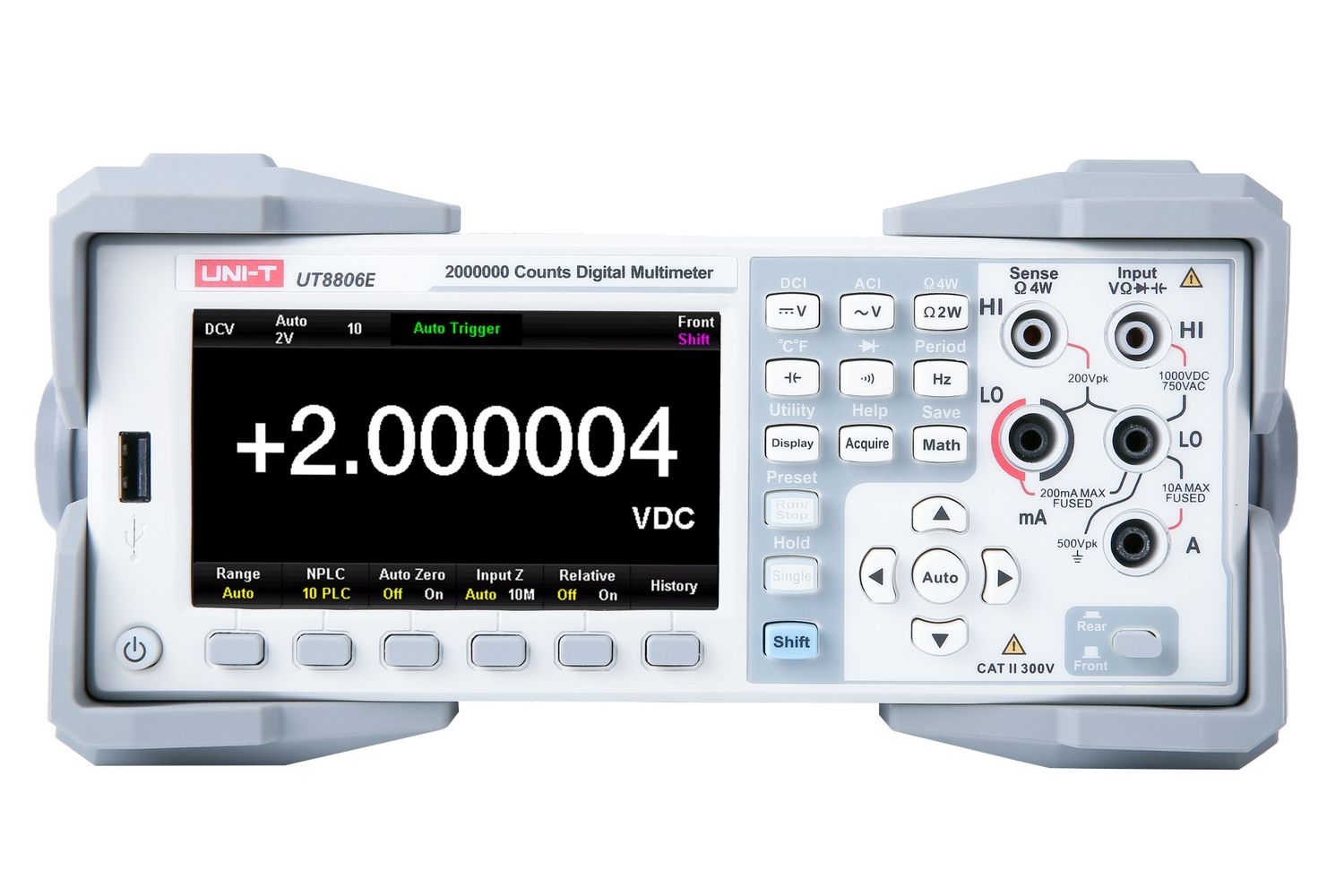

Experience accuracy and efficiency with the UNI-T UT8806E Desktop Digital Multimeter.

UNI-T UT8806E Counts

Are you looking for unparalleled precision and accuracy in your measurements? Discover the UT8806E, a 6½ digit dual-display digital multimeter designed to meet your needs for multifunctionality, high precision, and automated measurements. Explore a groundbreaking standard in electrical measurement tools with the UT8806E, an auto-ranging, true RMS desktop digital multimeter. Find out how it can transform your engineering projects.

UNI-T UT8806E Key Specifications:

• Max Reading: 2000000
• DC voltage measurement ranges: 200mV/2V/20V/200V/1000V
• DC current measurement ranges: 2μA/20μA/200μA/2mA/20mA/200mA/2A/10A
• DC voltage accuracy: 0.0035%+0.0006%
• AC voltage measurement ranges (RMS): 200mV/2V/20V/200V/750V
• AC current measurement ranges (RMS): 200μA/2mA/20mA/200mA/2A/10A
• Resistance measurement ranges (2-wire, 4-wire): 20Ω/200Ω/2kΩ/20kΩ/200kΩ/2MΩ/10mΩ/100Ω/1GΩ
• Capacitance measurement ranges: 2nF/20nF/200nF/2μF/200μF/2mF/20mF/100mF
• Conduction Range: 2000Ω 1mA
• Diode Range: 4V 1mA
• Frequency measurement: 3Hz to 1MHz
• Data Storage: 10k 32Gb Nand Flash
• Temperature measurement: Support both thermocouple & thermal resistance sensor
• Maximum reading rate: 10k rdgs/s
• Protocol: SCPI

Key Features:

UNI-T UT8806E Dual Display

• Various Mathematical Operation Functions: The UT8806E multimeter facilitate enhanced measurement analysis through the implementation of automated data processing.

  Engineering Use Case: In telecommunications, this multimeter can analyze signals by employing dB and dBm operations on voltage measurements, ensuring adherence to the specified standards for signal strength.

• Dual Parameter Display: Both primary and secondary parameters are presented on a single screen, allowing for simultaneous reading of the two relevant values.

  Engineering Use Case: This feature will empower engineers to make informed decisions promptly, as they can observe critical parameters simultaneously, contributing to effective troubleshooting and optimization.

• Multiple Data Display Modes: The display mode can be switched freely, and the graphical display can more clearly show the data change trend.

  Engineering Use Case: When engaged in laboratory environmental monitoring, utilize the Trend Graph mode to monitor temperature variations over time and recognize recurring patterns.

UNI-T UT8806E Display - Trend Graph

• Powerful Help Function: Enter the help system with one click, and you can quickly become familiar with the functions without consulting the user manual.

  Engineering Use Case: This will help facilitate efficient troubleshooting in a laboratory setting by allowing users to quickly find relevant information, reducing downtime associated with searching through the user manual.

• Built-in Cold Junction Compensation: Automatic cold end compensation inside the machine without external intervention, making temperature measurement more accurate.

  Engineering Use Case: Streamlines the temperature measurement process, eliminating the necessity for users to perform additional steps for cold end compensation, making operation more straightforward.

With UT8806E, software update can be achieved through USB flash drive and is easy to operate. It comes standard with host computer software, enabling remote control of human and machine separation. It supports one-click self-test, performs self-check on basic functions and gives prompts. You can also freely select test items through buttons, and remote control makes switching easier. UT8806E comes with benefits that will enhance your engineering pursuits. Get one today and incorporate it as a vital element in your toolkit!

UNI-T UT8806E Mass Storage
