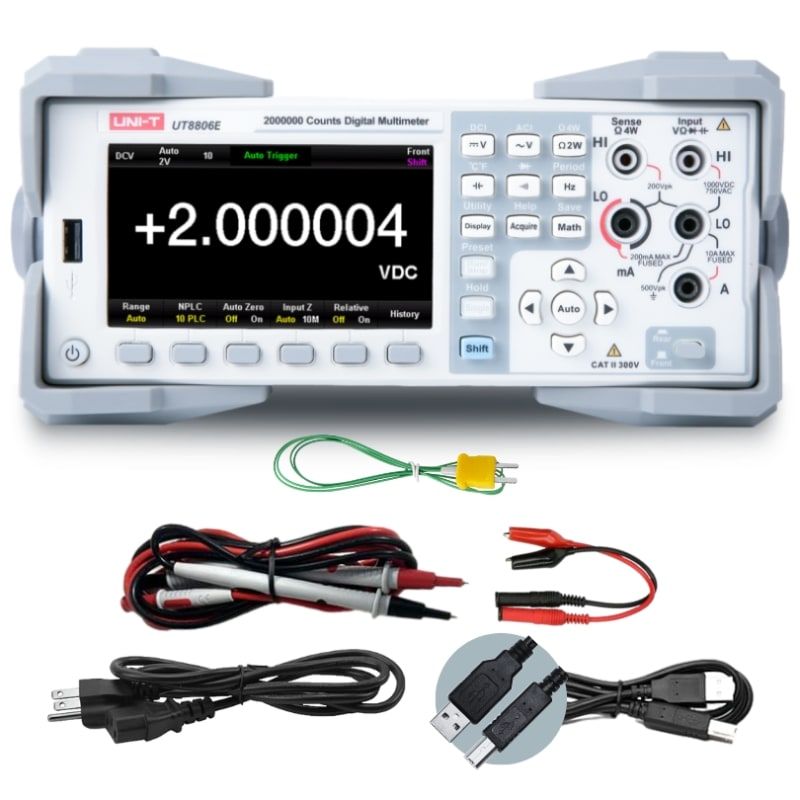

UT8806E 6.5 Digit Performance-Series Bench Digital Multimeter
$860.00
6.5-digit auto-ranging True RMS bench multimeter with 0.0035% accuracy, dual-display TFT. Lab-grade precision for metrology, calibration, and advanced research applications.
In stock
Customer reviews
Reviews only from verified customers
No reviews yet. You can buy this product and be the first to leave a review.
UT8806E 6.5 Digit Performance-Series Bench Digital Multimeter
Product Details
UPC: 6935750588192
Manufacturer: UNI-T
Warranty: 3 years
Literature: https://instruments.uni-trend.com/download?cate=32
Equipment Type: Bench Digital Multimeter
The UT8806E is a 6½-digit Performance-Series bench digital multimeter with a 1,999,999-count display, 0.0035% basic DC voltage accuracy, True-RMS AC measurement, and a 10,000 readings/second maximum reading rate, shown on a 4.3-inch 480 × 272 TFT-LCD. It is the flagship of the UT8800E series.
DC voltage resolves to 0.1 µV and resistance to 10 µΩ, with four-wire (Kelvin) resistance to 1 GΩ, dual display, and a full math/statistics/dB/dBm/Pass-Fail suite across four display modes. Thermocouple and RTD temperature measurement spans −270 °C to 1820 °C with cold-end compensation, 32 Gb of NAND flash holds measurement files and setups, and SCPI control is available over LAN, RS-232, and USB with VXI-11 and USBTMC support.
It suits metrology-tier bench measurement, calibration support, and high-resolution R&D characterization where reading rate and accuracy matter at the same time.
Key Features
- Digits=6.5
- Count=1,999,999
- Accuracy=0.0035%
- True RMS=Yes
- Interface=LAN, RS232, USB-Device, USB-Host
Specifications
| Display Digits | 6½ (6.5) |
| Resolution Count | 1,999,999 |
| Basic DC Voltage Accuracy | 0.0035% |
| DC Voltage Resolution | 0.1μV |
| DC Current Resolution | 1pA |
| Resistance Measurement Resolution | 10μΩ |
| Maximum Reading Rate | 10,000 rdgs/s |
| True-RMS | Yes |
| Auto-Ranging | Yes |
| Capacitance Range (max) | 100 mF |
| Frequency Counter Range | 3 Hz – 1 MHz |
| AC Frequency Response | 300 kHz |
| Temperature Range | -270°C to 1820°C |
| Temperature Accuracy | 0.5°C |
| Four-Wire Resistance | Yes |
| Dual Display | Yes |
| Math Operations | Statistics, Limits, Pass/Fail, dB, dBm, Relative |
| Internal Storage | 32 Gb NAND Flash |
| Display | 4.3in TFT LCD |
| Display Resolution | 480×272 |
| Touch Screen | No |
| Interface | LAN / RS-232 / USB-Host / USB-Device |
| Remote Command Set | SCPI (VXI-11, USBTMC, IEEE-488.2-style) |
| Certifications | CE | cETLus |
