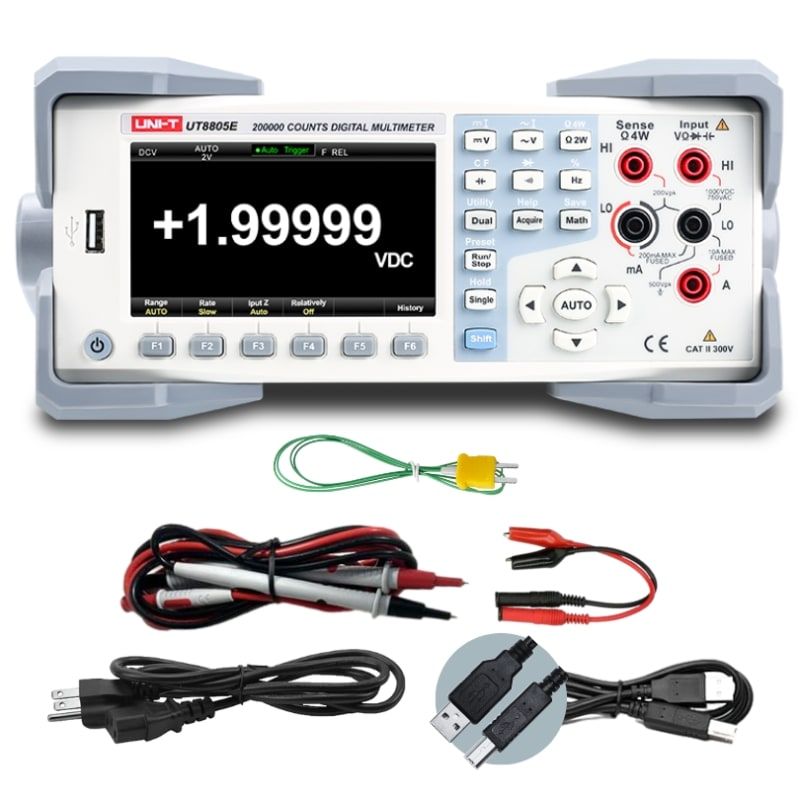

UT8805E 5.5 Digit Performance-Series Bench Digital Multimeter
$489.00
5.5-digit auto-ranging True RMS bench multimeter with 0.015% accuracy, dual-display TFT. Precision measurement for demanding R&D, calibration, and production test applications.
In stock
Customer reviews
Reviews only from verified customers
No reviews yet. You can buy this product and be the first to leave a review.
UT8805E 5.5 Digit Performance-Series Bench Digital Multimeter
Product Details
UPC: 6935750588147
Manufacturer: UNI-T
Warranty: 3 years
Literature: https://instruments.uni-trend.com/download?cate=27
Equipment Type: Bench Digital Multimeter
The UT8805E is a 5½-digit Performance-Series bench digital multimeter with a 199,999-count display, 0.015% basic DC voltage accuracy, True-RMS AC measurement, and a 5,000 readings/second maximum reading rate, shown on a 4.3-inch 480 × 272 TFT-LCD. SCPI over LAN, RS-232, and USB makes it a drop-in for automated test setups.
DC voltage resolves to 1 µV and resistance to 0.1 mΩ, with four-wire (Kelvin) resistance to eliminate lead and contact resistance, dual display for two simultaneous parameters, and a full math/statistics/dB/dBm/Pass-Fail suite. Four display modes (Number, Bar Graph, Trend Graph, Histogram), thermocouple and RTD temperature measurement (−270 °C to 1820 °C with cold-end compensation), 10,000-reading internal storage, and remote control over VXI-11 and USBTMC complete the platform.
It suits R&D measurement and small-lab production test where SCPI automation, four-wire resistance, dual display, and the full math suite move the work from a general-purpose bench DMM to an instrumented test station.
Key Features
- Digits=5.5
- Count=199,999
- Accuracy=0.015%
- True RMS=Yes
- Interface=LAN, RS232, USB-Device, USB-Host
Specifications
| Display Digits | 5½ (5.5) |
| Resolution Count | 199,999 |
| Basic DC Voltage Accuracy | 0.015% |
| DC Voltage Resolution | 1μV |
| DC Current Resolution | 1nA |
| Resistance Measurement Resolution | 0.1mΩ |
| Maximum Reading Rate | 5,000 rdgs/s |
| True-RMS | Yes |
| Auto-Ranging | Yes |
| Capacitance Range (max) | 2 mF |
| Frequency Counter Range | 20 Hz – 1 MHz |
| AC Frequency Response | 100 kHz |
| Temperature Range | -270°C to 1820°C |
| Temperature Accuracy | 0.5°C |
| Four-Wire Resistance | Yes |
| Dual Display | Yes |
| Math Operations | Statistics, Limits, Pass/Fail, dB, dBm, Relative |
| Internal Storage | 10,000 readings |
| Display | 4.3in TFT LCD |
| Display Resolution | 480×272 |
| Touch Screen | No |
| Interface | LAN / RS-232 / USB-Host / USB-Device |
| Remote Command Set | SCPI (VXI-11, USBTMC, IEEE-488.2-style) |
| Certifications | CE | cETLus |
