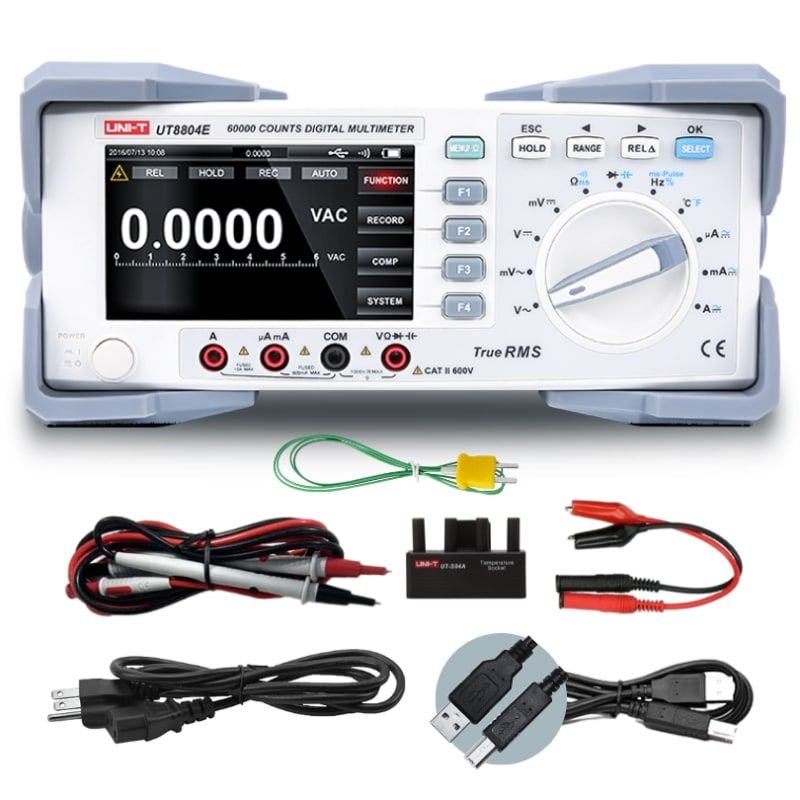

UT8804E 4.8 Digit Advanced-Series Bench Digital Multimeter

The UT8804E is a 4⅚-digit Advanced-Series bench digital multimeter with a 59,999-count display, 0.025% basic DC voltage accuracy, True-RMS AC measurement, and auto-ranging, shown on a 4.3-inch TFT-LCD with a digitized analog bar graph. Data recording, statistical analysis, trend-chart visualization, and Pass/Fail batch comparison are built in.

DC voltage resolves to 0.001 mV, with capacitance to 60 mF, a 60 Hz to 60 MHz frequency counter, thermocouple temperature measurement (−40 °C to 1000 °C), and Max/Min/Average, Pass/Fail, and Relative math. Multiple parameters per measurement function and a USB-Device interface with included PC software round out the instrument, combining measurement, logging, and analysis in one unit.

It suits R&D bench validation, burn-in monitoring, and small-batch quality control that needs a recording-and-statistics workflow above a basic 4½-digit meter but below a 6½-digit instrument.

Key Features

• Digits=4.8
• Count=59,999
• Accuracy=0.025%
• True RMS=Yes
• Interface=USB-Device
