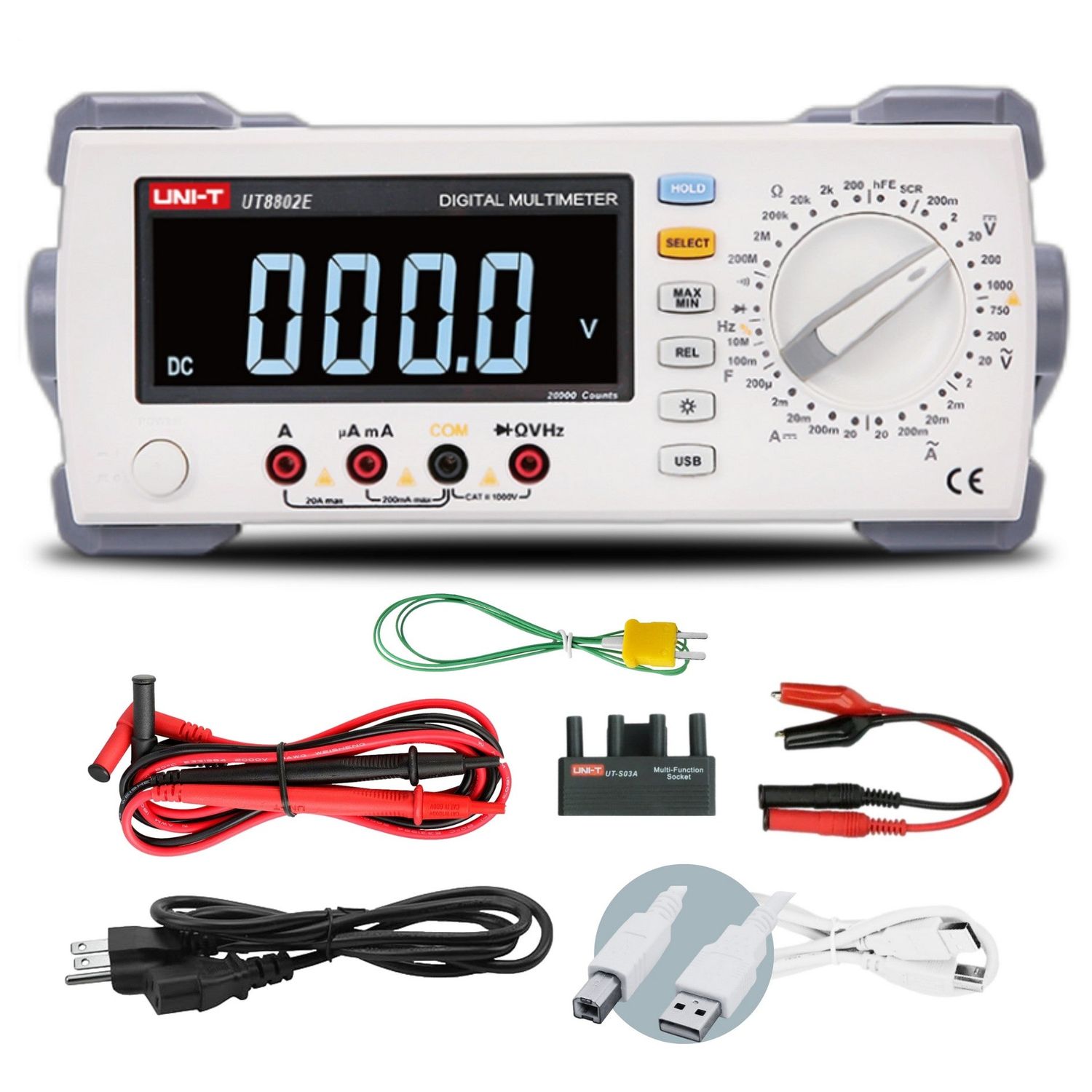

UT8802E 4.5 Digit Value-Series Bench Digital Multimeter

The UT8802E is a 4½-digit Value-Series bench digital multimeter with a 19,999-count display and 0.1% basic DC voltage accuracy. It provides the full AC/DC voltage, AC/DC current, resistance, capacitance, diode, continuity, frequency, and duty-cycle function set of the UT8800E series with manual range selection, for routine measurement at the value tier.

DC voltage resolves to 10 µV, DC current to 10 nA, and resistance to 0.01 Ω, with capacitance to 100 mF and a 200 Hz to 10 MHz frequency counter, at a 3 readings/second rate. Triode and thyristor characteristic measurement is supported through an optional test fixture, screening bipolar transistors and SCRs for on-voltage, conduction direction, and current gain. A USB-Device interface connects to a host PC running the included software for historical-data viewing and trend monitoring.

It suits electronics troubleshooting, prototype validation, and component test where measurements are routine and budget is a consideration.

Key Features

• Digits=4.5
• Count=19,999
• Accuracy=0.1%
• Interface=USB-Device
