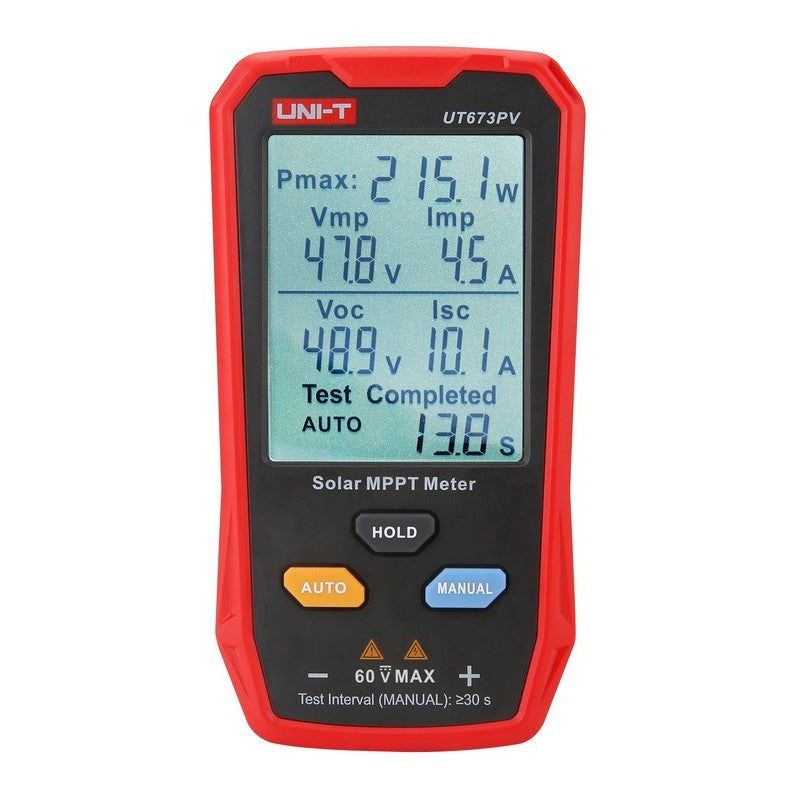

UT673PV Solar Pro MPPT PV Meter
$59.99
Solar MPPT meter for measuring maximum power point, open-circuit voltage, and short-circuit current on PV panels and strings. A fast, purpose-built diagnostic for solar installers and O&M crews.
In stock
Customer reviews
Reviews only from verified customers
No reviews yet. You can buy this product and be the first to leave a review.
UT673PV Solar Pro MPPT PV Meter
Product Details
UPC: 6935750567333
Manufacturer: UNI-T
Warranty: 3 years
Literature: https://storage.googleapis.com/uni-tdocuments/Meter%20Datasheets/UT673PV_datasheet.pdf
Equipment Type: Industrial Meter
The UT673PV is a solar MPPT meter that finds a panel's maximum power point and reads the values that indicate performance. It connects through integrated MC4 connectors and is powered by the panel under test, so there are no batteries to charge.
It measures maximum power from 5 W to 800 W, open-circuit and peak-power voltage from 12 V to 60 V, and short-circuit and peak-power current from 0 A to 35 A, all at ±(1.5% + 5) (power at ±(1.0% + 10)). A manual MPPT test, a data-hold function, and a backlit color LCD support field readings.
It suits solar installers and maintenance technicians checking individual panel and string performance.
Key Features
- Voc Range=12 - 60V
- Isc Range=0 - 35A
- DC Power MPPT=5 - 800W
Specifications
| Max Power (Pmax) | 5 to 800 W, ±(1.0% + 10) |
| Max-Power Current (Imp) | 0 to 35 A, ±(1.5% + 5) |
| Max-Power Voltage (Vmp) | 12 to 60 V, ±(1.5% + 5) |
| Open-Circuit Voltage (Voc) | 12 to 60 V, ±(1.5% + 5) |
| Short-Circuit Current (Isc) | 0 to 35 A, ±(1.5% + 5) |
| Display | Color LCD (52 × 66 mm) |
| Backlight | Yes |
| Manual MPPT Test | Yes |
| Data Hold | Yes |
| Power | Powered by solar panel (no battery) |
| Dimensions (L × W × D) | 143 × 74 × 25 mm |
| Certification | CE |
