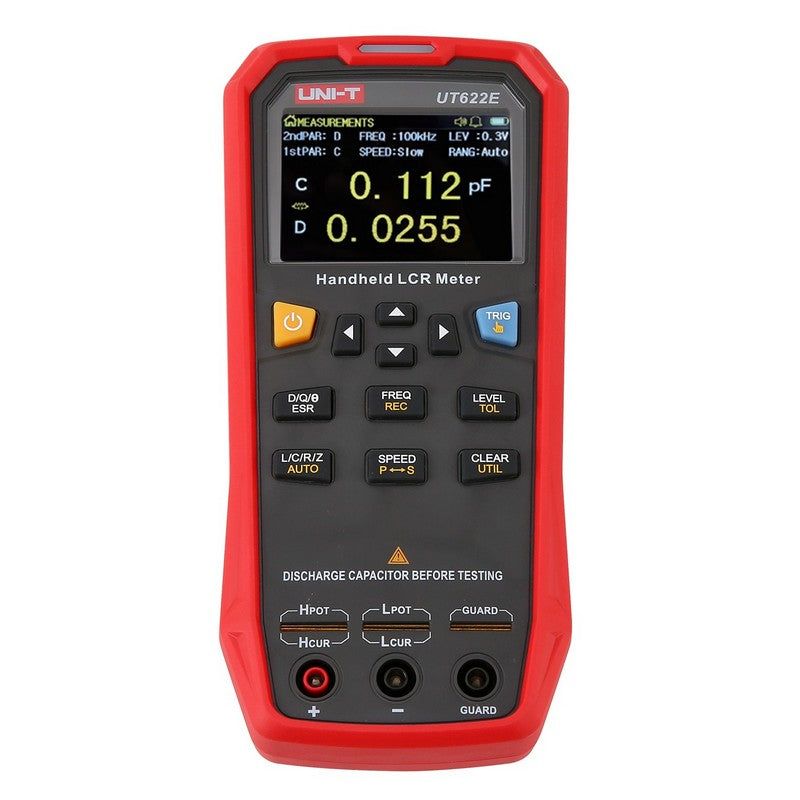

UT622E Advanced LCR Meter
$325.00
Advanced handheld LCR meter with DCR measurement, 100 Hz–100 kHz range, and 0.1% accuracy. The top-tier portable solution for power electronics designers and researchers who need DC resistance alongside AC impedance.
In stock
Customer reviews
Reviews only from verified customers
No reviews yet. You can buy this product and be the first to leave a review.
UT622E Advanced LCR Meter
Product Details
UPC: 6935750562239
Manufacturer: UNI-T
Warranty: 3 years
Literature: https://storage.googleapis.com/uni-tdocuments/Meter%20Datasheets/UT622%20Series%20Data%20Sheet.pdf
Equipment Type: LCR Meter
The UT622E is the top model in the UT622 series: a handheld LCR meter that measures to 100 kHz and adds DC resistance (DCR) from 0.01 mΩ to 20 MΩ, so one instrument characterizes both a component's AC behavior and its DC resistance — useful for windings, contacts, and low-value parts.
It measures inductance, capacitance, resistance, impedance, ESR, and D/Q at 0.1% basic accuracy across 100 Hz to 100 kHz, with a 4-wire Kelvin connection, open/short correction, series and parallel modelling, auto-ranging, selectable signal levels, and tolerance sorting.
It suits electronics QC, repair, and design work needing both AC component characterization and accurate low-value DC resistance.
Key Features
- Test Signal Level=0.1Vrms, 0.3Vrms, 1Vrms
- Impedance=0.0000Ω - 9.9999MΩ
- ESR Range=0.0000Ω - 999.99Ω
- D/Q Range=D: 0.0000 - 9.9999; Q: 0.0000 - 99999
Specifications
| Frequency | 100 Hz, 120 Hz, 1 kHz, 10 kHz, 100 kHz |
| Capacitance | 0.00 pF to 99.999 mF |
| Inductance | 0.00 µH to 99.999 H |
| Impedance | 0.0000 Ω to 9.9999 MΩ |
| ESR Range | 0.0000 Ω to 999.99 Ω |
| Max Resistance | 20 MΩ (DCR: 0.01 mΩ to 20.000 MΩ) |
| Accuracy | 0.10% |
| D/Q Range | D: 0.0000 to 9.9999; Q: 0.0000 to 99999 |
| Impedance Phase Range | -179.9° to 179.9° |
| Test Signal Level | 0.1 Vrms, 0.3 Vrms, 1 Vrms |
| Output Impedance | 100 Ω |
| Tolerance Range | 1% to 20% |
| Equivalent Circuit | Series, Parallel |
| Auto Ranging | Yes |
| Auto LCR | Yes |
| Open Short Correction | Yes |
| Test Method | 4-Wire Kelvin |
| Data Logging | Yes |
| Fastest Test Rate | 20 times/s |
| Interface | Mini-USB |
| Data Storage | 500 groups |
| Display Size | 2.8in |
| Display Type | TFT LCD |
| Display Resolution | 320×240 |
| Battery | 3.7 V 1800 mAh Li-polymer |
| Battery Life | 8 hours |
| Ambient Temperature Range | 0 °C to 40 °C |
| Weight | 420 g |
| Dimensions | 93 × 192 × 44 mm |
