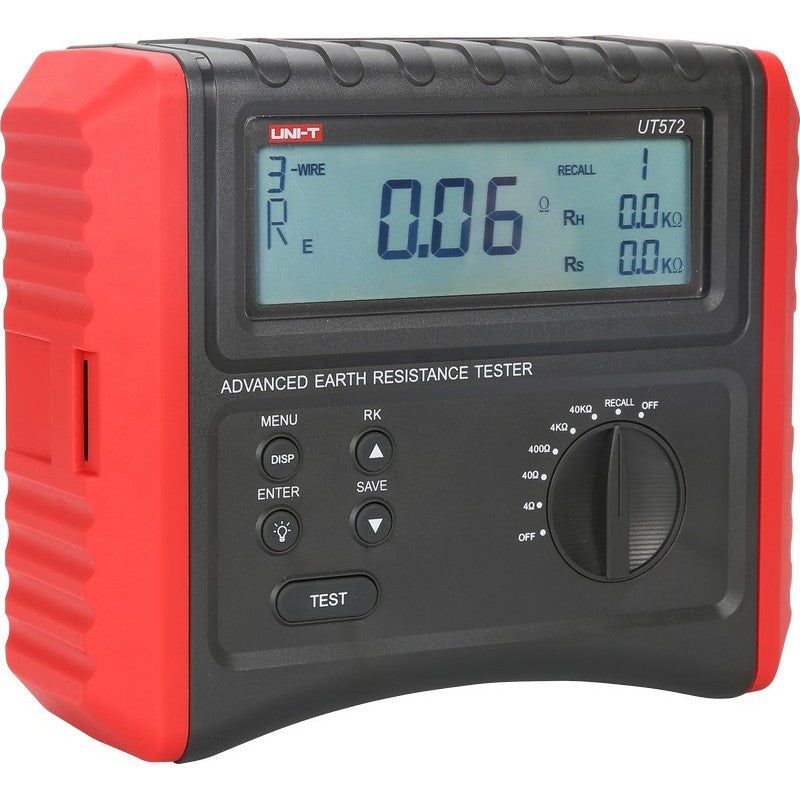

UT572 4-Wire Ground Resistance Test Kit
$651.00
2/3/4-wire earth ground resistance tester with soil resistivity measurement. Essential for electrical contractors and facility engineers verifying grounding systems, lightning protection, and earth electrode installations.
In stock
Customer reviews
Reviews only from verified customers
No reviews yet. You can buy this product and be the first to leave a review.
UT572 4-Wire Ground Resistance Test Kit
Product Details
UPC: 6935750557204
Manufacturer: UNI-T
Warranty: 3 years
Literature: https://storage.googleapis.com/uni-tdocuments/Meter%20Datasheets/UT572.pdf
Equipment Type: Low Resistance
The UT572 is a ground resistance test kit that verifies grounding systems using 2-, 3-, and 4-wire earth-resistance methods and adds soil-resistivity measurement, so the same kit checks an existing electrode and surveys ground for a new one. It is rated CAT III 600 V.
It measures across five ranges from 4 Ω to 40 kΩ, with dual test frequencies (94 Hz / 128 Hz) and disturbance-voltage handling to keep readings stable on live sites. Soil resistivity is measured over 1 m to 40 m electrode spacing, and 20 result groups store on-board. The kit runs on AA batteries for field portability.
It suits electrical contractors, utilities, and telecom and lightning-protection work involving grounding verification and soil surveys.
Key Features
- Methods=2-Wire, 3-Wire, 4-Wire
- Soil Resistivity=4Ω / 40Ω / 400Ω / 4kΩ / 40kΩ (1 - 40m spacing)
- Test Frequency=94Hz / 128Hz
Specifications
| Max Resistance | 4 Ω / 40 Ω / 400 Ω / 4 kΩ / 40 kΩ |
| Accuracy | ±(3% + 5) to ±(3% + 15) depending on range |
| Disturbance Voltage | 50 V DC / 40 Hz to 500 Hz AC |
| Disturbance Frequency | 40 Hz to 500 Hz |
| Soil Resistivity | 4 Ω / 40 Ω / 400 Ω / 4 kΩ / 40 kΩ (1 to 40m spacing) |
| Earth Resistance Methods | 2-Wire, 3-Wire, 4-Wire |
| Test Frequency | 94 Hz / 128 Hz |
| Data Storage | 20 groups |
| CAT Rating | CAT III 600 V |
| Display Type | LCD |
| Battery | 1.5 V LR6 ×8 |
| Weight | 1.1 kg |
| Dimensions | 210 × 175 × 90 mm |
