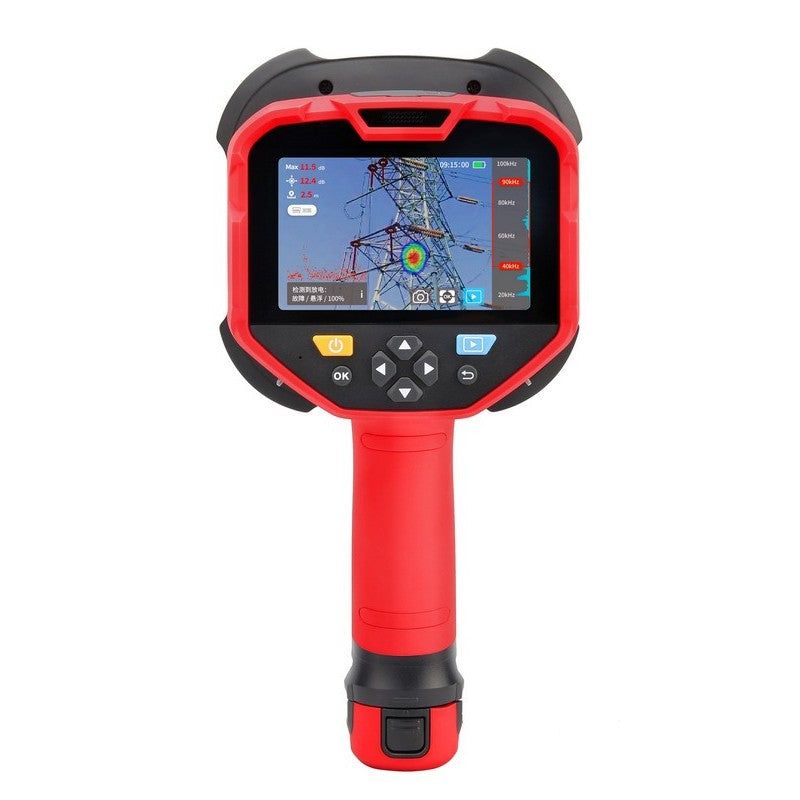

UT568B Acoustic Imaging Camera
$8 999.00
138-channel MEMS acoustic imaging camera covering 2–100 kHz at 25 FPS. Visualizes compressed air leaks, vacuum leaks, and partial discharge in real time, helping maintenance teams find and fix costly leaks and electrical faults faster than traditional methods.
In stock
Customer reviews
Reviews only from verified customers
No reviews yet. You can buy this product and be the first to leave a review.
UT568B Acoustic Imaging Camera
Product Details
UPC: 6935750556818
Manufacturer: UNI-T
Warranty: 3 years
Literature: https://storage.googleapis.com/uni-tdocuments/Meter%20Datasheets/UT568B-Data-Sheet.pdf
Equipment Type: Accoustic Imager
The UT568B is a 138-microphone acoustic imaging camera that maps sound onto a live camera image. It locates ultrasonic and audible noise from 2 kHz to 100 kHz and overlays it on a 13 MP image at 25 frames per second, so a compressed-air leak, a vacuum leak, or partial discharge appears as a coloured hotspot identifiable from several metres away.
A 4.3 in touchscreen, on-screen analysis, a laser rangefinder, and single, multi, and hologram imaging modes make a source quick to locate and document. A 200 kHz sample rate, 128 GB storage, Wi-Fi and a Bluetooth app, and IP54 sealing support field use, with about 3 hours of battery life.
It suits compressed-air leak surveys, energy audits, and electrical partial-discharge inspection.
Key Features
- Acoustic Sensor=High sensitivity digital MEMS microphones
- Frequency Range=2kHz - 100kHz
- Field of View=60° x 40°
- Display Size=4.3in
Specifications
| Frequency Range | 2 kHz - 100 kHz |
| Interface | USB-Type-C |
| Data Storage | 128GB SD card |
| Display Type | LCD |
| Display Size | 4.3in |
| Weight | 1.35 kg |
| IP Rating | IP54 |
| Dimensions | 163 × 286 × 140 mm |
| Bluetooth App | Yes |
| Battery Life | approx 3h |
| Ambient Temperature Range | -20 °C - 50 °C |
| Touch Screen | Yes |
| Sample Rate | 200 kHz |
| Refresh Rate | 25FPS |
| WiFi | Yes |
| Languages | English, Simplified Chinese |
| Voice Control | Yes |
| Field of View | 60° × 40° |
| Image Modes | Single, Multi, Hologram |
| Image Format | JPEG |
| Video Format | MP4 |
| Video Recording | Yes |
| Laser LRF | Yes |
| Pipeline Diameter | 0.3 - 150m detection distance |
| Acoustic Sensor | High sensitivity digital MEMS microphones |
| On Screen Analyzer | Yes |
| Digital Camera | 13MP |
