UT513B 5kV High-Voltage Insulation Resistance Tester
$699.99
2000GΩ insulation resistance tester with test voltages up to 5kV and PI/DAR/SV analysis. Built for utility and industrial electricians testing MV cables, large transformers, and generators.
In stock
Customer reviews
Reviews only from verified customers
No reviews yet. You can buy this product and be the first to leave a review.

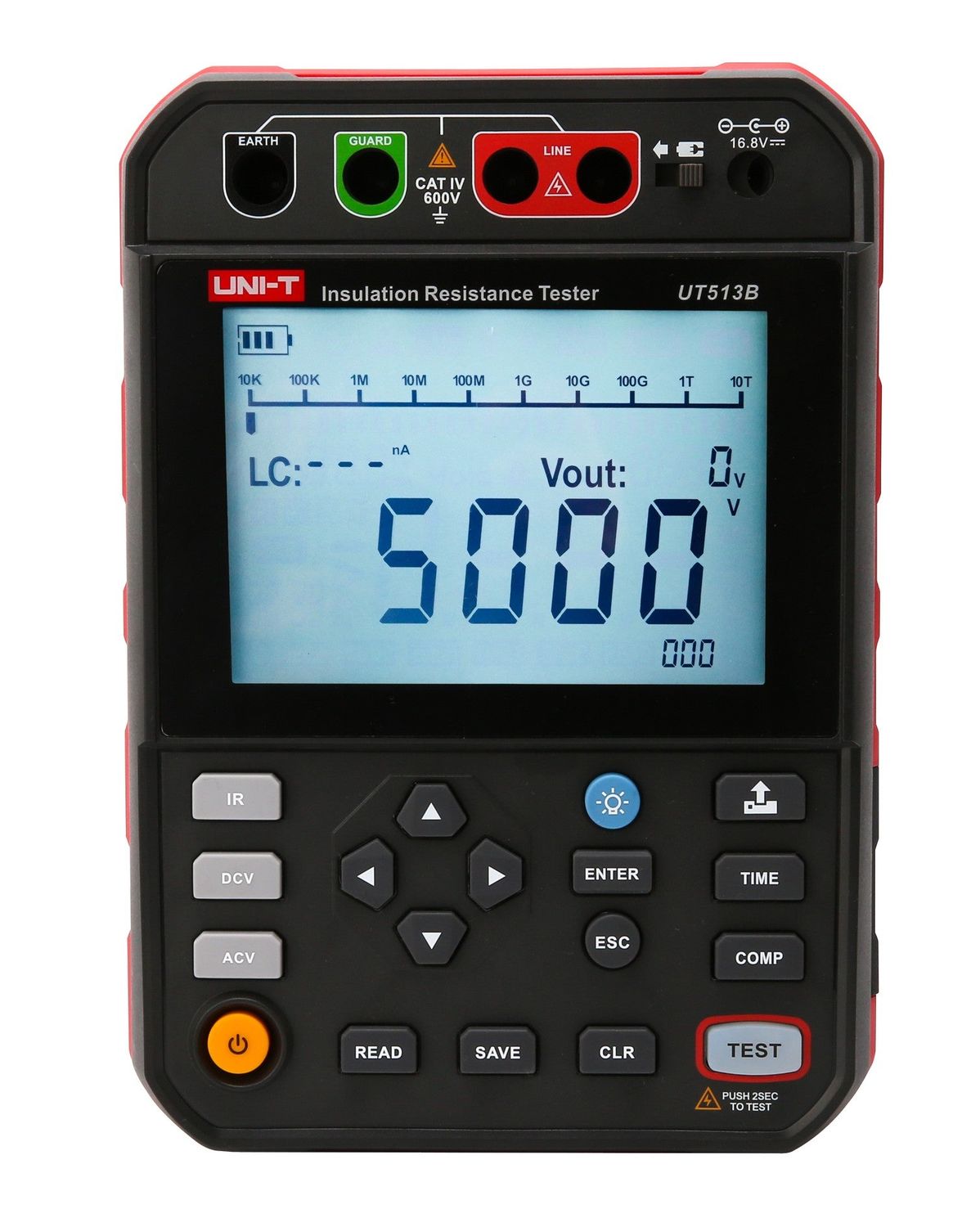

UT513B 5kV High-Voltage Insulation Resistance Tester
Product Details
UPC: 6935750551325
Manufacturer: UNI-T
Warranty: 3 years
Literature: https://storage.googleapis.com/uni-tdocuments/Meter%20Datasheets/UT513B_UT513C_ds.pdf
Equipment Type: Insulation Resistance Meter
The UT513B is a 5 kV insulation resistance tester rated CAT IV 600 V, with the headroom for medium-voltage motors, transformers, switchgear, and long cable runs.
It applies selectable test voltages from 250 V to 5000 V and reads insulation resistance up to 2 TΩ at ±(5% + 5). It runs the timed diagnostics that distinguish healthy insulation from a passing spot check — Polarization Index, Dielectric Absorption Ratio, and a 10%-of-range stepped-voltage profile — with a timer, a comparison function, a high-voltage alarm, automatic discharge, storage for 999 result sets, and USB transfer.
It suits utility, industrial, and commissioning work on medium-voltage assets and long cable systems.
Key Features
- Max Test Voltage=5000V
- Insulation Resistance=Yes
- Polarization Index=Yes
- Charge Current=3.5mA
- Interface=USB
Specifications
| Test Voltages | 250 V / 500 V / 1000 V / 2500 V / 5000 V |
| Insulation Resistance | up to 2 TΩ |
| IR Accuracy | ±(5% + 5) |
| DC Voltage | 30 to 1000 V, ±(3% + 5) |
| AC Voltage | 30 to 750 V, ±(3% + 5) |
| Test Current | 0.01 nA to 3.5 mA |
| Short-Circuit Current | ≈3.5 mA |
| PI / DAR | Yes |
| Timer Measurement | Yes (0s to 99m 59s) |
| Stepping Voltage | 10% of range |
| Comparison Function | Yes |
| Auto Discharge | Yes |
| High Voltage Alarm | Yes |
| Data Storage | 999 sets |
| Data Communication | USB |
| Safety Rating | CAT IV 600 V |
| Power | 14.8 V 5200 mAh Li-ion (rechargeable) |
| Dimensions (L × W × D) | 238 × 166 × 90.5 mm |
| Weight | ≈1800 g |
