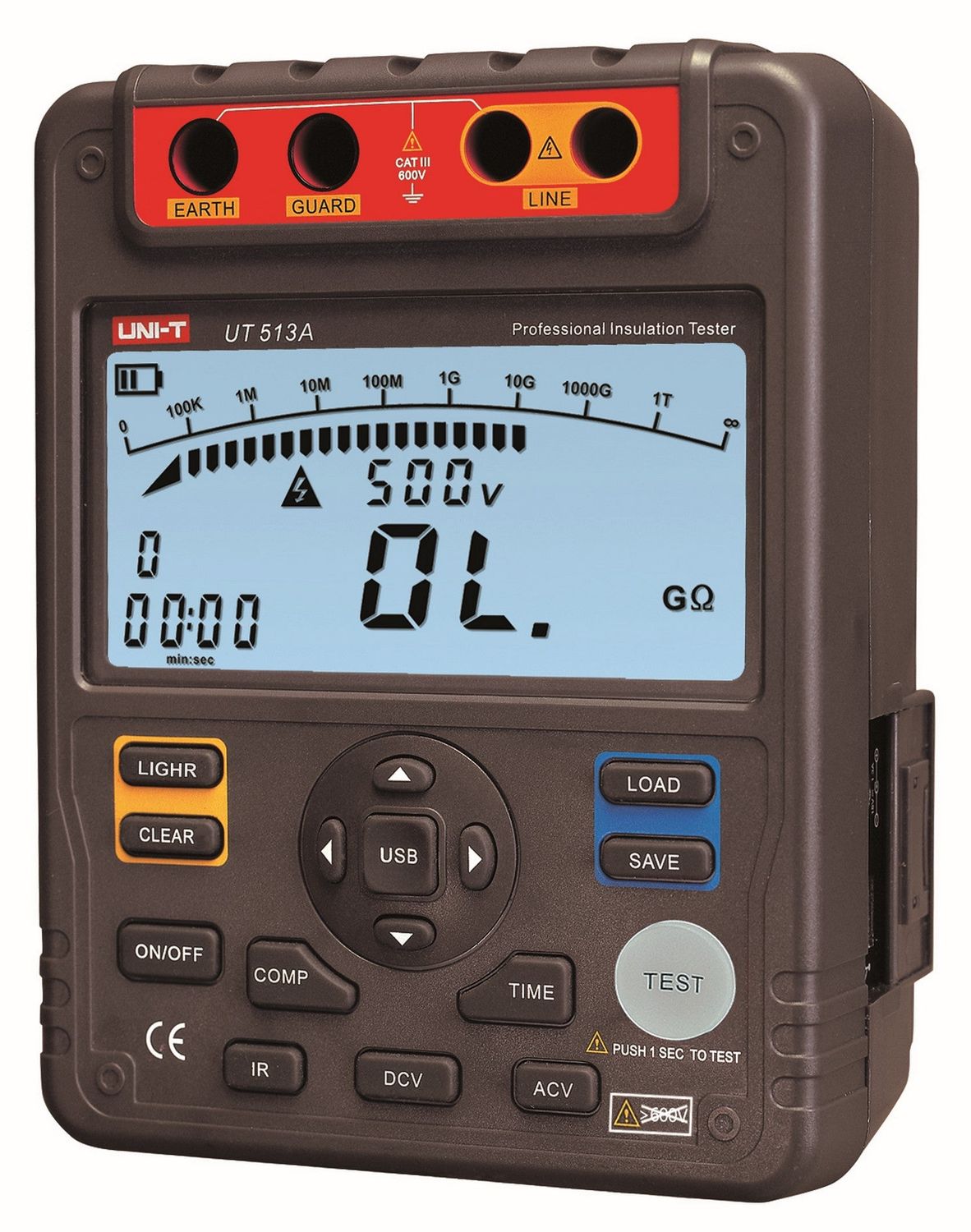

UT513A 5kV Basic Insulation Resistance Tester
$479.99
1000GΩ insulation resistance tester with test voltages up to 5000V. Designed for electrical contractors and maintenance teams testing high-voltage cables, transformers, and rotating machinery.
In stock
Customer reviews
Reviews only from verified customers
No reviews yet. You can buy this product and be the first to leave a review.
UT513A 5kV Basic Insulation Resistance Tester
Product Details
UPC: 6935750505137
Manufacturer: UNI-T
Warranty: 3 years
Literature: https://storage.googleapis.com/uni-tdocuments/Meter%20Datasheets/UT513A%20Datasheet.pdf
Equipment Type: Insulation Resistance Meter
The UT513A is a 5 kV digital insulation resistance tester for routine maintenance and commissioning, rated CAT III 600 V.
It outputs test voltages up to 5000 V and reads insulation resistance up to 1 TΩ at ±(3% + 5). A Polarization Index test flags moisture and aging, leakage current is displayed, and the circuit discharges automatically when a test ends. Auto-ranging, a comparison function, USB transfer, and on-board storage cover everyday checks of motor windings, cables, and switchgear.
It suits maintenance and commissioning teams needing core 5 kV insulation testing without added diagnostics.
Key Features
- Max Test Voltage=5000V
- Insulation Resistance=Yes
- Polarization Index=Yes
- Charge Current=3.5mA
- Interface=USB
Specifications
| DC Voltage In | 600 V |
| AC Voltage In | 600 V |
| Max Resistance | 1 TΩ |
| Resistance Accuracy | ±(3% + 5) |
| Max IR Test Voltage | 5000 V |
| Insulation Resistance | Yes |
| Test Voltage Accuracy | 0% – 20% |
| Short Circuit Current | > 3.5 mA |
| Charge Current | 3.5 mA |
| Auto Ranging | Yes |
| Comparison Function | Yes |
| Polarization Index | Yes |
| Auto Discharge | Yes |
| Interface | USB |
| Data Storage | 18 |
| CAT Rating | CAT III 600 V |
| Weight | 2 kg |
| Dimensions | 202 × 155 × 94 mm |
