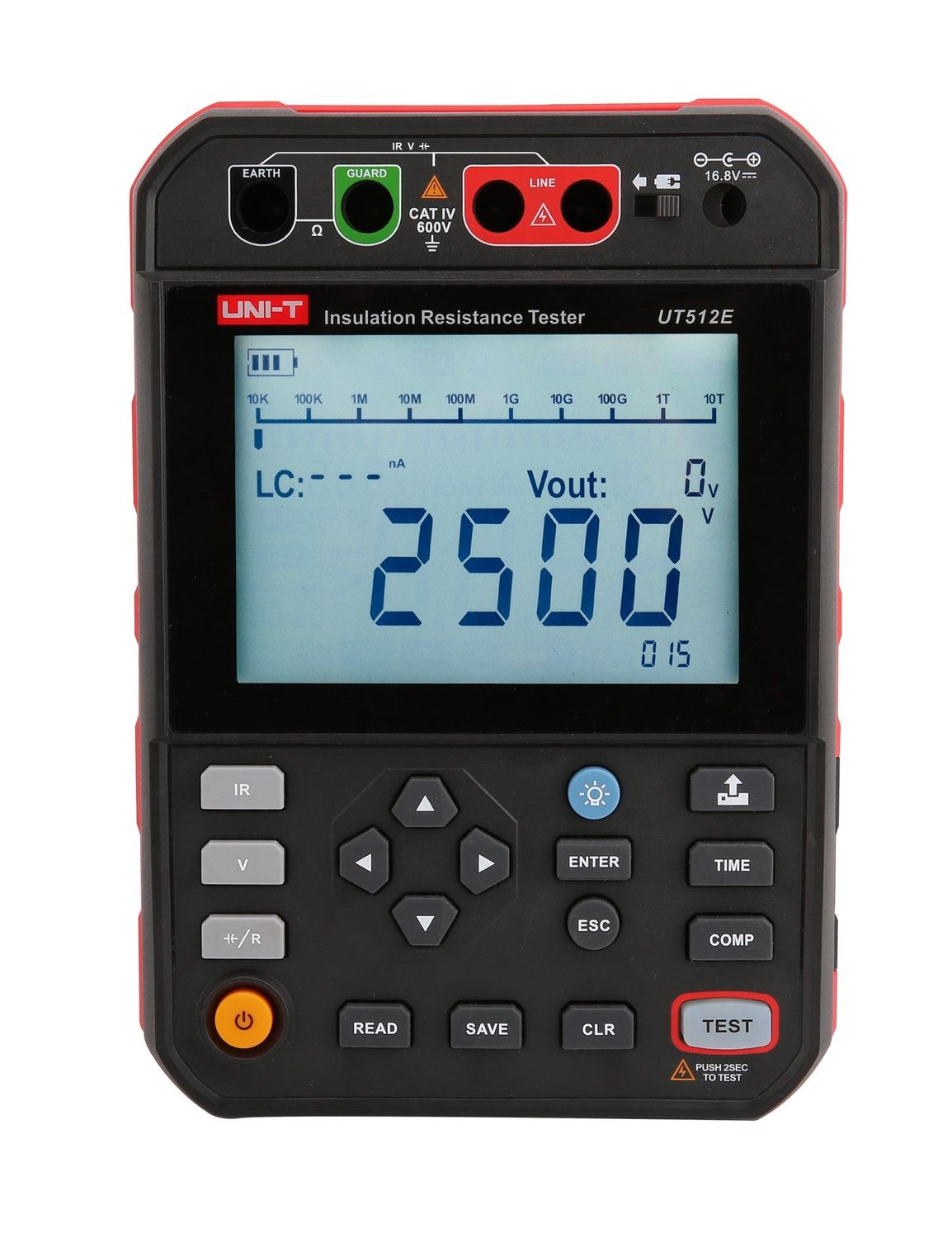

UT512E 2500V Digital Insulation Resistance Tester
$499.99
250GΩ insulation resistance tester with test voltages up to 2500V and PI/DAR analysis. Designed for electrical contractors and maintenance teams testing cables, motors, and switchgear insulation.
In stock
Customer reviews
Reviews only from verified customers
No reviews yet. You can buy this product and be the first to leave a review.
UT512E 2500V Digital Insulation Resistance Tester
Product Details
UPC: 6935750551264
Manufacturer: UNI-T
Warranty: 3 years
Literature: https://storage.googleapis.com/uni-tdocuments/Meter%20Datasheets/UT512D%20UT512E.pdf
Equipment Type: Insulation Resistance Meter
The UT512E is a 2.5 kV digital insulation resistance tester rated CAT IV 600 V, suited to low- and medium-voltage motors, cables, and switchgear where full 5 kV output is not required but a wide, high-resistance range still is.
It applies test voltages up to 2500 V and reads insulation resistance up to 2.5 TΩ at ±(5% + 5). Diagnostics include Polarization Index testing, a 10% stepped-voltage profile, and a comparison function, with capacitance measurement to 2 µF and automatic discharge after each test. Auto-ranging, a 5 mA short-circuit current, and USB transfer support routine use.
It suits motor, cable, and switchgear maintenance in industrial and utility settings.
Key Features
- Max Test Voltage=2500V
- Insulation Resistance=Yes
- Polarization Index=Yes
- Charge Current=5mA
- Interface=USB
Specifications
| DC Voltage In | 1000 V |
| AC Voltage In | 750 V |
| Capacitance | 2 µF |
| Max Resistance | 2.5 TΩ |
| Resistance Accuracy | ±(5% + 5) |
| Max IR Test Voltage | 2500 V |
| Insulation Resistance | Yes |
| Test Voltage Accuracy | 0% – 20% |
| Short Circuit Current | 5 mA |
| Charge Current | 5 mA |
| Auto Ranging | Yes |
| Comparison Function | Yes |
| Polarization Index | Yes |
| Step Voltage | Yes |
| Auto Discharge | Yes |
| Interface | USB |
| Data Storage | 999 |
| CAT Rating | CAT IV 600 V |
| Battery | 14.8 V 5200 mAh lithium |
| Weight | 1800 g |
| Dimensions | 238 × 166 × 90.5 mm |
