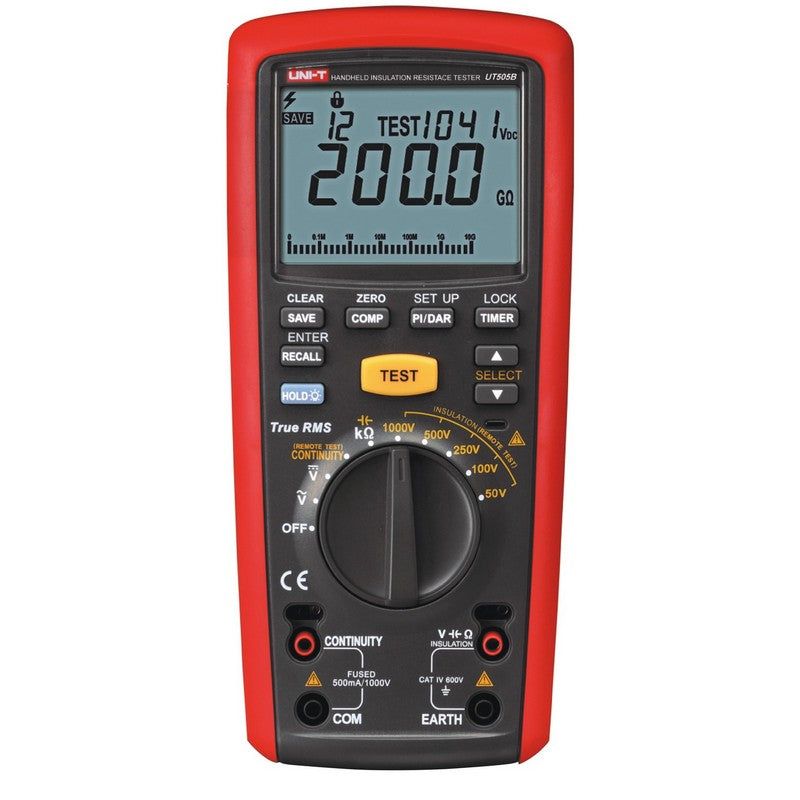

UT505B Advanced Insulation Resistance DMM
$329.99
200GΩ insulation resistance tester with full True RMS multimeter functions, PI/DAR analysis, and test voltages up to 1000V. Combines two essential tools in one for electricians and maintenance technicians testing motor windings, cables, and switchgear.
In stock
Customer reviews
Reviews only from verified customers
No reviews yet. You can buy this product and be the first to leave a review.
UT505B Advanced Insulation Resistance DMM
Product Details
UPC: 6935750550526
Manufacturer: UNI-T
Warranty: 3 years
Literature: https://storage.googleapis.com/uni-tdocuments/Meter%20Datasheets/UT505%20Data%20Sheet.pdf
Equipment Type: Insulation Resistance Meter
The UT505B is the wider-range model in the UT505 pair: a CAT IV 600 V insulation resistance tester and True-RMS digital multimeter in one handheld, reading insulation resistance up to 200 GΩ at test voltages from 50 V to 1000 V to IEC 61557.
Insulation testing covers 0.01 MΩ to 200 GΩ with Polarization Index and DAR diagnostics, stepped-voltage testing, and automatic discharge, and it adds an automatic fuse check that verifies the current-input fuse before a reading is taken. As a 6000-count multimeter it measures AC/DC voltage and resistance, capacitance from 100 pF to 500 µF, frequency, and low resistance from 0.01 Ω to 20 kΩ, with True-RMS sensing and storage for 99 groups.
It suits electrical maintenance, motor and cable testing, and troubleshooting on higher-resistance insulation.
Key Features
- Max Test Voltage=1000V
- Insulation Resistance=Yes
- Polarization Index=Yes
- Charge Current=2mA
Specifications
| Test Voltages | 50 V / 100 V / 250 V / 500 V / 1000 V |
| Insulation Resistance | 0.01 MΩ to 200 GΩ |
| IR Accuracy | ±(1.5% + 5) |
| DC Voltage | 0 to 600 V, ±(2% + 3) |
| AC Voltage | 0 to 600 V, ±(1.5% + 5) |
| Frequency | 45 to 1 kHz, ±(0.1% + 3) |
| Capacitance | 100 pF to 500 µF, ±(5% + 5) |
| Low Resistance | 0.01 Ω to 20 kΩ, ±(1.5% + 3) |
| General Resistance | 0.01 kΩ to 10 MΩ, ±(3% + 3) |
| Display Count | 6000 |
| True RMS | Yes |
| PI / DAR | Yes |
| Step Voltage | Yes |
| Auto Discharge | Yes |
| Data Storage | 99 groups |
| Auto Fuse Check | Yes |
| Compliance Standard | IEC 61557 |
| Safety Rating | CAT IV 600 V |
| Power | 6 × 1.5 V (LR6) |
| Dimensions (W × H × D) | 103 × 225 × 59 mm |
| Weight | 630 g |
