UT505A Basic Insulation Resistance DMM
$229.99
20GΩ insulation resistance tester with full True RMS multimeter functions, PI/DAR analysis, and test voltages up to 1000V. Combines two essential tools in one for electricians and maintenance technicians testing motor windings, cables, and switchgear.
In stock
Customer reviews
Reviews only from verified customers
No reviews yet. You can buy this product and be the first to leave a review.
UT505A Basic Insulation Resistance DMM
Product Details
UPC: 6935750550519
Manufacturer: UNI-T
Warranty: 3 years
Literature: https://storage.googleapis.com/uni-tdocuments/Meter%20Datasheets/UT505%20Data%20Sheet.pdf
Equipment Type: Insulation Resistance Meter

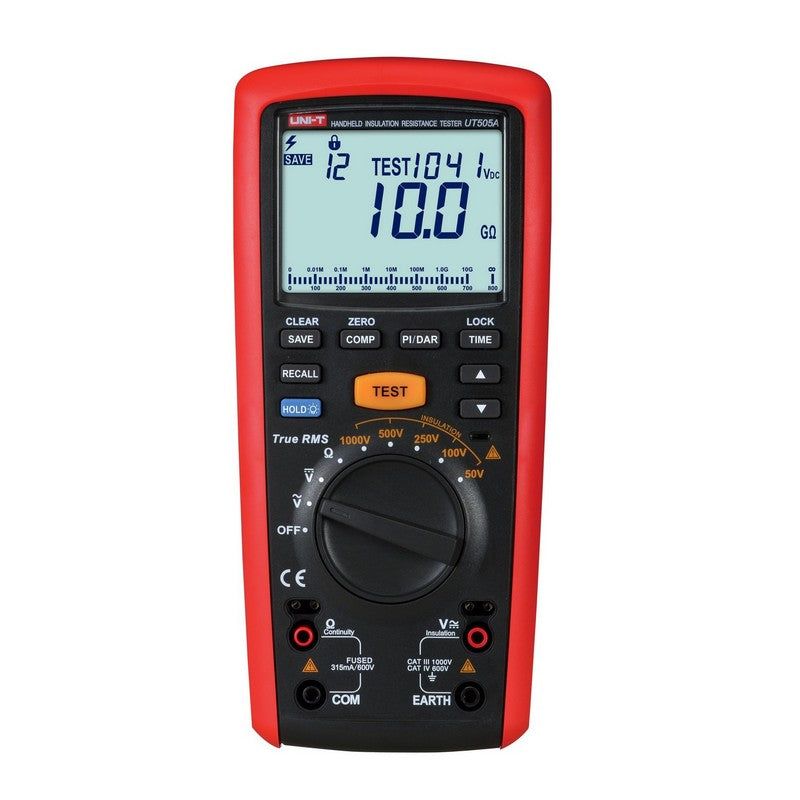

The UT505A combines a CAT IV 600 V insulation resistance tester and a True-RMS digital multimeter in a single handheld, so the tool that confirms a winding is open is the same one that checks its insulation.
It tests insulation resistance from 0.01 MΩ to 20 GΩ at selectable voltages of 50 V, 100 V, 250 V, 500 V, and 1000 V to IEC 61557, with Polarization Index and DAR diagnostics, stepped-voltage testing, and automatic discharge. As a 6000-count multimeter it measures AC/DC voltage and resistance, capacitance from 100 pF to 500 µF, frequency, and low resistance from 0.01 Ω to 20 kΩ. True-RMS sensing and storage for 99 groups round out the set.
It suits electrical maintenance, motor and cable testing, and general troubleshooting where insulation and standard measurements are both needed.
Key Features
- Max Test Voltage=1000V
- Insulation Resistance=Yes
- Polarization Index=Yes
- Charge Current=2mA
Specifications
| Test Voltages | 50 V / 100 V / 250 V / 500 V / 1000 V |
| Insulation Resistance | 0.01 MΩ to 20 GΩ |
| IR Accuracy | ±(1.5% + 5) |
| DC Voltage | 0 to 600 V, ±(2% + 3) |
| AC Voltage | 0 to 600 V, ±(2% + 3) |
| Frequency | 45 to 1 kHz, ±(0.1% + 3) |
| Capacitance | 100 pF to 500 µF, ±(5% + 5) |
| Low Resistance | 0.01 Ω to 20 kΩ, ±(1.5% + 3) |
| General Resistance | 0.01 kΩ to 10 MΩ, ±(3% + 3) |
| Display Count | 6000 |
| True RMS | Yes |
| PI / DAR | Yes |
| Step Voltage | Yes |
| Auto Discharge | Yes |
| Data Storage | 99 groups |
| Compliance Standard | IEC 61557 |
| Safety Rating | CAT IV 600 V |
| Power | 6 × 1.5 V (LR6) |
| Dimensions (W × H × D) | 103 × 225 × 59 mm |
| Weight | 630 g |
