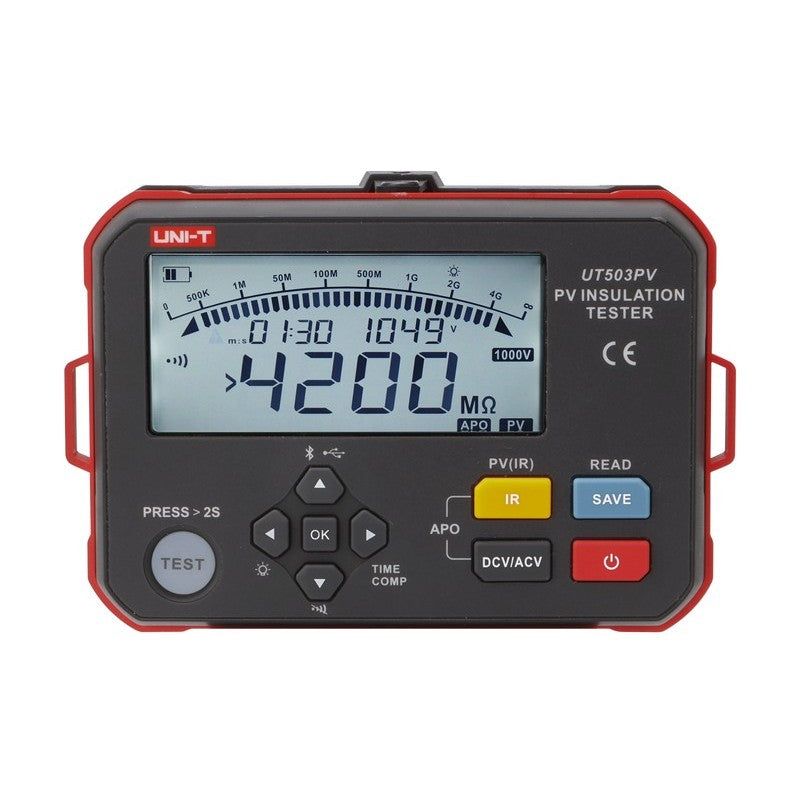

UT503PV Solar Pro PV Insulation Tester
$598.00
Specialized PV insulation tester for solar installers and maintenance crews. Tests string and array insulation resistance per IEC 62446 with dedicated photovoltaic test modes.
In stock
Customer reviews
Reviews only from verified customers
No reviews yet. You can buy this product and be the first to leave a review.
UT503PV Solar Pro PV Insulation Tester
Product Details
UPC: 6935750550304
Manufacturer: UNI-T
Warranty: 3 years
Literature: https://storage.googleapis.com/uni-tdocuments/Meter%20Datasheets/UT503PV_datasheet.pdf
Equipment Type: Industrial Meter
The UT503PV is a photovoltaic insulation tester that measures insulation resistance on live PV systems at up to 1000 V DC, so a string can be checked without taking the array offline or short-circuiting panels. It tests to IEC 62446.
Test voltages are selectable at 125 V, 250 V, 500 V, and 1000 V, with insulation resistance read up to 4000 MΩ at ±(1.5% + 5). DC voltage measures 5 V to 1000 V and AC voltage 5 V to 600 V, both at ±(1% + 4). Short-circuit current stays under 1.5 mA (1.2 mA in PV mode). Stepped-voltage testing, a comparison function, a high-voltage alarm, automatic discharge, and storage for 1000 result sets with USB and Bluetooth transfer support field work. The instrument is rated CAT II 1000 V / CAT III 600 V and sealed to IP54 for outdoor use.
It suits solar installation, commissioning, and operations and maintenance where live-string insulation testing is required.
Key Features
- Max Resistance=4GΩ
Specifications
| Test Voltages | 125 V / 250 V / 500 V / 1000 V |
| Insulation Resistance | up to 4000 MΩ |
| IR Accuracy | ±(1.5% + 5) |
| PV Insulation Resistance (live) | up to 4000 MΩ, ≤ DC 1000 V |
| DC Voltage | 5 to 1000 V, ±(1% + 4) |
| AC Voltage | 5 to 600 V, ±(1% + 4) |
| Short-Circuit Current | < 1.5 mA (IR) / < 1.2 mA (PV IR) |
| Stepping Voltage | Yes |
| Auto Discharge | Yes |
| Compare Function | Yes |
| High Voltage Alarm | Yes |
| Data Storage | 1000 sets |
| Data Communication | USB + Bluetooth app |
| Safety Rating | CAT II 1000 V, CAT III 600 V |
| IP Rating | IP54 (cap closed) |
| Dimensions (L × D × H) | 161 × 117.3 × 63 mm |
| Weight | ≈0.5 kg |
