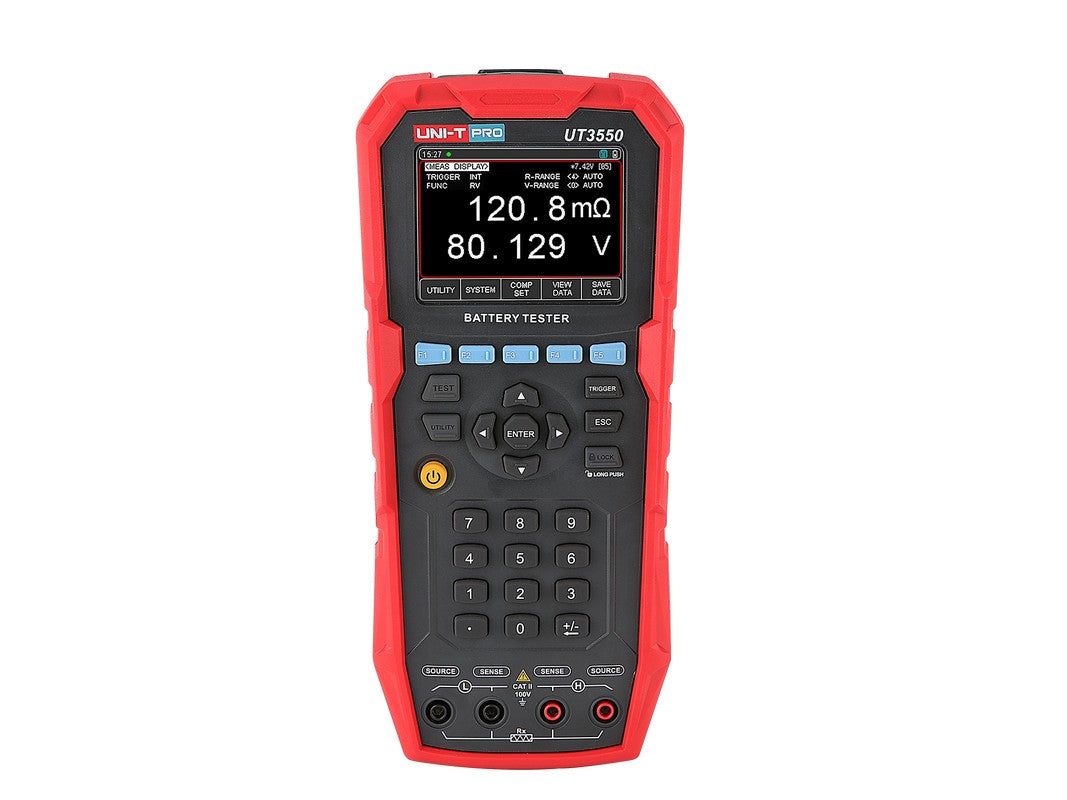

UT3550 Handheld Battery Tester
$1 679.00
Handheld battery tester with AC internal resistance method, 0.1 mΩ–30 Ω range, and 0.5% accuracy. Tests virtually all battery types from small consumer cells to large industrial installations for maintenance, QC, and troubleshooting.
In stock
Customer reviews
Reviews only from verified customers
No reviews yet. You can buy this product and be the first to leave a review.
UT3550 Handheld Battery Tester
Product Details
UPC: 6935750535509
Manufacturer: UNI-T
Warranty: 3 years
Literature: https://storage.googleapis.com/uni-tdocuments/Meter%20Datasheets/UT3550%20Series%20Battery%20Testers%20-%20Data%20Sheet.pdf
Equipment Type: Battery Tester
The UT3550 is a handheld battery tester that measures internal resistance and voltage together using a 4-wire Kelvin connection and 1 kHz AC injection — the method that reveals a weak cell before it fails under load.
It resolves internal resistance from 0.001 mΩ to 30 Ω at ±0.5% and voltage to 100 V at ±0.05%, covering small consumer cells through large industrial battery banks. A 4-wire connection removes lead resistance for accuracy at low ohms, and a comparison function for pass/fail sorting, data logging, a dual display, and USB-C transfer support routine testing.
It suits battery maintenance and quality work on stationary, backup, and industrial battery systems.
Key Features
- Voltage Resolution=0.1mV
- Test Method=AC Injection
Specifications
| DC Voltage In | 100 V (0.0001 V to 100.00 V) |
| Internal Resistance Range | 0.001 mΩ to 30.00 Ω |
| Max Resistance | 30 Ω (0.001 mΩ to 30.00 Ω) |
| Battery Voltage Range | 0.0001 V to 100.00 V |
| Battery Test Frequency | 1 kHz±30 Hz |
| Voltage Resolution | 0.1 mV |
| Measurement Resolution | 0.001 mΩ / 0.1 mV |
| Accuracy | Resistance: ±0.5%rdg±5dgt , Voltage: ±0.05%rdg±5dgt |
| Auto Ranging | Yes |
| Test Method | 4-Wire Kelvin |
| Comparison Function | Yes |
| Data Logging | Yes |
| Programmable | Yes |
| Fastest Test Rate | 1/s manual range |
| Dual Display | Yes |
| Interface | USB-Type-C, USB-Device |
| Data Storage | 500 groups internal, CSV export |
| IP Rating | IP65 |
| Display Size | 3.5in |
| Display Type | Dual Display LCD & OLED |
| Battery | 7.4 V 2000 mAh Li-ion |
| Battery Life | Approx. 5h (20% brightness) |
| Charging Time | < 5 hours |
| Ambient Temperature Range | 0 °C to 40 °C |
| Ambient Humidity | 10 to 80%RH |
| Storage Temperature | -20 °C to 60 °C |
| Battery Test Method | AC Injection |
