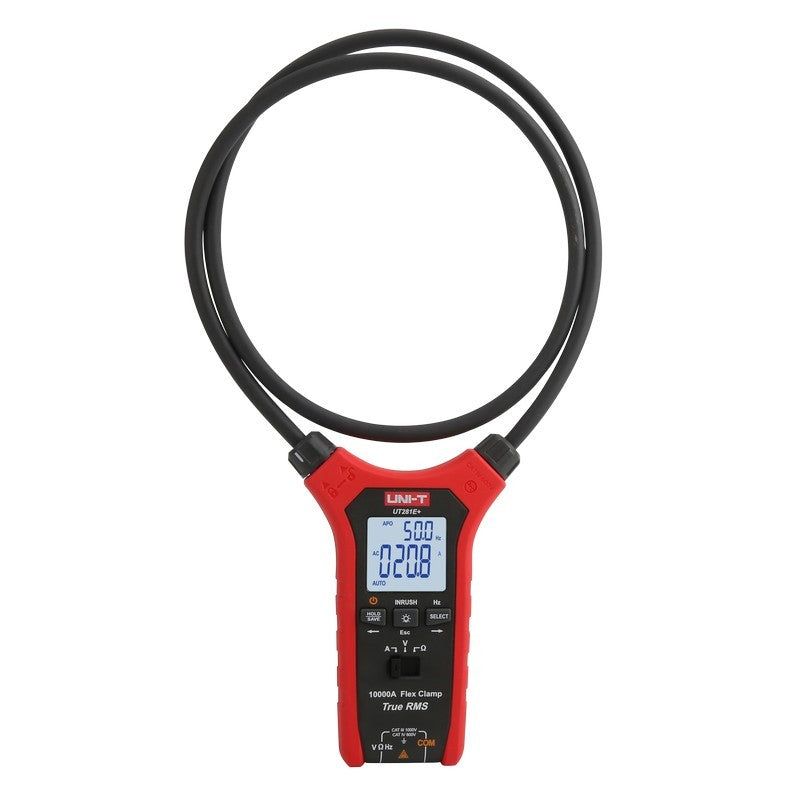

UT281E+ 10,000A Flexible AC Current Meter
$199.00
9.99kA flexible AC clamp meter, CAT III 1000V / CAT IV 600V. Reliable current measurement for electrical professionals.
In stock
Customer reviews
Reviews only from verified customers
No reviews yet. You can buy this product and be the first to leave a review.
UT281E+ 10,000A Flexible AC Current Meter
Product Details
UPC: 6935750528204
Manufacturer: UNI-T
Warranty: 3 years
Literature: https://storage.googleapis.com/uni-tdocuments/Meter%20Datasheets/UT281E%2B%20Data%20Sheet.pdf
Equipment Type: Clampmeter
The UT281E+ is a flexible-coil AC current meter that wraps around large or awkward conductors — busbars, cable bundles, and tight gear — to measure AC current up to 9.99 kA. It is rated CAT III 1000 V / CAT IV 600 V and True-RMS, with inrush-current capture for motor and transformer start-up.
A dual display shows two values at once, voltage measures to 1000 V and resistance to 60 MΩ, AC current frequency covers 10 Hz to 1000 Hz, and 999 result sets store on-board. The 1000 mm flexible coil and AA-battery power keep it portable.
It suits electricians and maintenance crews measuring high currents on large or hard-to-reach conductors.
Key Features
- AC V / A=1000V / 9.99kA
- DC V / A=1000V
- Jaw Opening=1000mm
- True RMS=Yes
Specifications
| DC Voltage In | 1000 V |
| AC Voltage In | 1000 V |
| AC Current In | 9.99 kA |
| AC Current Frequency | 10 Hz to 1000 Hz |
| Frequency Range | 10 Hz to 30 kHz |
| Max Resistance | 60 MΩ |
| Inrush Current | Yes |
| True RMS | Yes |
| Continuity | Yes |
| Dual Display | Yes |
| Data Communication | N/A |
| Data Storage | 999 sets |
| CAT Rating | CAT III 1000 V , CAT IV 600 V |
| Jaw Opening | 1000 mm |
| Display Type | Dual LCD |
| Battery | 3× AA |
| Frequency Response | 45 Hz to 500 Hz |
